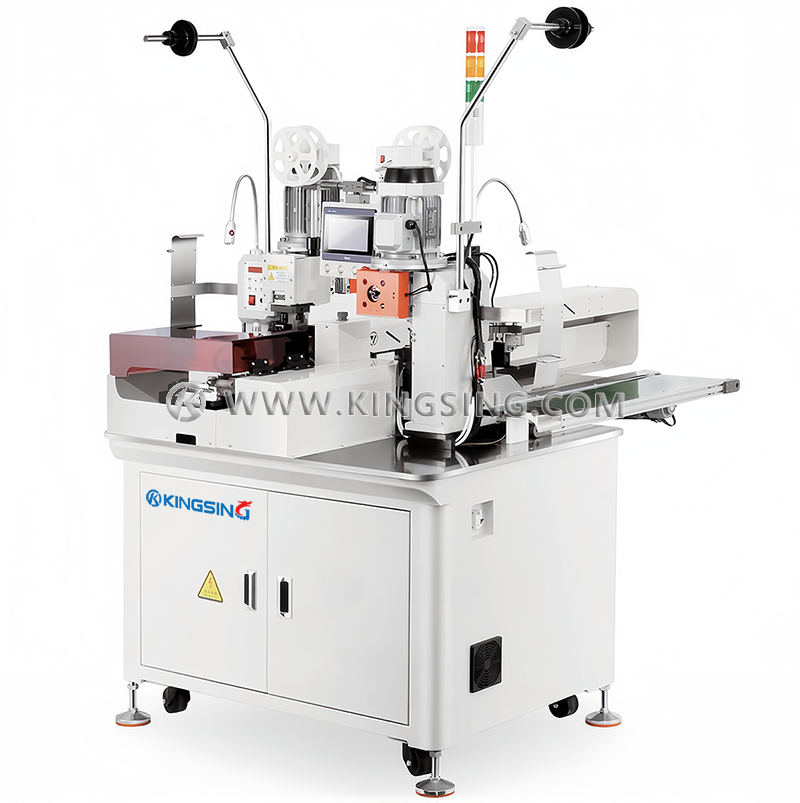

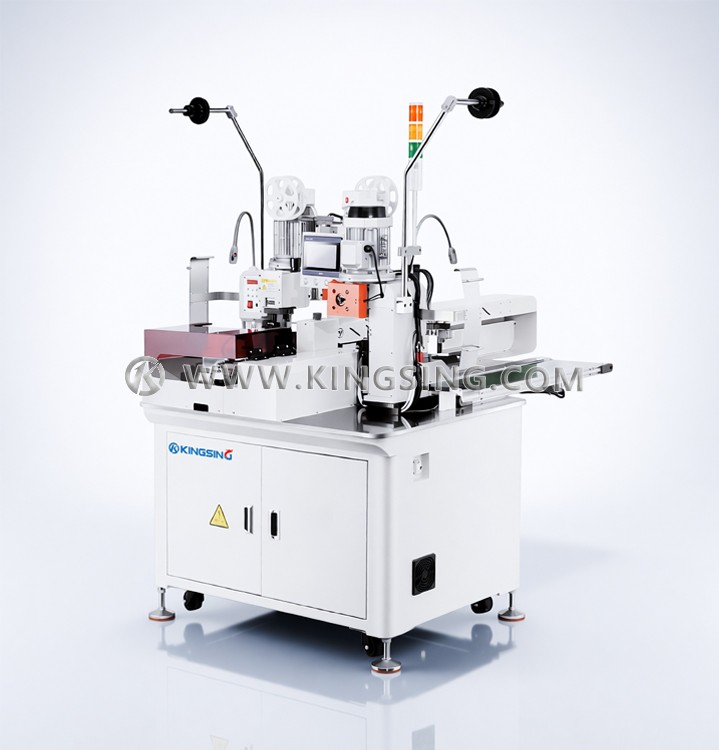

Automatic Ribbon Cable Stripping and Crimping Machine

This automatic ribbon cable processing machine is specifically engineered for manufacturing flat ribbon cables with precision and efficiency. It integrates four essential operations into a single automated system: cutting to length, wire stripping, conductor splitting, and dual-end terminal crimping.

The machine features advanced servo motor control with five built-in servo motors driving all major mechanical components, ensuring exceptional accuracy and repeatability. It includes ribbon cable flipping functionality and supports independent terminal orientation control for both wire ends, allowing for customized connector positioning.

This versatile machine can process not only flat ribbon cables but also ordinary electronic wires, and is capable of simultaneously processing multiple electronic wires, significantly increasing production capacity. This multi-wire processing capability makes it ideal for high-volume production environments where efficiency and throughput are critical.

Equipped with a mechanical arm feeding system for precise length control, the machine delivers high accuracy with customizable pulling jaw stroke lengths. The integrated conveyor belt system efficiently transports finished products, and when combined with the optional full-enclosure safety guard, products are automatically conveyed outside the protective housing.

Built-in detection functions include wire missing alarm, terminal missing alarm, and air pressure abnormal alarm to ensure production quality and safety. The optional terminal crimp force monitor provides real-time monitoring and quality assurance by measuring and recording crimping force parameters to maintain consistent connection integrity.

Ideal for electronics manufacturing, telecommunications equipment production, and industrial cable assembly applications, this machine significantly reduces manual labor while maintaining consistent quality standards in high-volume production environments.
