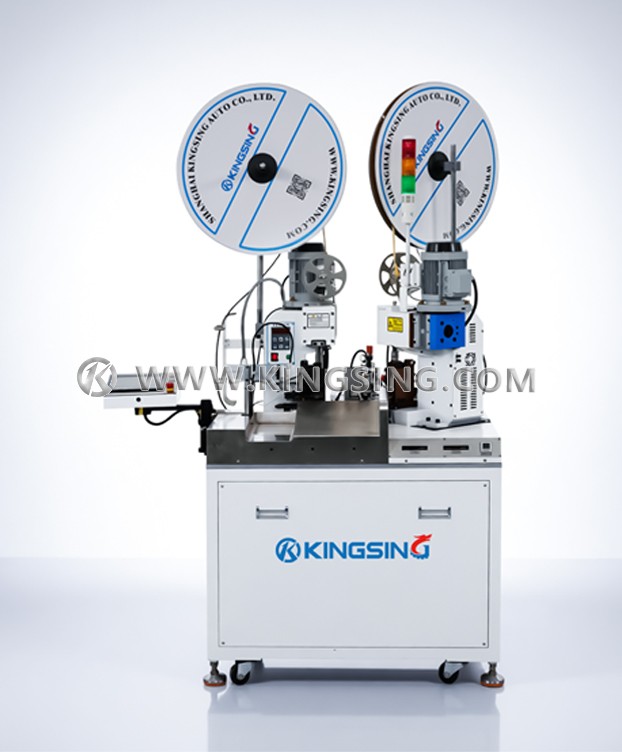

Two-sided Terminal Crimping Machine

  • Model:KS-T5562
  • Net. Weight:
  • Dimension:
  1. This is a general-purpose double-sided automatic crimping machine, which integrates the functions of wire cutting, stripping, and crimping terminals. It is suitable for crimping various cross-feed terminals, direct-feed terminals, and flag-shaped terminals. This machine adopts four-wheel wire feeding, which can prevent the wire from slipping, and the length of the cutting wire is accurate. The gap between the wire feeding wheels can be precisely adjusted through the handle with scale. When processing long wires, you can also choose a conveyor belt, which can put the processed wires straight and neatly into the receiving tray.

  2. The crimping machine is integrally formed of ductile iron, which has strong rigidity and stable crimping height. It can be equipped with a crimping fprce monitor to monitor the crimpingforce curve changes of each crimping process in real time. When the crimping force is abnormal, it will automatically alarm and stop. The terminal machine adopts standard OTP bayonet applicator with 30mm stroke by default, supports cross-feed applicator, direct-feed applicator, flag-shaped applicator, etc., and can also customize the model with 40mm stroke to install various European applicators.

  3. Adopting the concept of flexible design, one machine can process a variety of different products. When replacing wires and terminals, you only need to replace the corresponding wire inlet conduit and crimping applicator. Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program memory function can save the processing parameters of different products in the database, when switching products, you can call out the corresponding processing parameters with one key, saving debugging time.

Download: (1)

Applicable wire diameter: AWG28~16 (0.1~1.5mm2)

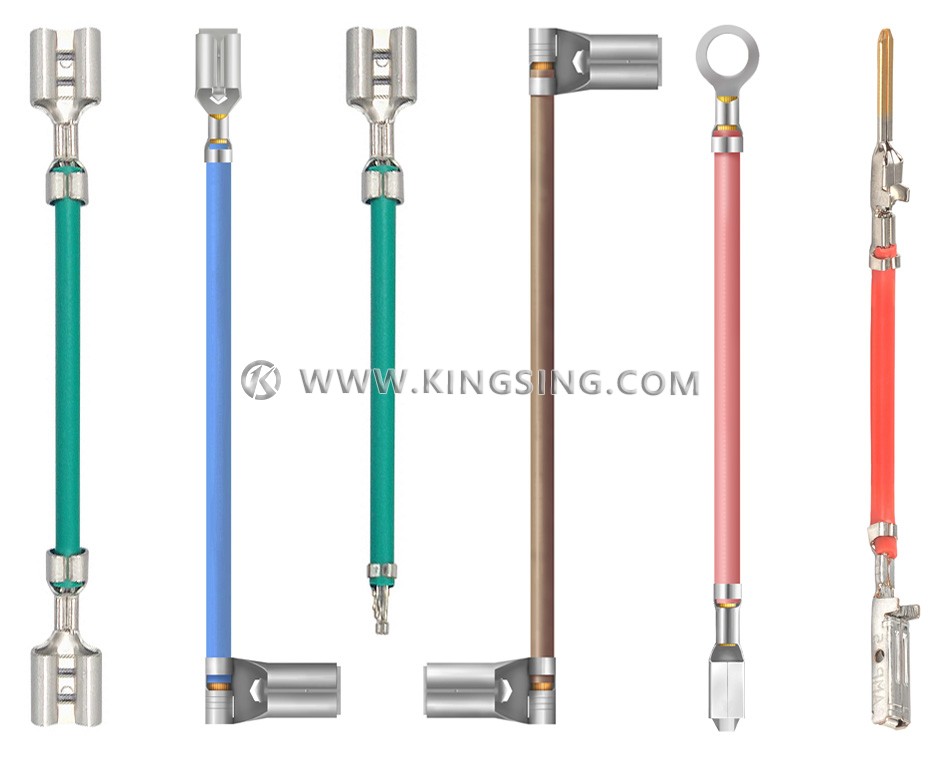

Applicable terminals: cross-feed terminal, direct-feed terminal, flag terminal

Cutting length: 50~9999mm (can be customized)

Stripping length: ≤9mm

Cutting tolerance: ±(0.5+L*2‰)mm L=cutting length

Crimping forcre: 2T

Crimp stroke: 30mm (40mm stroke can be customized)

Production efficiency: 3000~4000 pieces/hour

Operation interface: color touch screen

Air pressure: 0.5~0.7Mpa

Power supply: 220V 50/60Hz

Net weight: 400kg

Dimensions: 1000*700*1550mm

Optional configuration: long wire conveyor belt, crimping force monitor, safety shield

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
