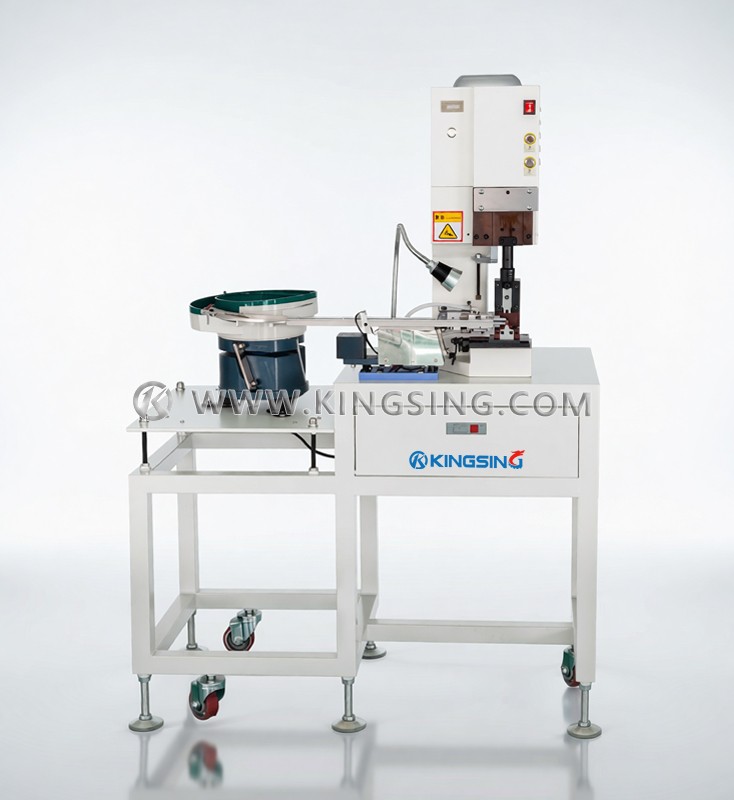

Automatic Loose Terminal Crimping Machine

  • Model：KS-T902
  • Net. Weight：
  • Dimension：
Online Inquiry

The terminal crimping machine is specially designed for loose-packed terminals, it also process roll terminals.
This machine can feed bulk terminals to crimping die automatically thanks to the vibration plate,

  • it comes with minimum number of movement parts avoid wear and replacements,

  • maximum torque, minimum vibration,

  • high stability assuring noise-free working environment.

Download: (1) (2)

Available Terminals: various loose terminals
Crimping Die: General OTP Die
Max. Crimping Force: 1500Kg (2000Kg and 2500Kg is for choice)
Stroke Distance: 30mm (40mm is for choice)
Motor Power: 550W
Power Supply: 220V/50Hz 110V/60Hz
Net. Weight: 35Kg
Dimension: 280 × 250 × 600mm

Note：

  • In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
