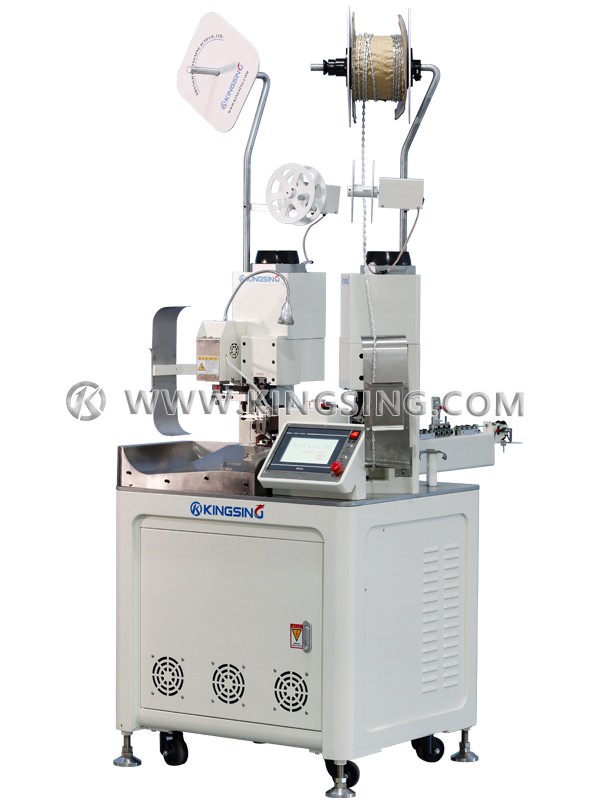

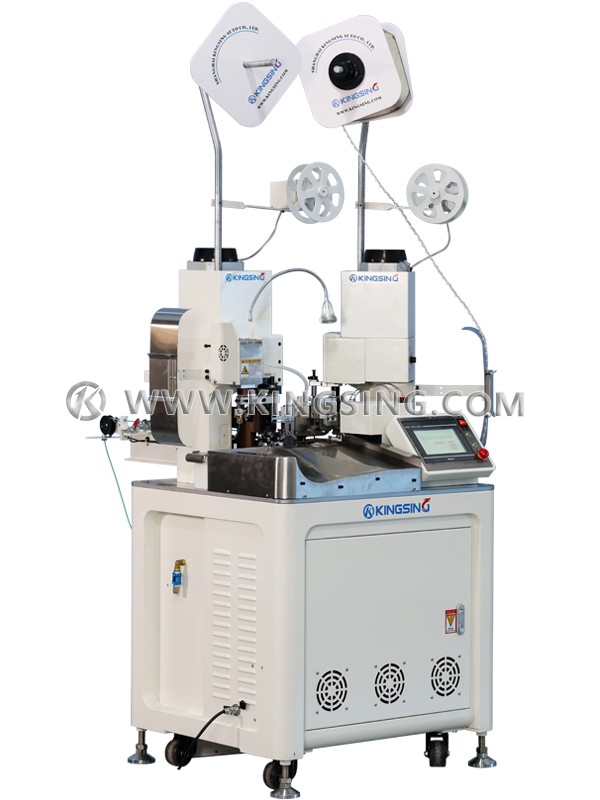

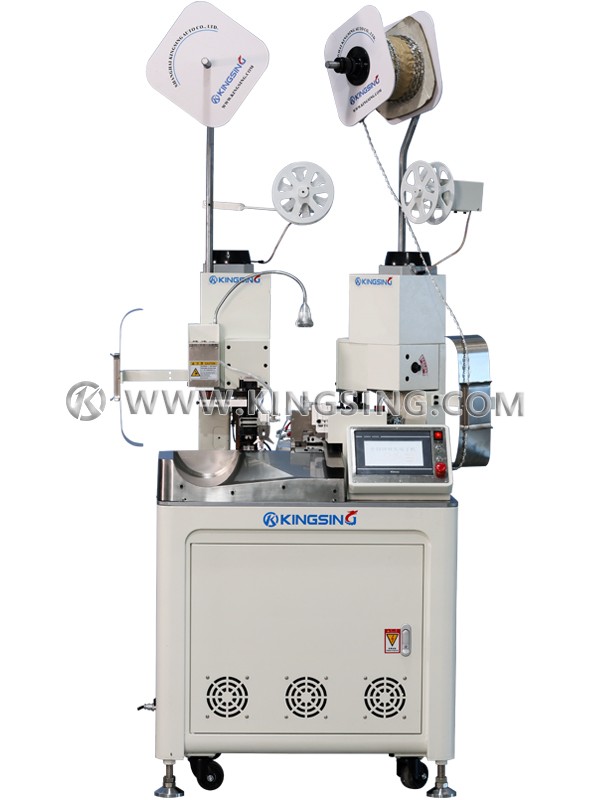

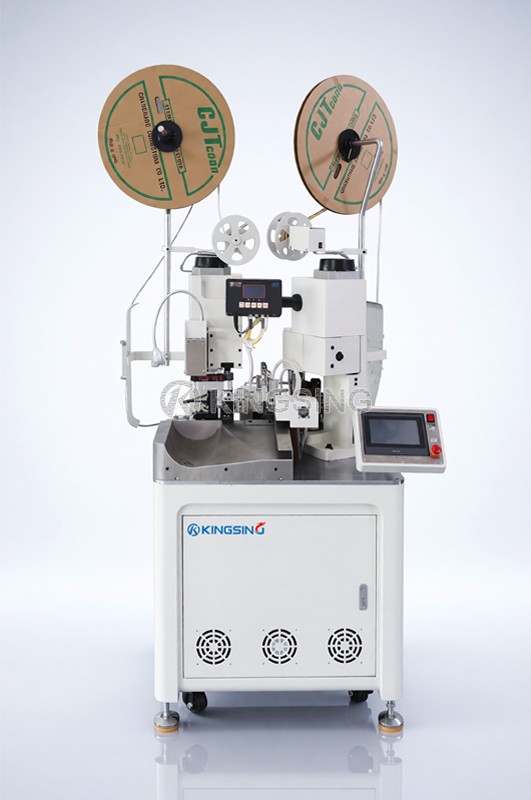

This multifunctional double-sided automatic terminal crimping machine integrates wire cutting, stripping, and terminal crimping capabilities in a single versatile system. Designed to process various terminal types including cross-feed, direct-feed, and flag-shaped terminals, this machine also accommodates bulk terminals through automatic vibrating plate feeding systems for enhanced production efficiency.
Featuring triple wire straighteners at the inlet and a four-wheel wire feeding mechanism, the machine prevents wire slippage while ensuring accurate cutting lengths and precise terminal crimping positions. Optional conveyor belt systems enable straight, organized placement of processed wires into receiving trays, particularly beneficial for longer wire applications.
Optional crimping force monitoring provides real-time pressure curve analysis with automatic alarm and stop functions when parameters deviate from specifications. Advanced CCD visual inspection systems can be integrated to monitor terminal appearance post-crimping, ensuring consistent product quality throughout production runs.
Built on flexible design principles, this machine accommodates multiple product variations through simple fixture changes when switching between different wire and terminal specifications. The intuitive color touchscreen interface features comprehensive program memory functions, enabling one-touch parameter recall for rapid product changeovers and minimized setup time.
| Model | KS-A208D | KS-A208E | KS-A208F |
|---|---|---|---|
| Applicable Wire Size | AWG30~16（0.05~1.5mm²） | AWG28~14 （0.1~2.5mm²） | AWG28~10 （0.1~6.0mm²） |
| Terminal Machine Output | 2T | 2T | 3T |
| Applicable Terminals | Cross-feed terminal, direct-feed terminal, flag terminal | ||
| Cutting Length | 45~9999mm | ||
| Stripping Length | ≤10mm | ||
| Cutting Tolerance | ±(0.5+L*2‰)mm L=cutting length | ||
| Crimp Stroke | 30mm (40mm stroke customizable) | ||
| Operation Interface | Color touch screen | ||
| Air Pressure | 0.5~0.7Mpa | ||
| Power Supply | 220V 50/60Hz (customizable) | ||
| Net Weight | 360kg | ||
| Dimensions | 700*800*1500mm | ||
| Optional Configuration | Terminal crimp force monitor, CCD vision inspection system, servo crimping station (programmable crimping height), conveyor belt for long wire processing, full safety enclosure (optional door-mounted emergency stop), automatic wire prefeeder, bulk terminal vibratory feeding system, customized solutions available upon request | ||
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
