Fully Servo 2-sided Aviation Terminal Crimping Machine

  • Model:KS-T303V2
  • Net. Weight:
  • Dimension:

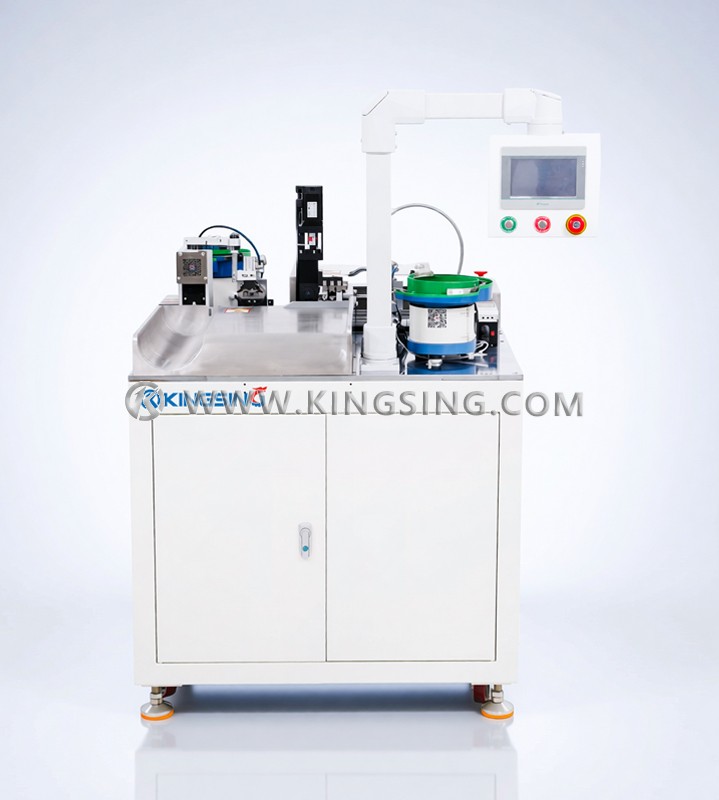

KS-T303V2 is especially designed for crimping loose aviation terminals, it adopts two ends cutting, stripping and terminal crimping, all required processing parameters such as cutting depth, cutting length, stripping length and crimping depth can be set in and saved in the LCD touch screen. It adopts vibration disk feeding mode to feed the loose terminals, reliability and top production performance coupled with multiple function are the features that make this automatic crimping machine such a compelling product.

  • Stable performance and low failures;

  • Reasonable space design and centralized functions;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Modularized structure design and mature controlling system;

  • Built-in motor, beautiful appearance, equipped with universal casters, easy to move;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Stable work, large output, and overload protection function;

  • Low noise, low energy consumption, no pollution, and small floor space;

  • High-precision servo motor, machine control is more accurate and stable, and the service life is longer;

  • 7-inch touch screen, digital and graphical control interface, more intuitive;

  • The stripping and crimping parameters can be adjusted in the program, saving the debugging time;

  • With program memory function, if the terminal and wire need to be changed, you only need to switch to the corresponding program number, no need to adjust repeatedly, improve the efficiency;

  • The machine body is made of high-strength thick steel plate with precise dimensions to ensure the stability of crimping;

  • Optional crimping force monitoring system, vertical wire pre-feeder and long wire conveyor belt, etc.;

  • With the functions of lack of wire detection, terminal crimping detection, low air pressure detection, etc.

Download: (1)

Function: Wire cutting, stripping, terminal crimping

Capacity: 1800 pcs/hour (Length <=150mm)

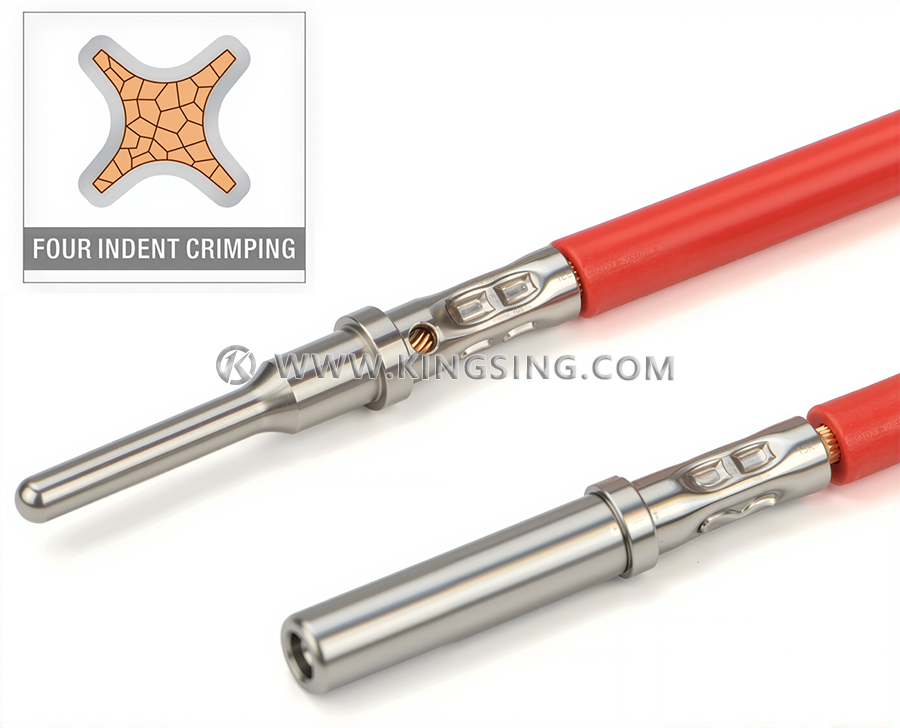

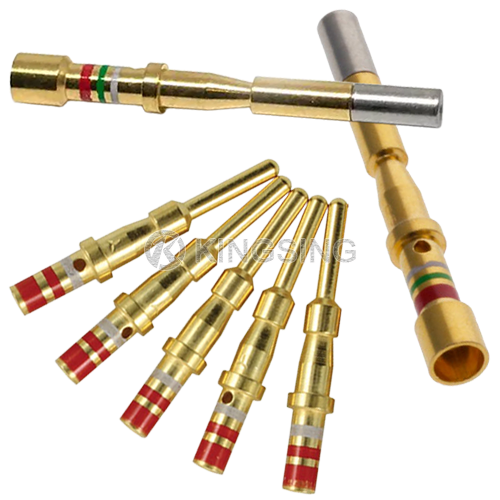

Applicable Terminal: Loose aviation terminals

Terminal Feeding: Vibrator feeding system

Cutting Length: 60~9999.9mm

Stripping Length: Max.15mm

Cutting/Stripping Accuracy: ±(Length×0.2%)

Crimping Force Standard: 1.5TON

Rated Power: 1KW

Display Mode: 7-inch high-definition LCD color touch screen

Work Voltage: AC220V/50Hz Single Phase

Air Pressure: 0.5~0.7MPa (Must be clean, dry and stable compressed air)

Net Weight: 300KG

Dimension (L×W×H): 980×900×1600mm

Control Mode: MSP430E microcontroller, 165NA/MIPS working mode, 5US standby wake-up, high-speed computing

Detection Device: 1.Lack of wire 2. Air pressure detection 3. Terminal crimping detection 4. Machine is abnormal 5. Total quantity reached

Optional Parts: 1.OTP applicator and blades 2. Vertical wire pre-feeder 3. Reel type wire pre-feeder 4. Long wire conveyor belt 5. Crimping force monitor


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
