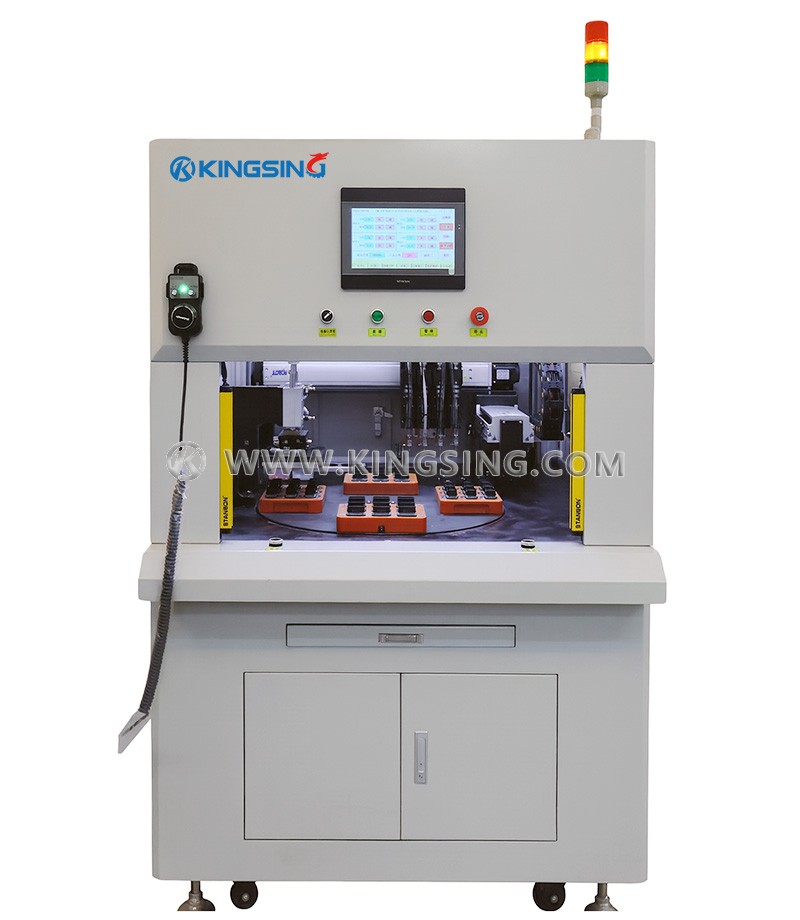

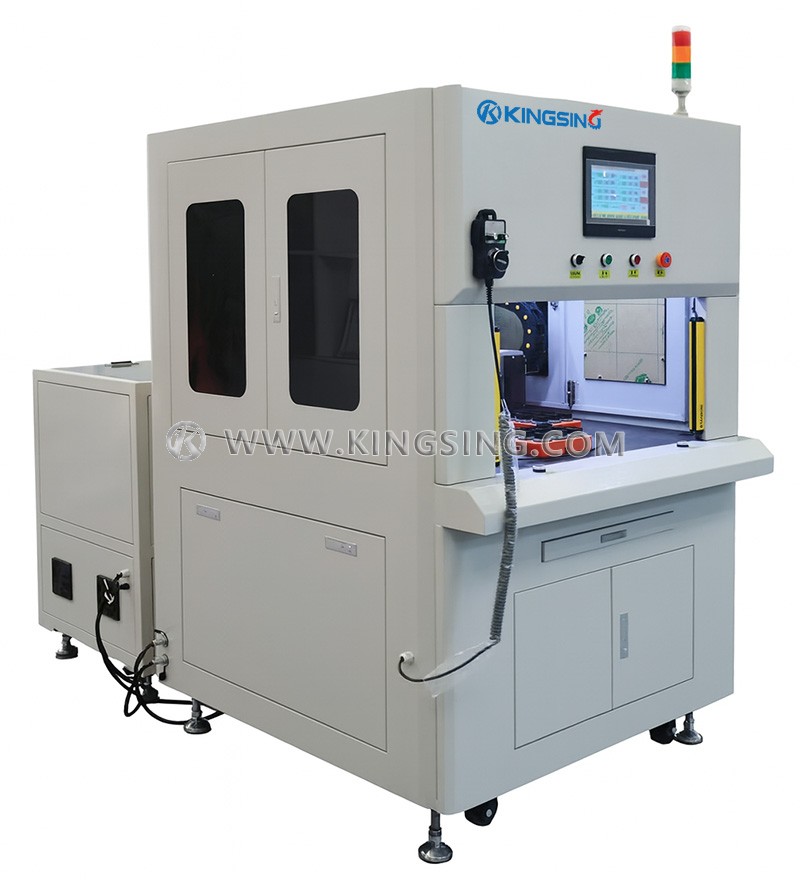

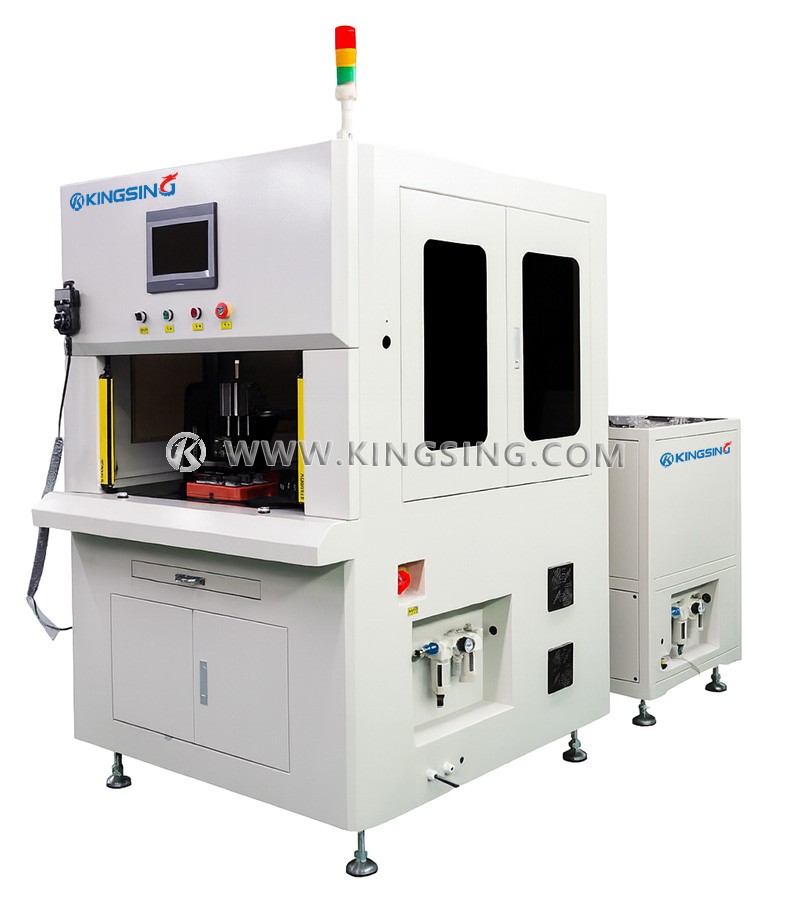

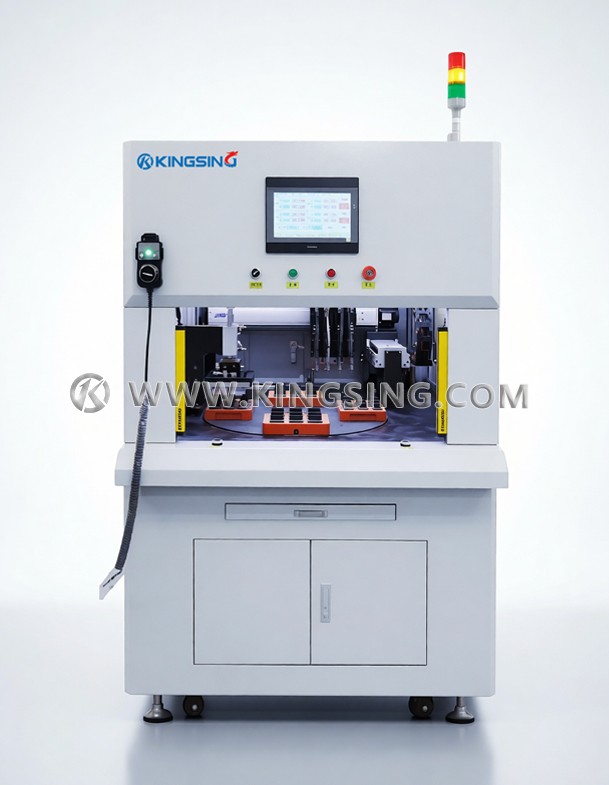

Multi-Station Blind Seal Assembly Machine

  • Model:KS-T527C
  • Net. Weight:
  • Dimension:

This multi-functional automotive connector blind plug insertion machine is specifically designed for automated assembly of wire harness connectors. It provides precise insertion of various types of blind plugs and blind seals into automotive connectors with exceptional accuracy and consistency.

The machine features an innovative 4-station turntable structure with built-in feeding systems for four different blind plug types. Users can freely select which blind plug to insert through the program interface, offering maximum flexibility for diverse production requirements.

blind seal insertion

Equipped with high-level automation and carrier circulation production function, this equipment significantly enhances manufacturing efficiency and throughput in automotive production lines. While one station executes blind plug insertion, the corresponding station can simultaneously perform loading and unloading operations.

The secondary pressing function enables the machine to press all blind plugs to specified depths after insertion completion, greatly improving insertion depth consistency. This feature ensures uniform quality across all assembled connectors.

Excellent compatibility accommodates multiple blind plug types with different specifications, shapes, and materials, making it suitable for various production scenarios and connector configurations. The user-friendly visual operation system enables easy control with functions including single-step operation, reset, timing, detection, and parameter settings.

Safety features include comprehensive protective devices and stable equipment design, ensuring secure operation in industrial environments while maintaining consistent performance and reliability for high-volume automotive manufacturing applications.

Download: (1)
Max. Blind Plug Types4 different blind plugs (customizable)
Working Stations4 stations
CCD DetectionOptional
Automatic LoadingOptional
Automatic UnloadingOptional
Power2000W
Air Pressure0.5~0.8 MPa
Power Supply220V (customizable)
Dimensions1860 × 1100 × 1680 mm
Net Weight400 kg
Important Notes:
  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
