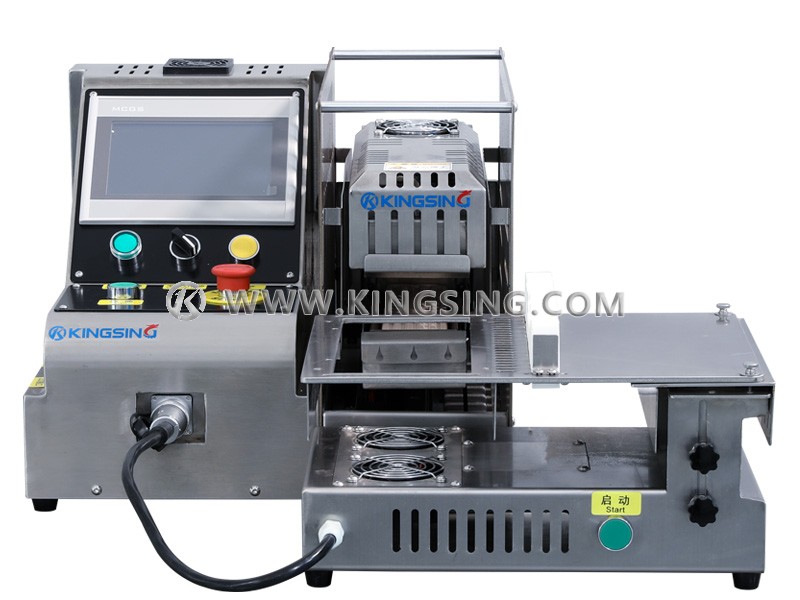

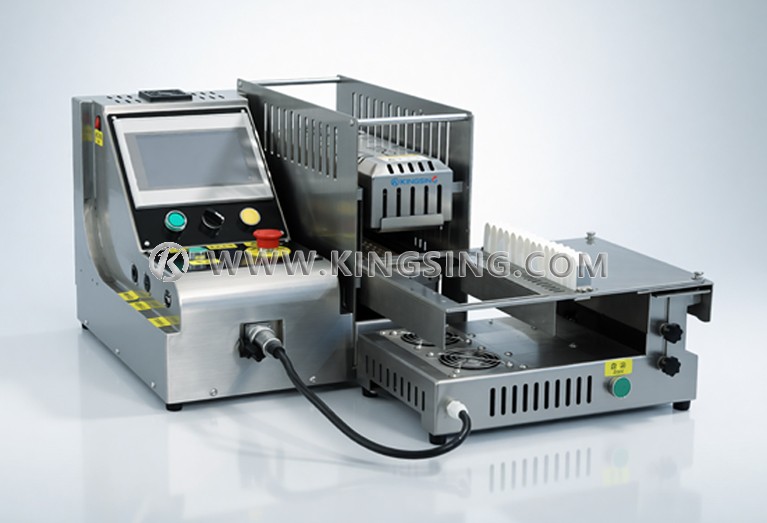

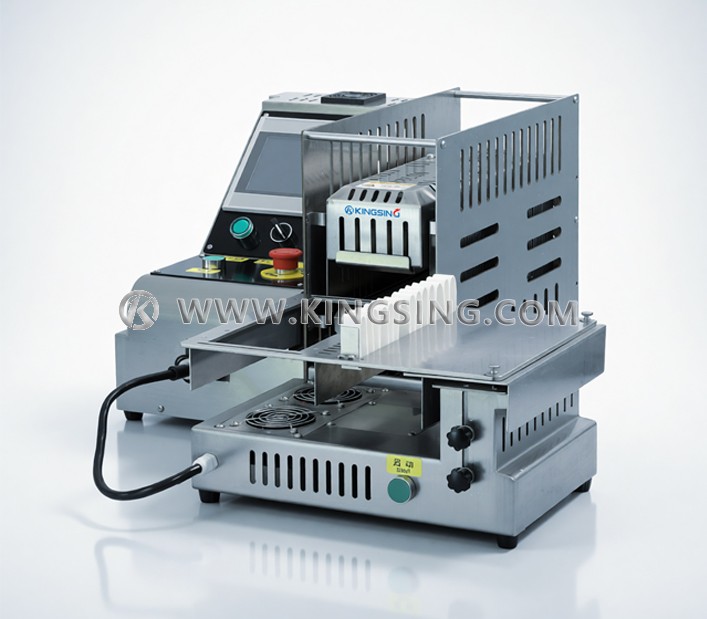

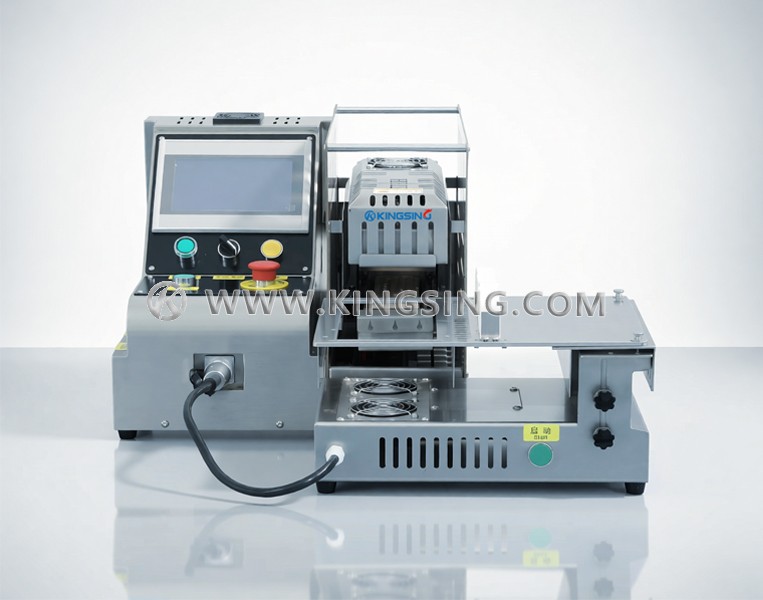

Telescopic Shrinkable Tube Heating Machine

  • Model:KS-H60M
  • Net. Weight:
  • Dimension:430×435×370mm

This is a general-purpose heat shrink tube heating machine that can process multiple wires in batches at the same time. The fixture for fixing the wire can be customized according to the product, whether the heat shrinkable tube is located in the head or the middle, the machine can easily handle it. There are ceramic infrared heating plates on the upper and lower sides of the heating chamber, which can ensure that the heat shrinkable tube is heated evenly.


The heating chamber adopts a telescopic design, which automatically retracts after the heating is completed, it is convenient for the operator to take and pay off the wire. The wire fixture can be customized according to your product, it can precisely limit the position of the heat-shrinkable tube on wire.

Color touch screen opertation interface, parameter settings are intuitive and easy to understand. It supports 485, network port communication, can be connected with MES system to realize intelligent production.

Download: (1)

Max. Temperature: 570℃ (ceramic heater)

Heat Area: 60×240mm

Max. Tube Length: 60mm

Power Supply: 220V 50/60Hz

Power Rating: 1800W

Net. Weight:

Dimension: 430×435×370mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
