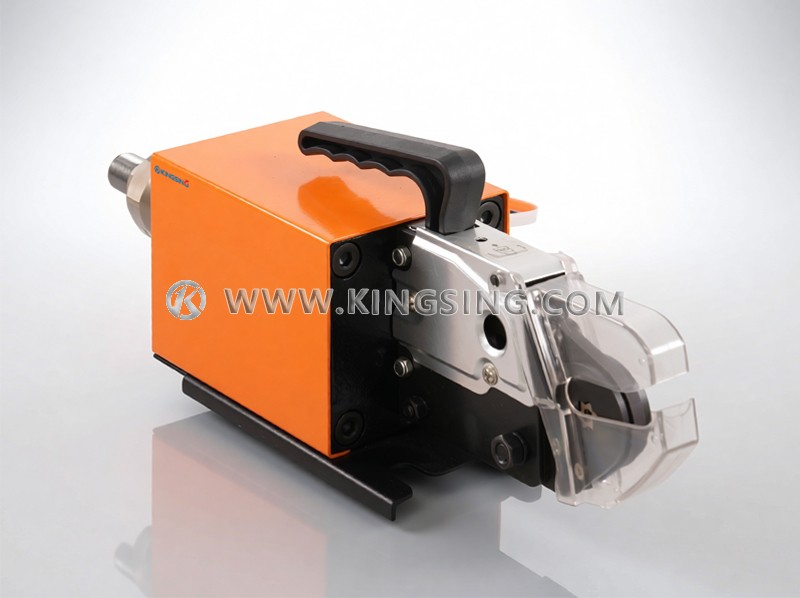

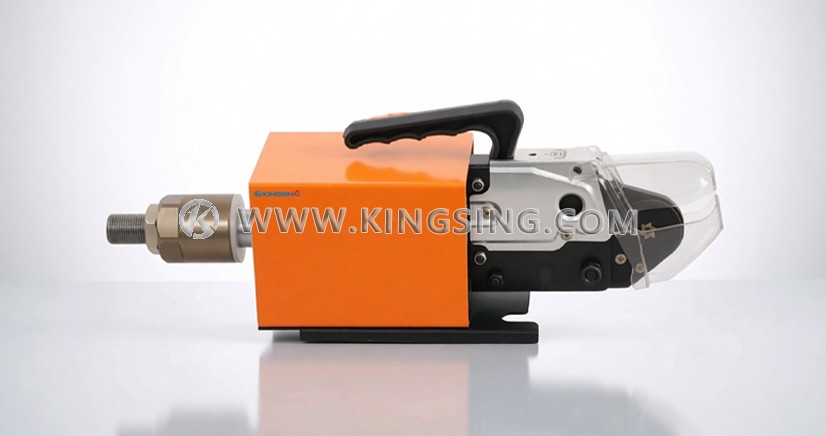

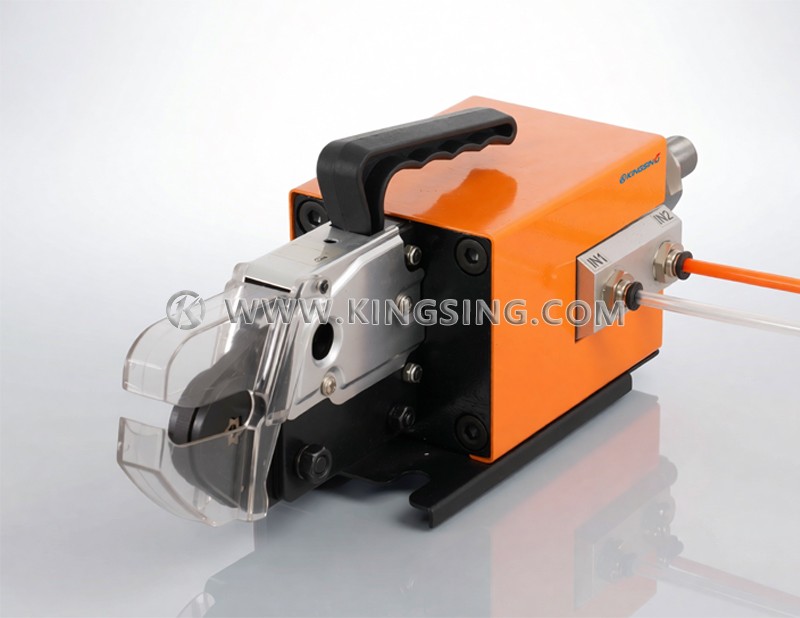

This pneumatic terminal crimping machine is specifically designed for processing tubular insulated terminals without requiring electrical connection. Operating solely on compressed air, it delivers reliable and consistent crimping performance in various industrial environments.
The machine features an innovative hexagonal change-free crimping die system that enables flexible processing of different terminal sizes without die replacement. This design significantly improves operational efficiency and reduces downtime in production environments.

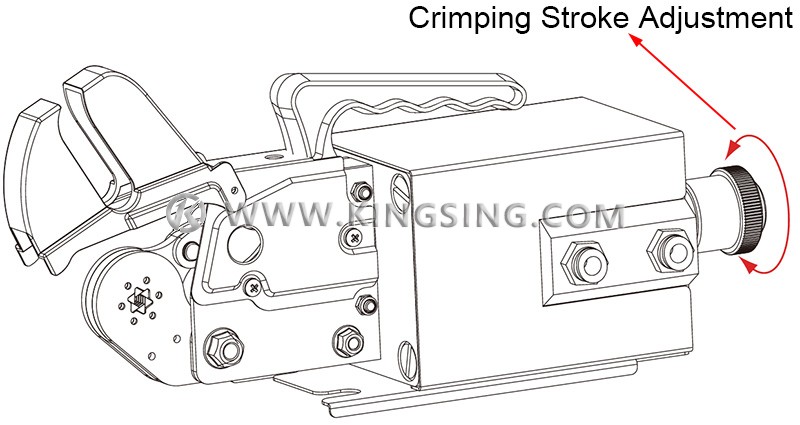

Suitable for crimping tubular insulated terminals ranging from 0.25 to 6mm², the machine offers stepless adjustment capabilities for precise crimping size control. The hexagonal crimping shape ensures excellent appearance quality and superior pulling force resistance.
With its compact design and pneumatic operation, this crimping tool is ideal for electronics manufacturing, automotive wiring harness production, and general electrical assembly applications where reliable terminal connections are essential.
| Terminal Type | Tubular Insulated Terminal, Ferrules |
| Applicable Wire Diameter | 0.25–6 mm² |
| Maximum Pressure | 13.5 KN |
| Crimp Shape | Hexagonal |
| Terminal Size | L2 ≤ 12 mm
|
| Air Pressure | 0.6–0.8 Mpa |
| Net Weight | 5.5 kg |
| Dimensions | 260 × 120 × 140 mm |
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
