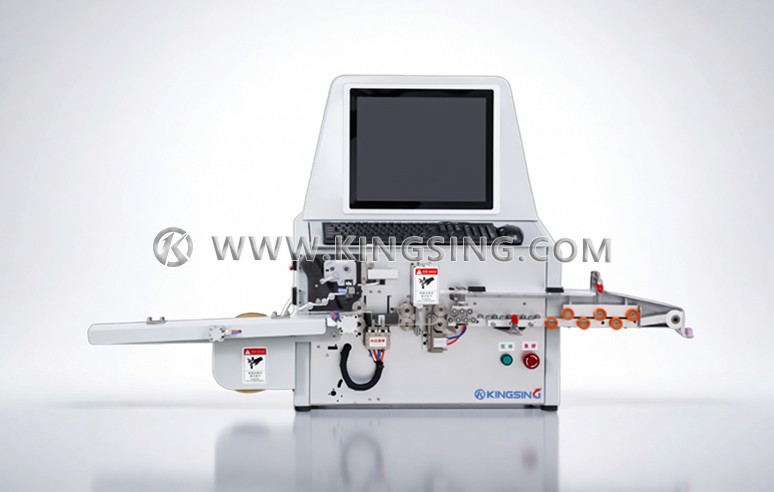

Secondary Wire Intelligent Equipment

  • Model:
  • Wire Size:
  • Net. Weight:
  • Dimension:
  • Control mode: All-in-one computer, PC software control

  • Input mode: Direct input from PC software or import from Excel

  • Wire stripping function: Wire stripping length and half-stripping size can be adjusted by software, and the first end of the wire can be crushed (bent)

  • Lack of material protection function: lack of wire, lack of number tube, lack of ribbon, low air pressure, the system automatically detects instantly, protects the equipment from stopping and prompting the status

  • Fault protection function: failure to remove the number tube, tube insertion jam, wiring channel blockage, wire feeding module jam protection detection function, equipment shutdown and indication

  • Execution stop: manual emergency stop and software stop function

  • Wire collection device: the finished wire of the number tube is collected by the wire collection slot, which is convenient for wire harness transfer and identification

  • Cooling method: forced air cooling

Number of number tubes: 20mm or 30mm (other tube lengths need to be customized)

Available wires: 1.5mm2, 2.5mm2 national standard conventional BVR insulated wires, insulation diameter ±0.1mm2

Wire length: 1mm2, 1.5mm2 (extended length needs to be customized)

Cutting length: 150mm~20000mm

Speed: 600 wires/hour

Power supply: AC 220V/50HZ

Power rating: 1000W
