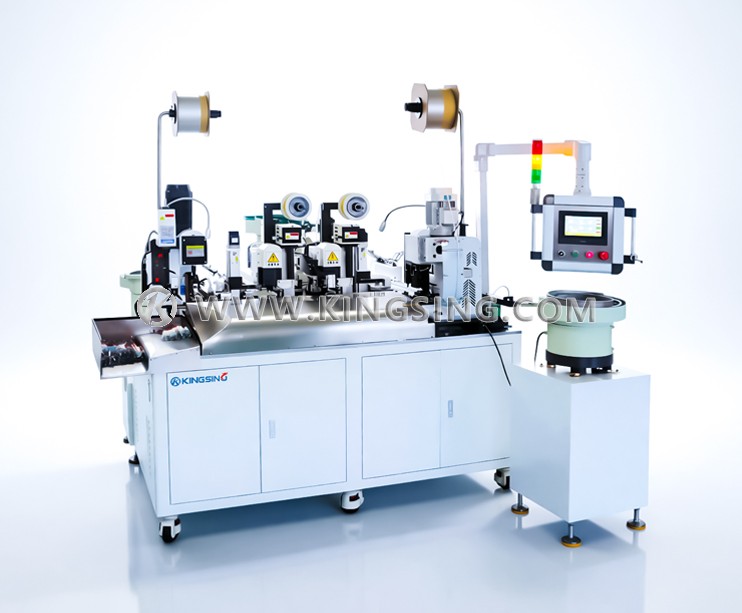

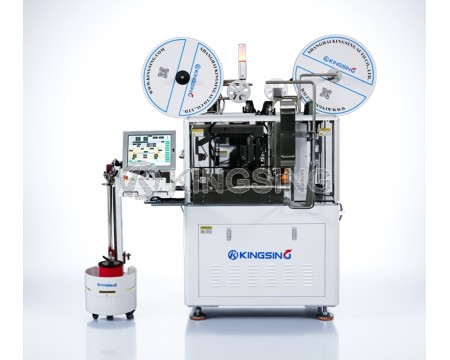

Automatic Sleeve and Sheath Double-headed Copper Tape Splicing Terminal Machine

  • Model:KS-C221M
  • Net. Weight:
  • Dimension:
  1. This is a multi-functional fully automatic copper tape machine, mainly used for connecting horizontal electronic components such as resistance wires and fuses with electric wires. It can feed two wires at the same time, and each wire has an independent wire feeding mechanism and wire cutting and stripping mechanism. , the wire is cut according to the specified length and stripped at both ends, the mutual splicing of the resistance wire and the wire is completed automatically, and a sleeve is automatically put on the wire.This machine contains 2 sets of terminal crimping stations, the other end of the wire can crimp the terminal and automatically wear the insulating sheath, and the insulating sheath is automatically fed through the vibrating plate. Each functional module can be turned on or off freely in the program, for example, no sleeve can be worn, or the other end can only be stripped without crimping the terminal.

  2. The resistance wire can be installed in a coil or in bulk. The bulk resistance wire can be automatically fed through the vibrating disc, and the length of the resistance wire pin can be automatically cut according to the required size. The pins on both sides of the resistance wire are spliced by two independent copper tape machines, and the two wires are also processed by a separate feeding mechanism and stripping mechanism, so the diameters of the two wires can be different. Two servo-type The splicing height can be set individually for the copper tape machine.

  3. The copper tape splicing mechanism is driven by a high-precision servo motor, and the copper tape machine is integrally formed with ductile iron. The whole machine has strong rigidity and high crimping precision. In addition, a terminal pressure monitor can be selected to monitor the change of the pressure curve of each crimp in real time. When the pressure is abnormal, it can automatically alarm and stop to ensure product quality.

  4. Splicing wires with copper tapes is cheaper than traditional soldering or terminal crimping, economical and environmentally friendly. There is no waste in the splicing process of copper tapes. The copper tapes have been treated with special texture.The spliced product has strong pulling force and stable and reliable quality. With its excellent performance, this machine has become a sharp weapon in the resistance wire connecting wire industry.

KINGSING



Maximum pressure: 2T (3T models can be customized)

Applicable wire: AWG24~16

Cutting length: ≥45mm

Stripping length: 0~16mm (can be customized)

Cutting accuracy: ±(0.1+L*2‰) L=cutting length

Casing length: ≤100mm

Copper tape width: 1~8mm

Copper tape thickness: 0.2~0.5mm

Crimping accuracy: ±0.05mm

Production efficiency: 800~1000 pieces/hour

Operation interface: color touch screen

Detection function: wire knot, lacking wire, terminal presence, air pressure, etc.

Optional functions: wear casing, wear sheath, pressure monitor, safety shield, etc.

Air pressure requirement: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Rated power: 2500W

Net weight: 900kg

Dimensions: 1800*1800*1500mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
