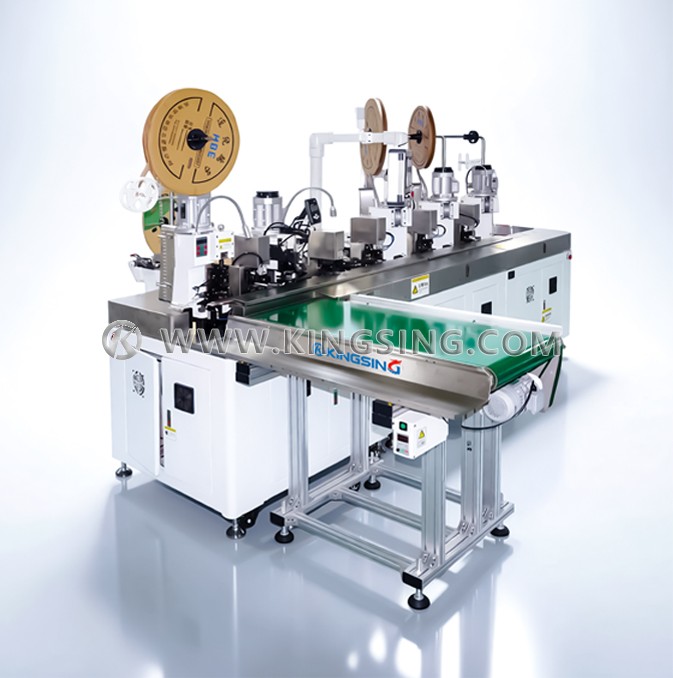

Automatic Multi-wire copper Tape Crimping and Heat Shrinkable Tube Terminal Machine

  • Model:KS-C141L
  • Net. Weight:
  • Dimension:
  1. This machine is specially designed for the mutual docking of one wire and multiple wires, and supports the docking of 1 wire and 3 wires at most (can be customized according to requirements). The four wires are sent by four sets of independent wire feeding mechanisms, cut according to the specified length and stripped at both ends, one of the wires is pressed together with the other three wires with copper tape, and the other end of each wire can be crimped.

  2. This machine has built-in 4 terminal crimping machines and 1 copper tape splicing machine. The copper tape machine is used to press 4 wires together. The 4 terminal machines can crimp different terminals at the other end of the 4 wires. Support the function of automatic heat-shrinkable tube threading. The heat-shrinkable tube in the coil can be cut according to the specified length and automatically put on the wire.

  3. The copper tape machine is integrally formed with ductile iron. The whole machine has strong rigidity and high crimping precision. In addition, a terminal pressure monitor can be selected to monitor the change of the pressure curve of each crimp in real time. When the pressure is abnormal, it can automatically alarm and stop to ensure product quality.

  4.  Splicing wires with copper tapes is cheaper than traditional soldering or terminal crimping, economical and environmentally friendly. There is no waste in the splicing process of copper tapes. The copper tapes have been treated with special texture.The spliced product has strong pulling force and stable and reliable quality. With its excellent performance, this machine has become a sharp weapon in the resistance wire connecting wire industry.


Maximum pressure: 2T (3T models can be customized)

Applicable wire: AWG28~12

Cutting length: ≥45mm

Stripping length: 0~16mm (can be customized)

Cutting accuracy: ±(0.1+L*2‰) L=cutting length

Casing length: ≤100mm

Copper tape width: 1~8mm

Copper tape thickness: 0.2~0.5mm

Crimping accuracy: ±0.05mm

Production efficiency: 700~1300 pieces/hour

Operation interface: color touch screen

Detection function: wire knotting, lacking wire, presence or absence of terminals, air pressure, etc.

Optional functions: pressure monitor, safety shield, etc.

Air pressure requirement: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Rated power: 3000W

Net weight: 1200kg

Dimensions: 3650*3270*2200mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
