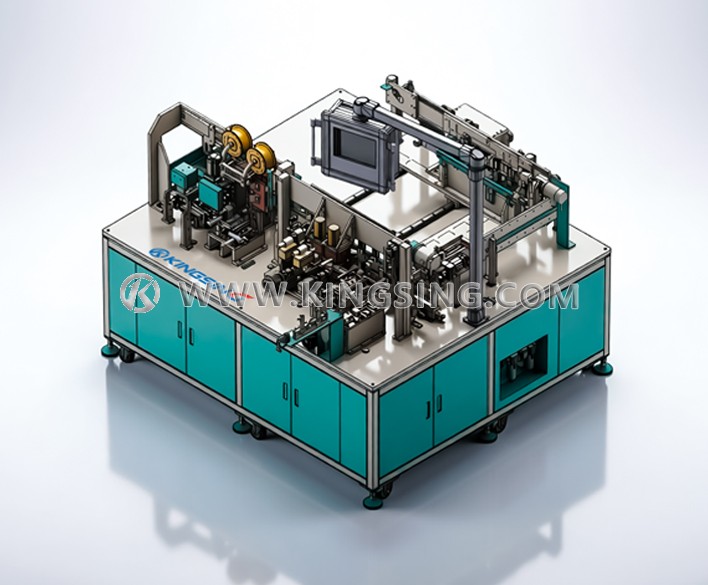

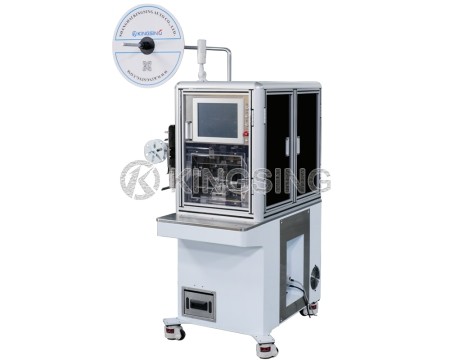

Automatic Heating Tube Splicing Wire Threading Sleeve Terminal Machine

  • Model:KS-C224U
  • Net. Weight:
  • Dimension:

1.    This machine is specially designed for the splicing of heating tube pins and wires. The heating tubes are automatically fed through the vibrating plate, and sent to multiple stations through the turntable mechanism for processing, including pin correction, forming, cutting length, etc. Then the two lead wires of the heating core are spliced together with the two wires with copper tape, and two different sleeves are inserted on the wires. It effectively prevents the phenomenon of anti-wire when the copper wire penetrates into the inner hole of the terminal, and the bulk terminal is automatically fed through the vibrating plate.

2.    The copper tape splicing mechanism is driven by a high-precision servo motor, and the double-wire copper tape machine can complete two-point copper tape splicing at one time. The copper tape machine is integrally formed with nodular cast iron, the whole machine has strong rigidity and high crimping precision. In addition, a terminal pressure monitor can be selected to monitor the change of the pressure curve of each crimp in real time. When the pressure is abnormal, it can automatically alarm and stop.

3.    Splicing wires with copper tapes is cheaper than traditional soldering or terminal crimping, economical and environmentally friendly. There is no waste in the splicing process of copper tapes. The copper tapes have been treated with special texture.The spliced product has strong pulling force and stable and reliable quality. With its excellent performance, this machine has become a sharp weapon in the NTC resistance wire connecting wire industry.



Maximum pressure: 2T (3T models can be customized)

Applicable wire: AWG24~16

Number of wires: 1 to 4 riveting (more quantities can be customized)

Stripping length: 0~10mm (can be customized)

Cutting accuracy: ±(0.1+L*2‰) L=cutting length

Casing length: ≤100mm

Copper tape width: 1~8mm

Copper tape thickness: 0.2~0.5mm

Crimping accuracy: ±0.05mm

Production efficiency: 600~1500 pieces/hour

Operation interface: color touch screen

Detection function: wire knotting, lacking wire, presence or absence of terminals, air pressure, etc.

Optional functions: pressure monitor, safety shield, etc.

Air pressure requirement: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Rated power: 2500W

Dimensions: 1600*1800*2000mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
