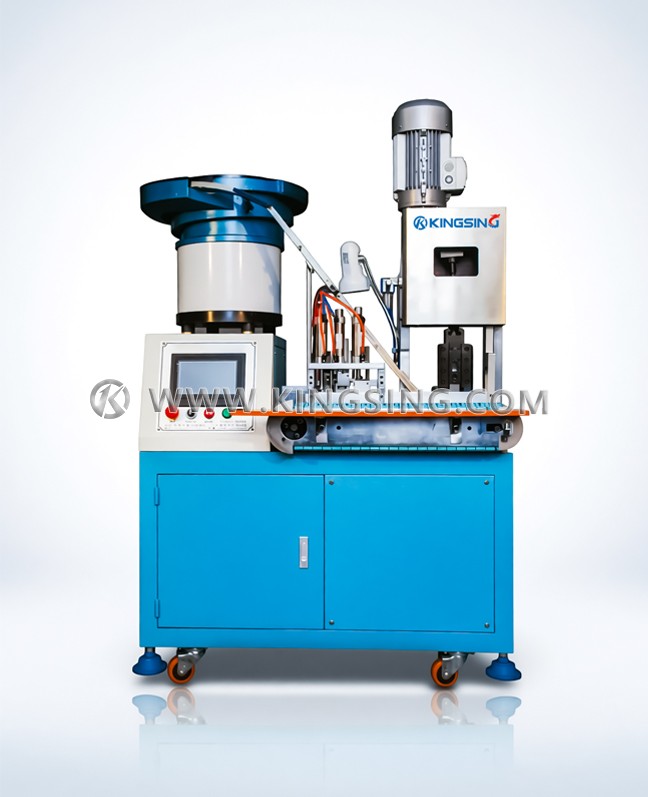

This is a semi-automatic two-pin plug crimping machine, suitable for crimping Chinese standard two-pin plugs and European plugs. The plug is automatically fed by the vibrating plate, the operator only needs to put the cable head into the fixture on the conveyor belt, then the machine can automatically complete the actions of stripping the outer jacket, stripping the core wires, inserting into the plug, and crimping.
The vibrating plate and crimping jig need to be customized according to the product. Usually, one machine can only process one fixed product.
Available Cable: H03VVH2-F, H05VVH2-F, etc.
Capacity: 2500~2800pcs/hour
Crimping Force: 4Ton
Good Rate: >99.8%
Air Source: 0.5~0.8Mpa
Power Rating: 1.5KW
Power Supply: 220V 50/60Hz
Net. Weight: 350kg
Dimension: 1130×830×1650mm
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
