Automatic Wire Sealing and Crimping Machine

  • Model:KS-S212 series
  • Net. Weight:
  • Dimension:

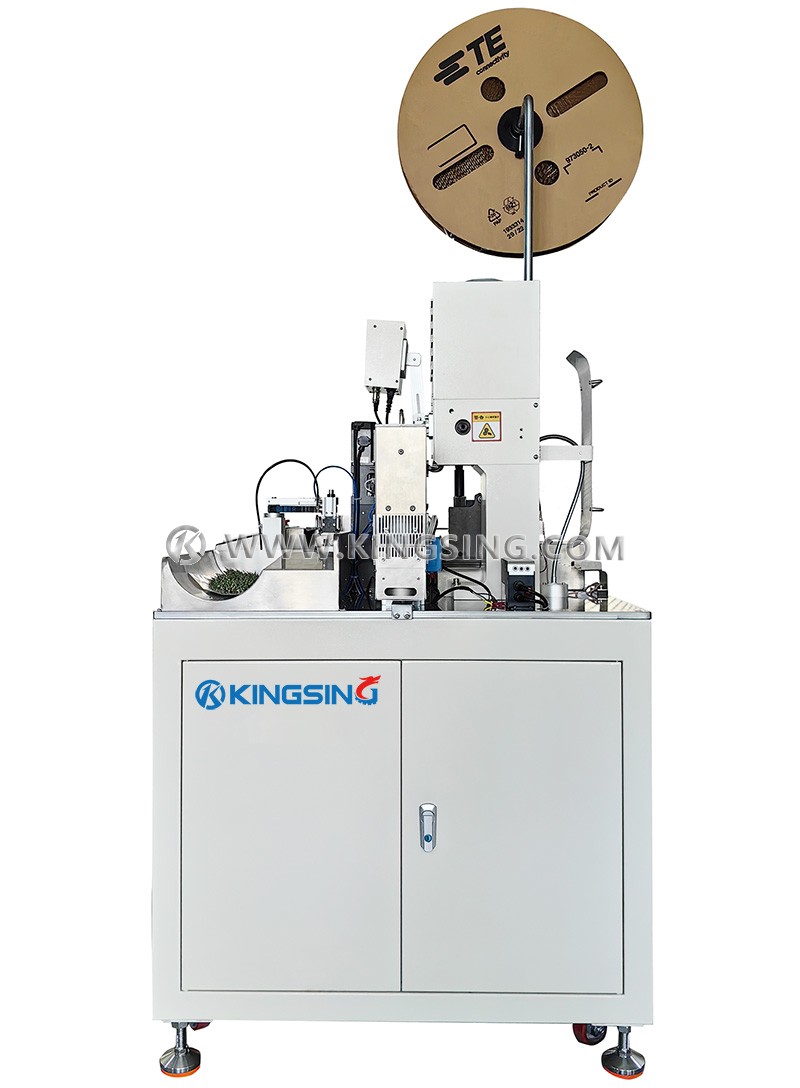

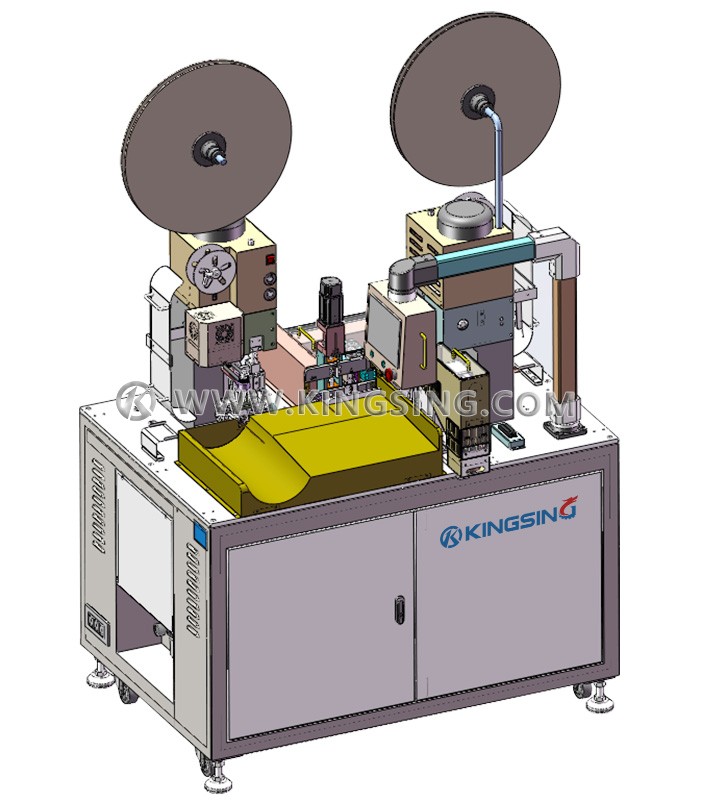

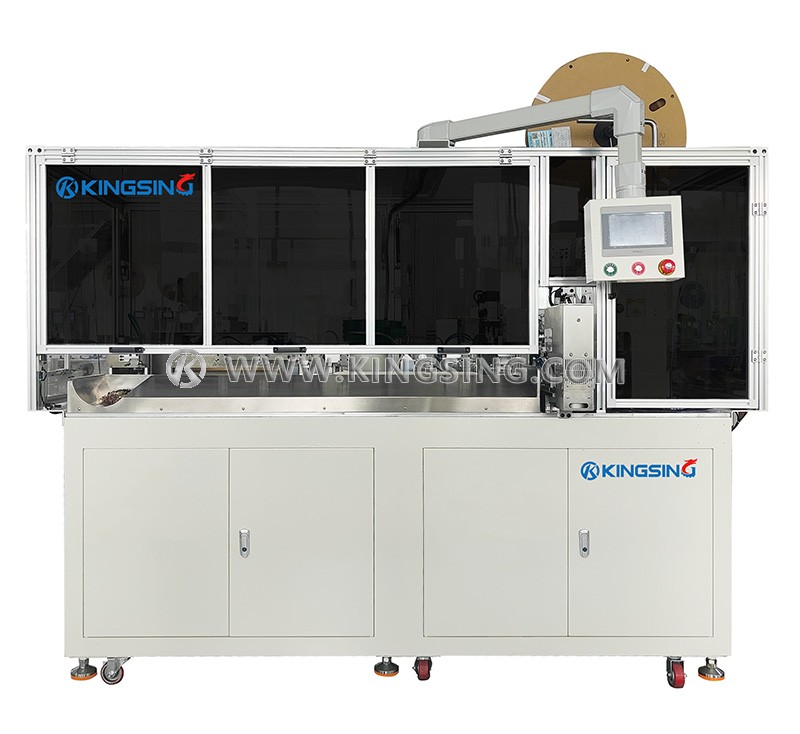

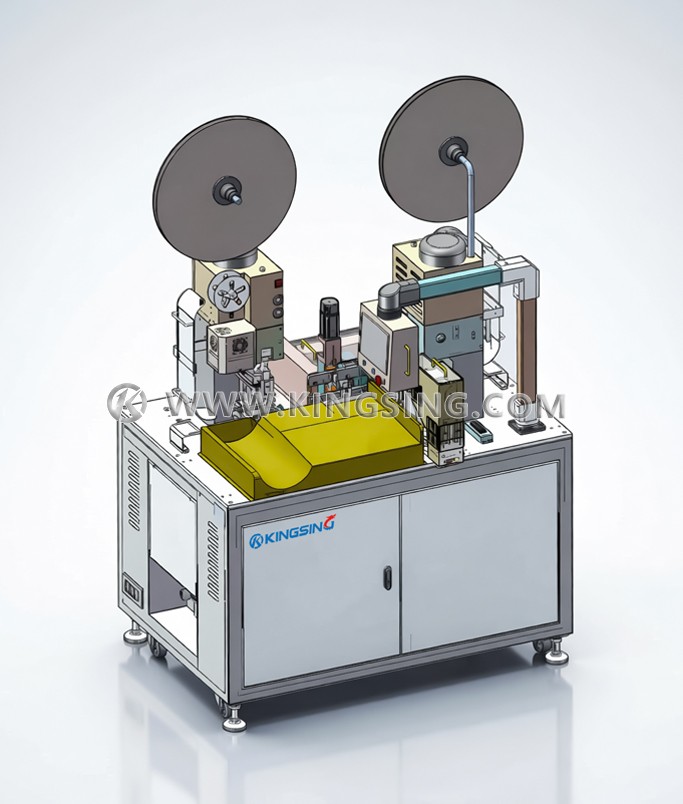

  1. This series is a fully automatic automatic wire sealing and crimping machine, which integrates the functions of cutting wires, stripping wires, inserting waterproof seal, and crimping terminals. There are 3 sub-models (see technical parameters for details). The waterproof plug is automatically fed through the automatic feeding system. The method of inserting the waterproof plug first and then stripping the wire completely eliminates the possibility of the copper wire turning over, which greatly improves the accuracy and stability of inserting the waterproof plug. Special functions support non-standard customization, such as automatic insertion of number tubes, automatic insertion of insulating sheaths and other functions.

  2. The workmanship of the whole machine is precise, and the wire feeding, stripping, translation and other mechanisms are all driven by servo motors, and the positioning is precise. The crimping machine is integrally formed with nodular cast iron, which has strong rigidity and stable crimping height. It can be equipped with a crimping force monitor to monitor the crimping force curve changes of each crimping process in real time. When the crimping force is abnormal, it will automatically alarm and stop. In addition, a CCD visual inspection system or a laser profiler can be selected to inspect the insertion position of the waterproof plug and the appearance of the terminal crimping.

  3. Adopting the concept of flexible design, one machine can process a variety of different products. When replacing the waterproof plug, you only need to replace the corresponding track fixture, and the product switching can be completed within a few minutes. The program memory function can save the processing parameters of different products in the database. When switching products, the corresponding processing parameters can be called out with one key, saving debugging time. In addition, it can also be equipped with a computer industrial control system that supports MES connection, with a built-in network interface, which can be connected to the MES system through a local area network, to realize remote reading or setting of parameters, remote production tasks and other functions.

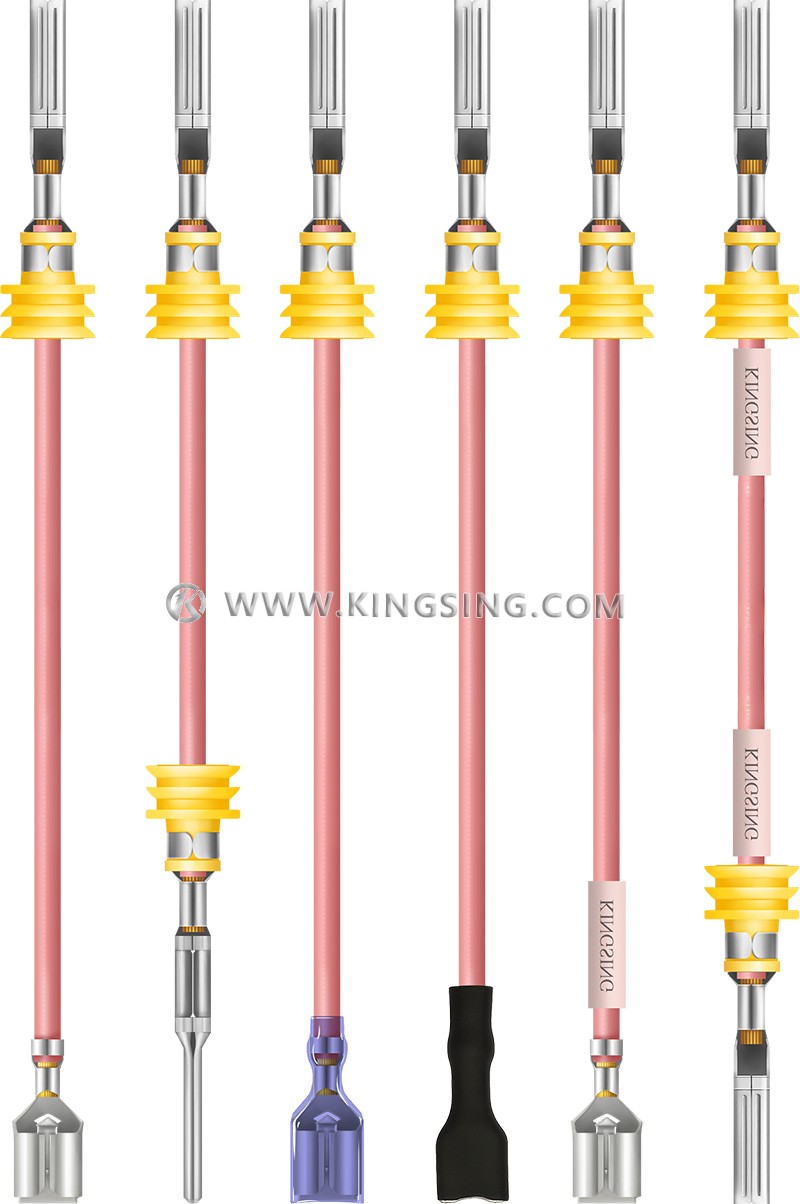

Main function

One side insert waterproof seal

Double-sided crimp terminal

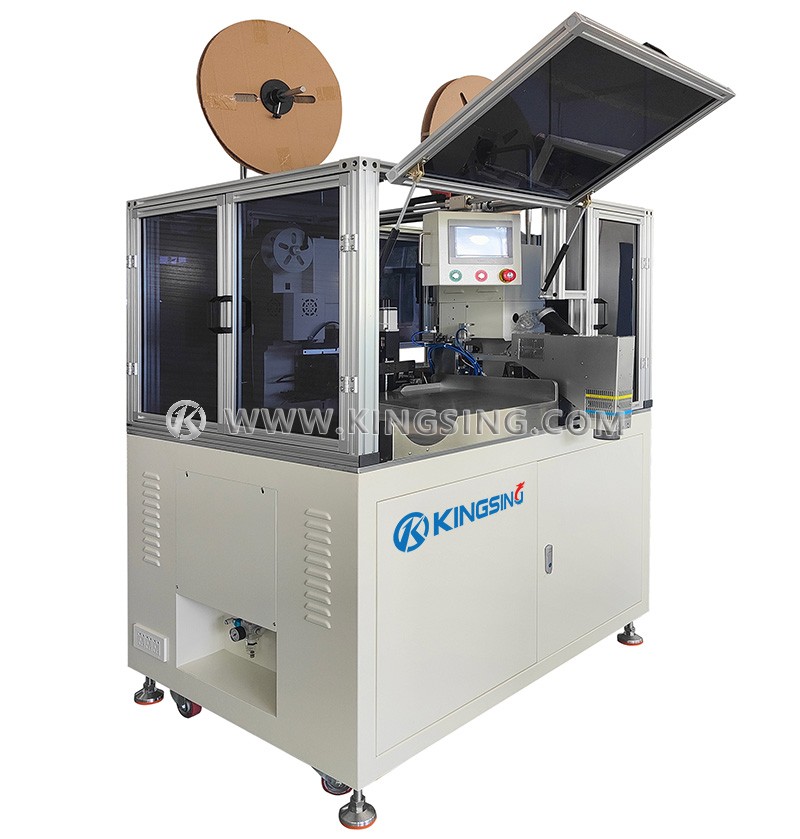

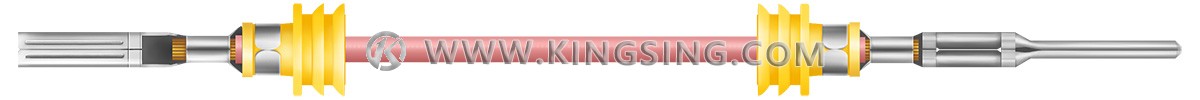

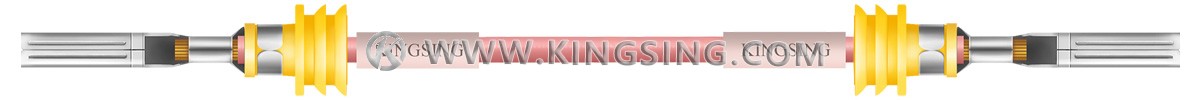

2-sided insert waterproof seal

2-sided crimp terminal

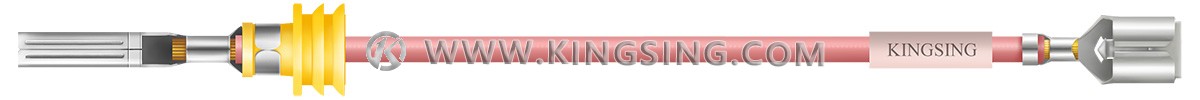

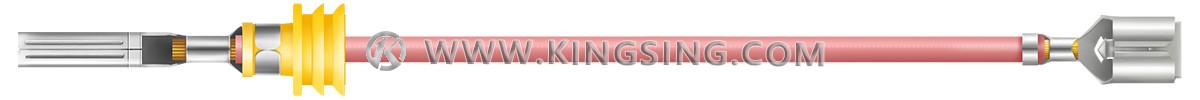

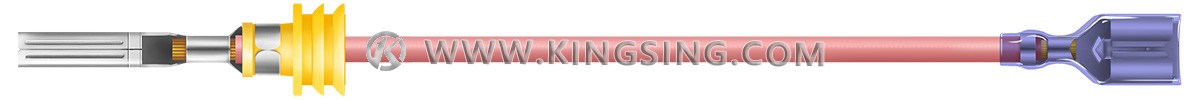

 Wire Head: Insert waterproof seal and crimp terminal

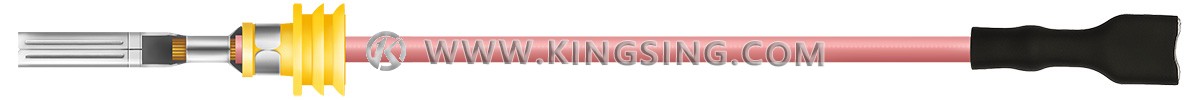

 Wire Tail:  Insert shrinkable tube and crimp terminal


Applicable wire diameter: AWG28~14 (0.1~2.5mm2)

Stripping length: ≤10mm

Cutting length: 60~3000mm

Cutting accuracy: ±(0.5+L*2‰) L=cutting length

Crimping force: 2T (optional 3T)

Crimp stroke: 30mm (40mm model is optional)

Operation interface: color touch screen (optional computer industrial control system)

Production efficiency: 1500~2000 pieces/hour

Air pressure requirement: 0.5~0.8Mpa

Working voltage: 220V 50/60Hz

Rated power: 3000W

Optional functions: crimping force monitor, CCD visual inspection system, laser profiler, insert number tube


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
