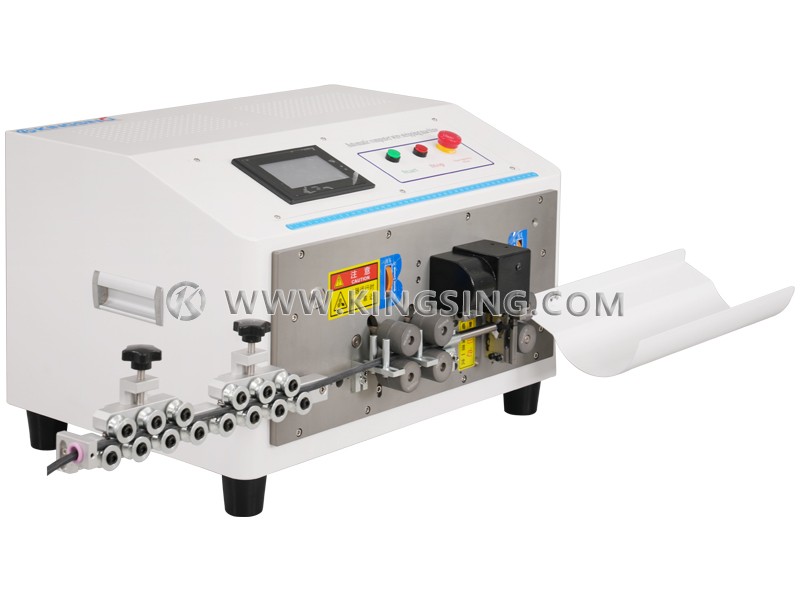

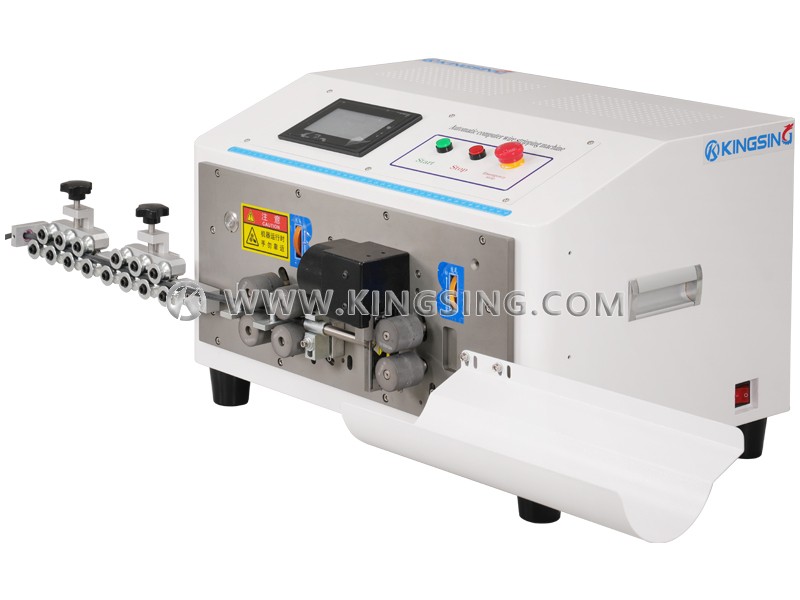

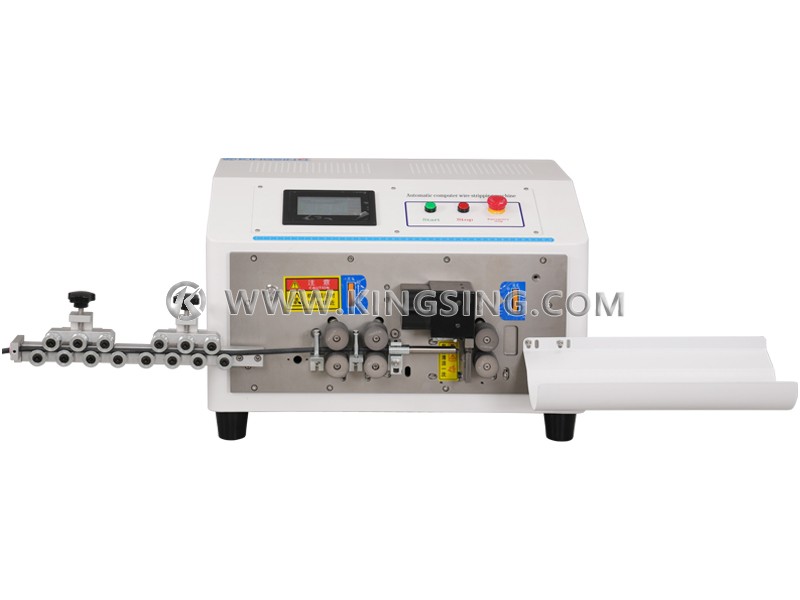

Multi-core Flat Cable Stripping Machine

  • Model:KS-W100R
  • Wire Size:
  • Net. Weight:
  • Dimension:
  1. This is a six-wheel drive touch-screen version of the wire stripping machine, which is specially designed for processing flat sheathed wires. It can automatically complete the actions of cutting wires, stripping outer sheaths, and stripping core wires. The wire feeding wheel uses 4 wheels to feed the wire, which greatly increases the contact area between the wire and the feeding wheel, and reduces the pressure while increasing the tension, so the stripping length range can be effectively increased.

  2. This machine has the function of lifting wheel and jumping conduit. The function of lifting wheel means that the outlet wheel can be automatically lifted to avoid when stripping the wire end, which can greatly increase the stripping length range of the wire end. The jumper function means that the wire guide can be automatically lifted to avoid when stripping the wire tail, which can greatly increase the stripping length range of the wire tail.

  3. Color touch screen operation interface, parameter setting is intuitive and easy to understand, parameters such as cutting length, stripping length, cutting depth,  feeding depth,retracting and output can be set freely in the program.The program memory function can save the processing parameters of different wire materials into different program numbers, and the corresponding processing parameters can be called out with one key when switching wire materials.

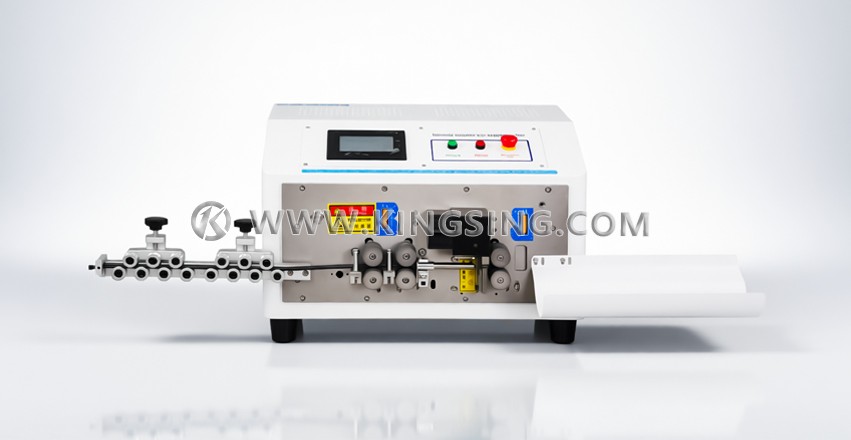

Download: (1) (2)

Applicable wire: BVR electronic wire, flat sheathed wire, multi-strand copper wire

Applicable wire diameter: AWG28~7 (0.1~10mm2)

Maximum diameter of conduit: Φ10mm

Stripping length: wire head up to 150mm, wire tail up to 35mm

Cutting length: 0~9999mm

Cutting accuracy: ±(0.5+L×0.2%) L=cutting length

Lifting wheel function: yes

Jumper conduit Function: yes

Operation interface: color touch screen

Program memory function: up to 100 groups of programs can be saved

Working voltage: 220V 50/60Hz

Net weight: 38kg

Dimensions: 560*480*380mm


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
