Automatic Cable Stripping Machine With Coiling Machine

  • Model:KS-W150R
  • Wire Size:
  • Net. Weight:
  • Dimension:

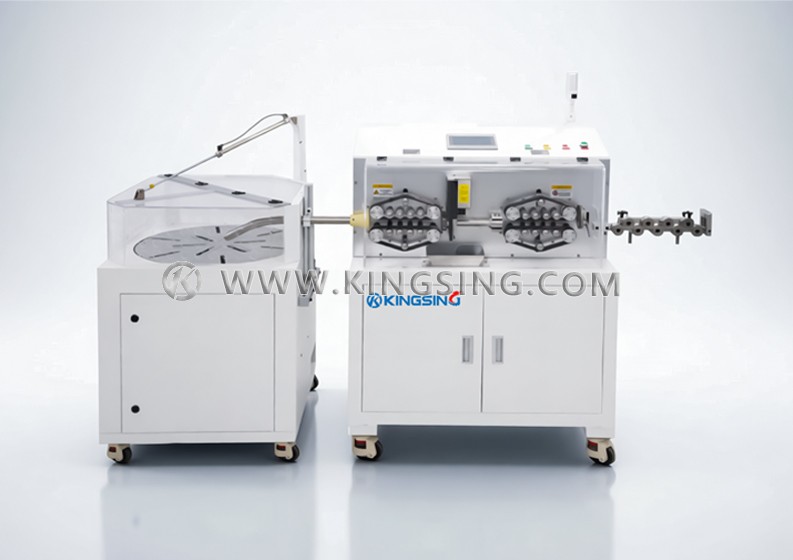

KS-W150R is a fully servo automatic cable stripping and coiling machine, the cutter, feeding roller, and coiling machine are all driven by servo motors, it integrates the functions of cutting, stripping and coiling, it is equipped with two bowl shaped coiling system on the left of the stripping machine, the processed cable can be coiled into a circle automatically, it is especially for processing the long cable, so that the finished cable can be collected and packed easily. The whole machine adopts fully servo motor control, the processing accuracy is high, the belt feeding system will not damage to the surfaceof the cable, suitable for customers with high requirements for quality.

  • Fast installation and simple operation;

  • Stable performance and low failures;

  • Reasonable space design and centralized functions;

  • Easy to program and operate, the operator can get started quickly without any training;

  • Designed by human structural mechanics to reduce fatigue strength;

  • PLC control & Servo Motor driven allow ultimate processing effect;

  • Robust design allows heavy-duty wire loading and processing;

  • Durable tungsten steel cutter guarantees stable & powerful cutting;

  • The dual bowl coiling system is able to coil long wires and cables in o bundles ready for packaging, it allows an operator to collect wire from one bowl while the machine is loading the other bowl, with this design, the machine can process continually, improving through-put over single bowl designs;

  • lt adopts belt driven method, so that the wire insulation will not be damaged;

  • Equipped with servo motor, the machine is highly accurate in wire measuring, cutting and stripping.

Download: (1)

Wire Size Range: 4~150mm2

Wire Cutting Length: Max.100m (can be customized)

Cutting Accuracy: ±0.002mmxCutting Length

Minimum Insulation Length: 70mm

Max. Tube Diameter: Ф32mm

Stripping Length: Head 0~500mm Tail 0~250mm

Operation Interface: 7 inch color touch screen

Display Language: Chinese and English

Memory Function: Max. 100 group of programs

Capacity: 200~300pcs/hour (depends on cutting length)

Power Rating: 700W

Power Supply: AC 220V 50/60Hz

Air Pressure: 0.5~0.7MPa

Net Weight: Stripping Machine: 230Kg   Coiling Machine: 140Kg

There are 2 specifications for the circle machine to choose from:

Circle machine modelCircle inner diameterCircle outer diameterWeight
Small circle machineΦ120~250mm


Large circle machineΦ130~300mm<Φ600mm70kg


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
