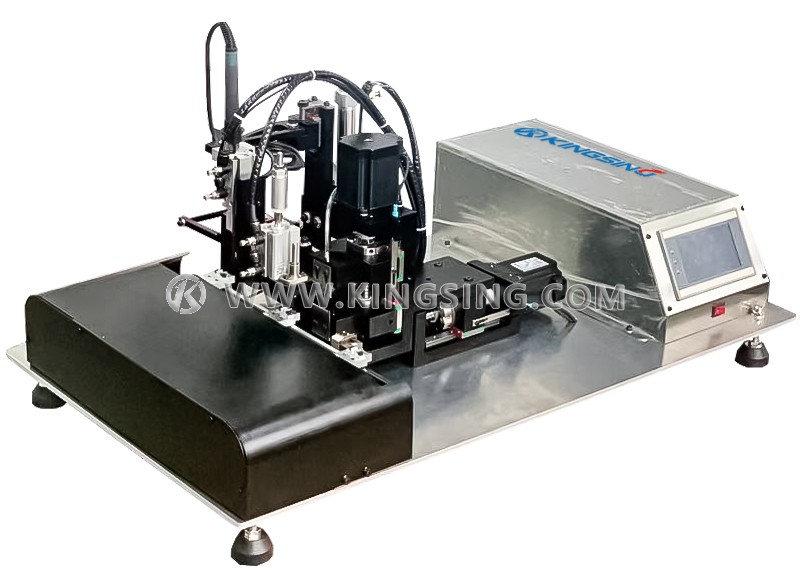

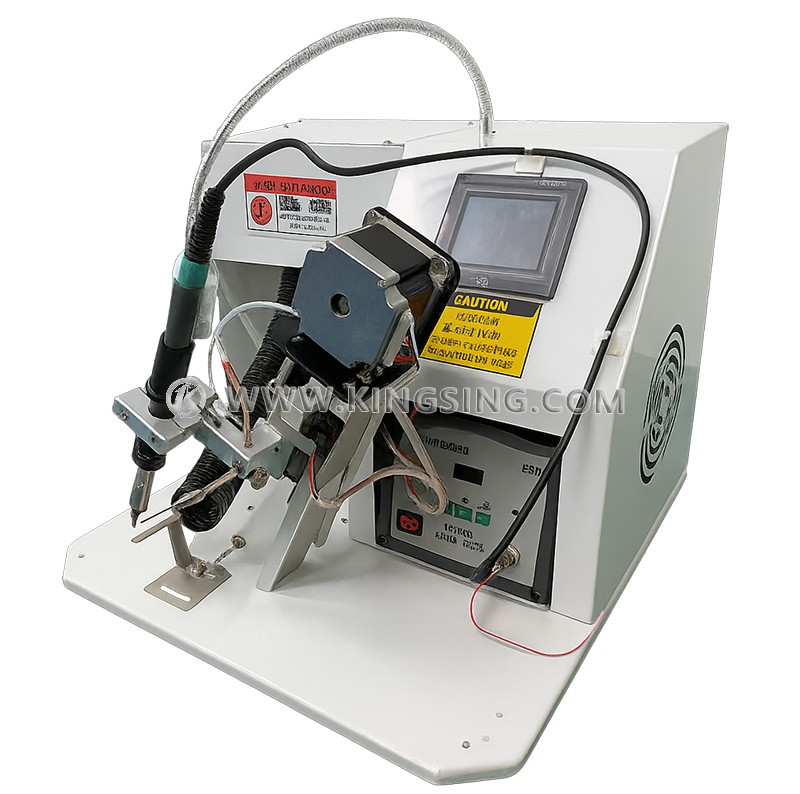

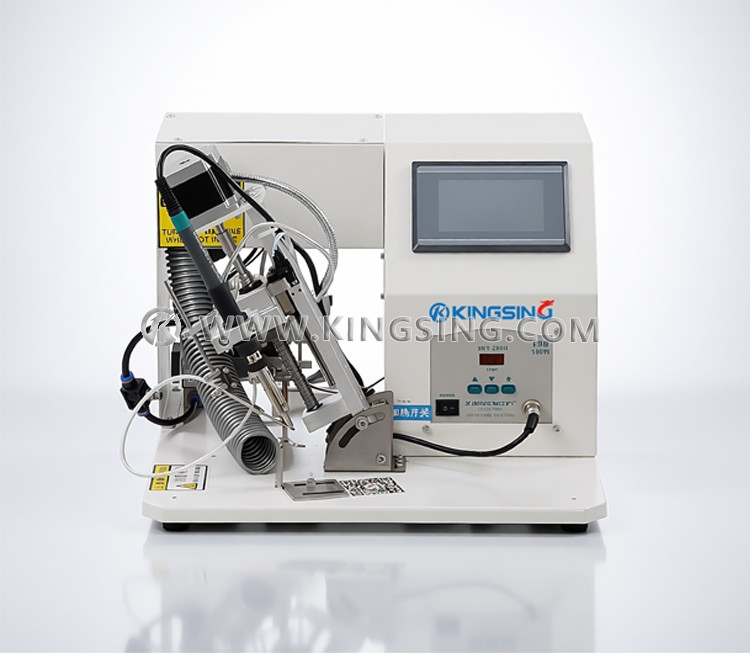

5 Axis Soldering Machine

  • Model:KS-W232M
  • Net. Weight:
  • Dimension:

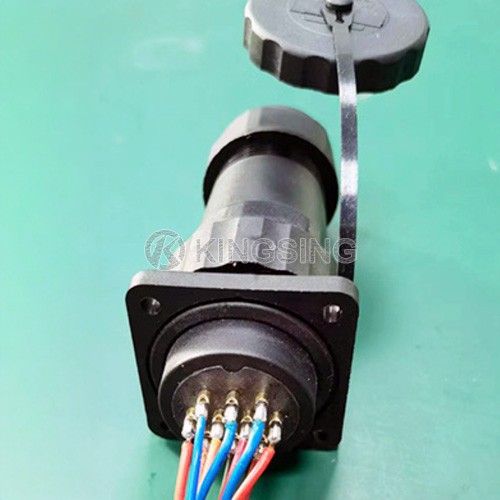

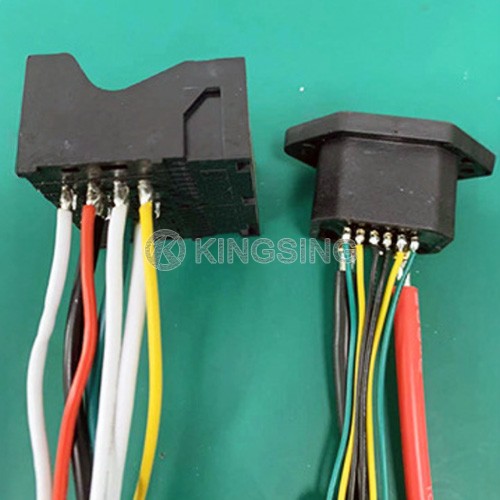

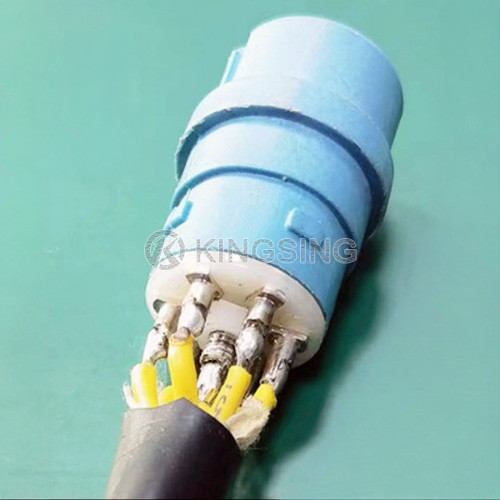

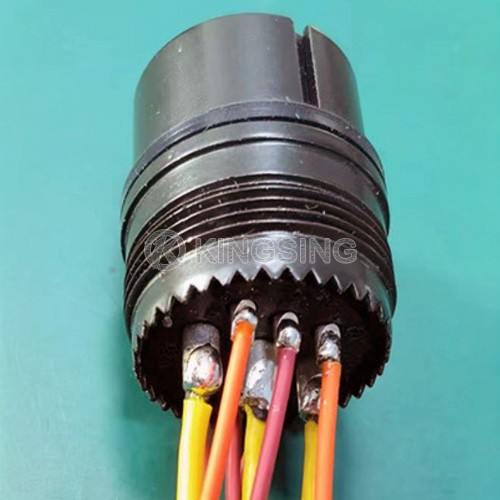

This machine is a connector and wire soldering equipment that can quickly replace different connectors. For soldering between the circuit board and the wire, the equipment automatically pulls, cuts, strips, and takes up the wire. All parameter settings are digital operations, which is very simple and easy to learn. The main movements are controlled by 4 axes, and the linkage accessories use slide rails, slide blocks, ball screws, and ball nuts. The accuracy can reach 0.03mm. It is an automation equipment with extremely stable performance.

Download: (1)

Production capacity: 4~5 seconds per work process (specifically combined with manual work)

Power supply: AC220 60HZ

Pass rate: above 99%

Air pressure: 0.5~0.8Mpa

Basic configuration: motor

Dimensions (L× W × H): 650*400*350mm
