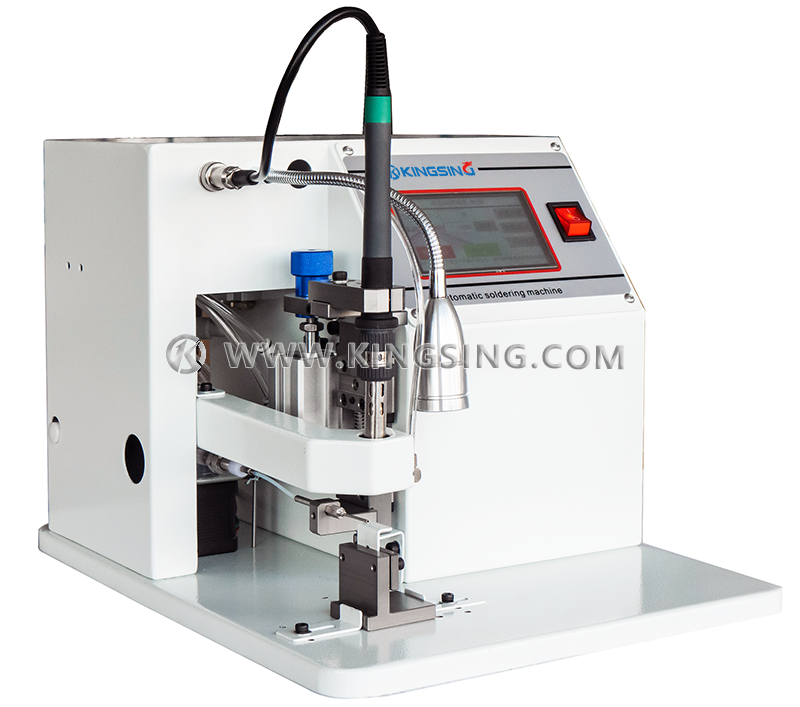

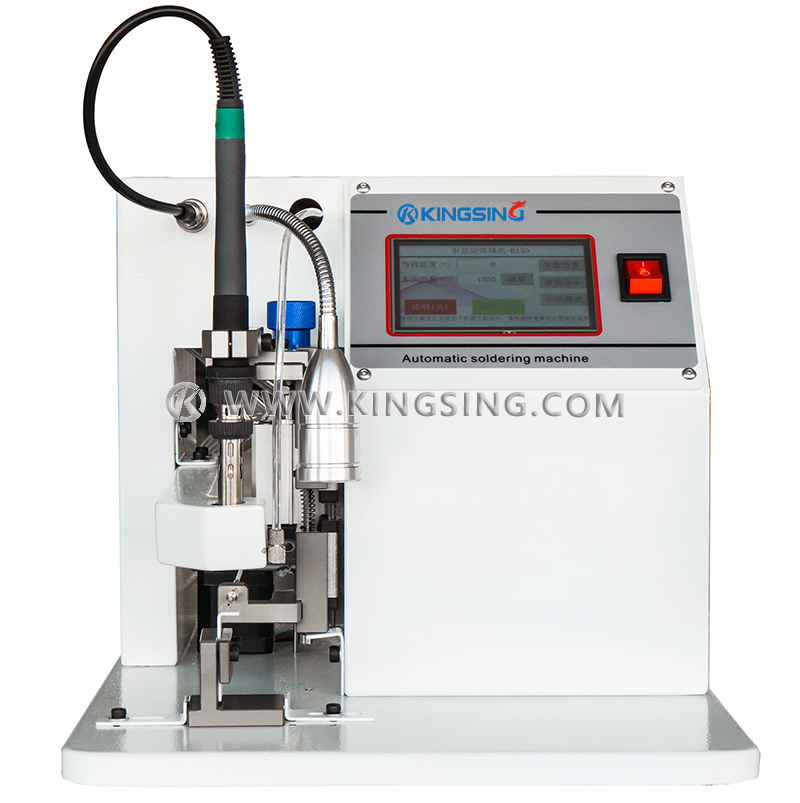

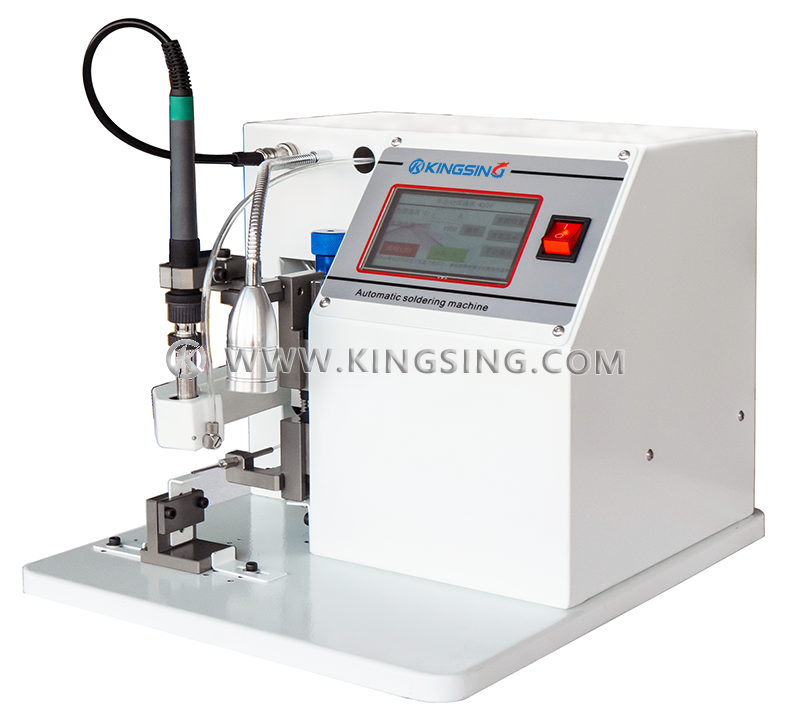

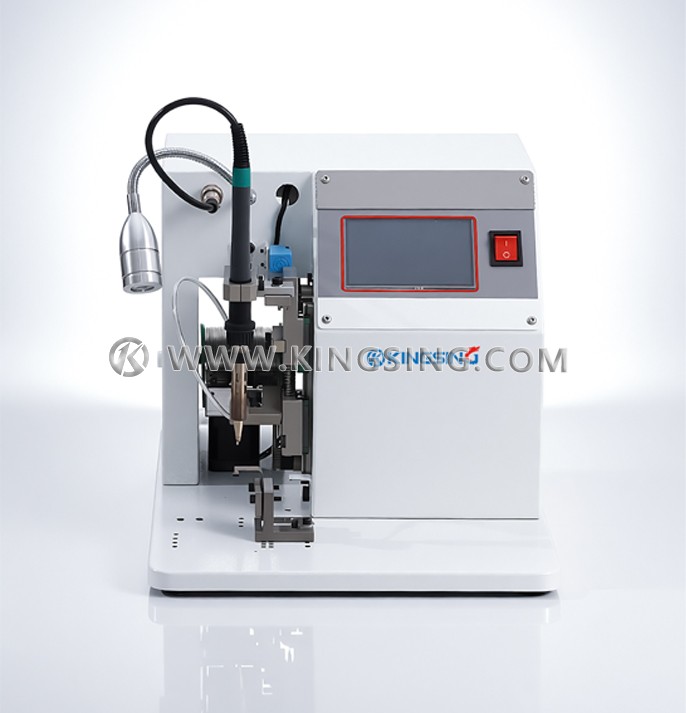

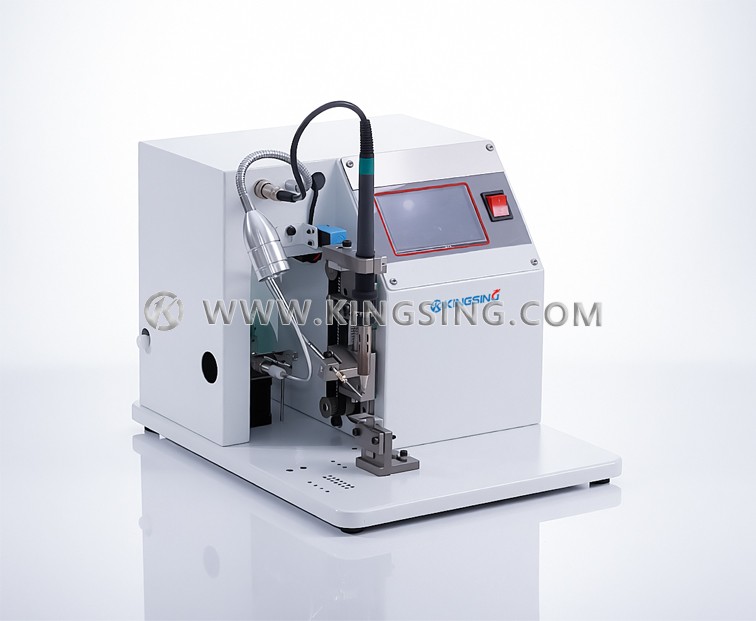

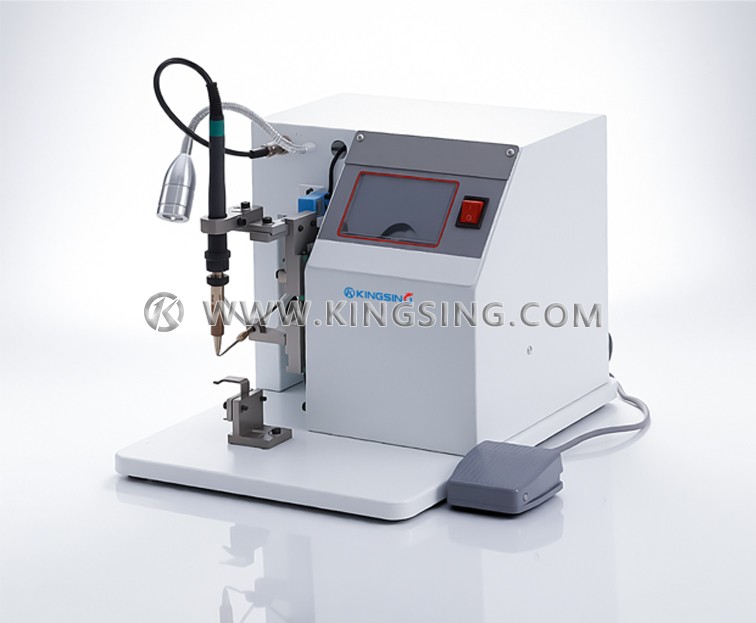

Semi-automatic Soldering machine

This semi-automatic soldering machine is a versatile solution for precision wire-to-connector and wire-to-PCB soldering applications. Engineered for electronic assembly, wire harness production, and connector manufacturing, it delivers stable soldering quality with significantly reduced manual effort and enhanced productivity.

The system features programmable soldering parameters including temperature control, soldering time adjustment, and precise tin feeding length management, ensuring reliable and repeatable solder joints across various production requirements. Its intuitive digital control interface allows operators to configure multiple programs according to specific manufacturing needs, making it adaptable to diverse wire gauges and component specifications.

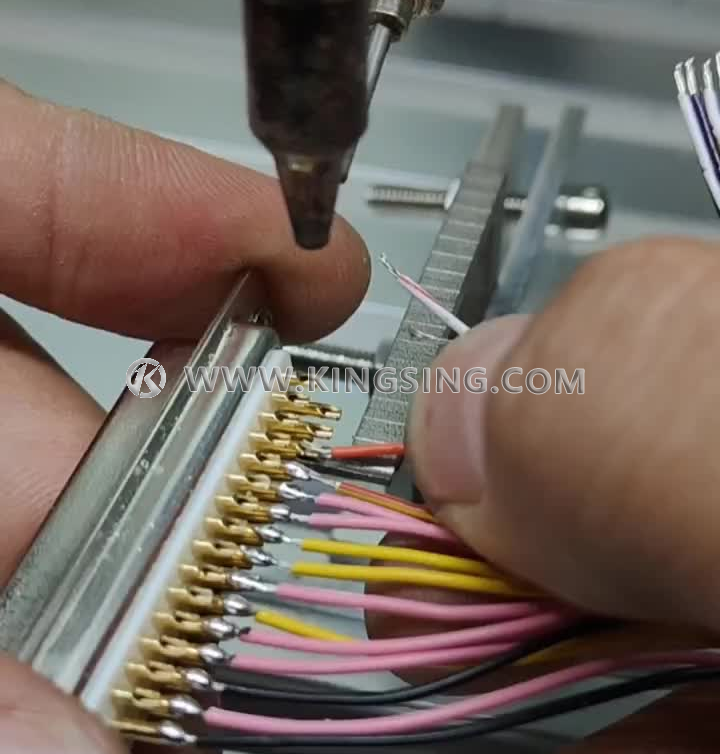

This machine excels in soldering a comprehensive range of electronic components including circular connector contacts, pin and socket contacts, USB connectors, DC jacks, TYPE-C charging ports, toggle switches, and aviation plugs. The equipment demonstrates exceptional performance when handling connector crimp contacts, male pin contacts, female socket contacts, and various insert contacts commonly used in aerospace and industrial applications.

With customized fixtures specifically designed for different connector types such as public headers, voltage regulation modules, three-pin plugs, connector pin contacts, and receptacle contacts, operators can efficiently process diverse electrical contact configurations. The machine supports both plug contacts and socket contacts, ensuring versatility across different connector families and contact arrangements.

The automated solder wire feeding system and precise soldering process minimize operator skill dependency while maximizing efficiency and quality consistency. This makes it ideal for high-volume production environments requiring reliable electrical connections for demanding electronic manufacturing tasks involving connector pin contacts, electrical socket contacts, and removable connector contacts.

By combining advanced automation technology with flexible manual handling capabilities, this semi-automatic soldering solution significantly improves manufacturing productivity, reduces soldering defects, and ensures superior electrical connectivity for critical applications in aerospace, automotive, telecommunications, and industrial electronics sectors.
