Automatic Soldering and Lead Cutting Machine

  • Model：KS-S952
  • Net. Weight：
  • Dimension：
Online Inquiry

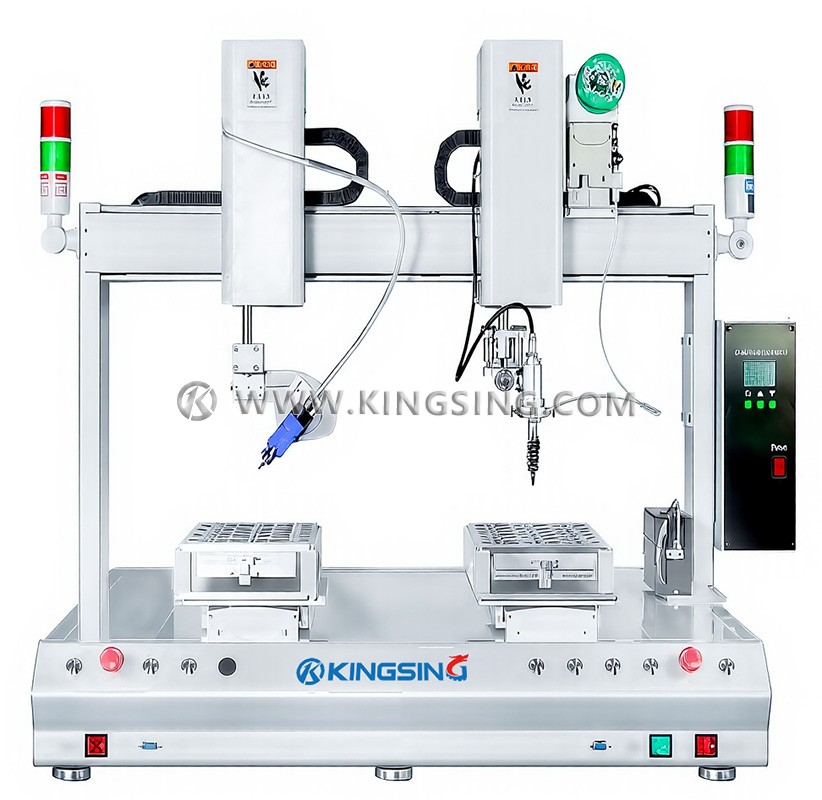

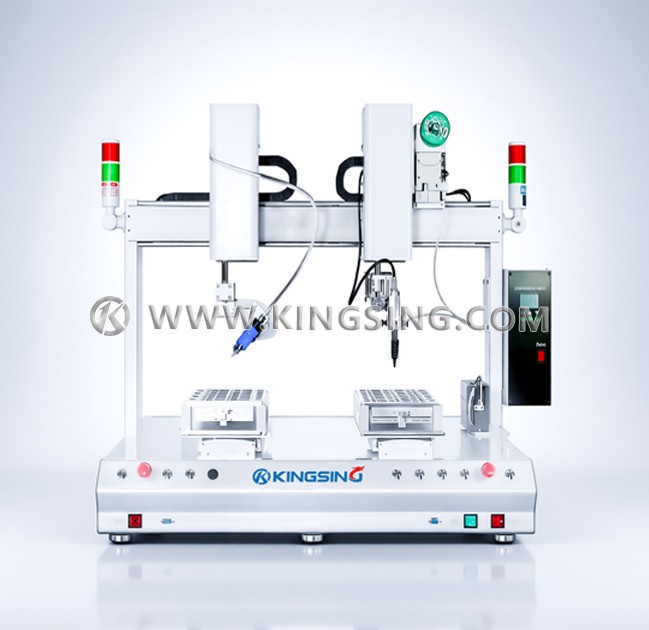

This innovative dual-station automatic system combines PCB lead cutting and automatic soldering functions within a single platform. The left station performs precise PCB lead cutting, while the right station delivers high-quality soldering, creating a seamless production process that eliminates the need for separate equipment.

The system features two independent workstations, each equipped with its own Y-axis, Z-axis, and R-axis motion control. This fully independent XYZR control allows both processes to run simultaneously or independently, significantly improving overall productivity and manufacturing flexibility.

By integrating two critical manufacturing steps into one machine, this solution reduces floor space requirements, streamlines workflow, and lowers equipment investment costs. It is particularly suitable for PCB assembly lines that require both trimming and soldering operations in one continuous process.

Engineered for stability and precision, the system offers programmable parameters including cutting depth, soldering temperature, tin feeding length, and process timing. With its dual-functionality design, it provides manufacturers with a versatile and cost-effective automation solution for complex PCB assembly tasks.

XYZ Axis Travel500×300×100 mm (customizable)
Main FunctionsPCB lead cutting, soldering
Y-Axis Quantity2 (dual-station)
R-Axis Quantity2
R-Axis Rotation±360°
XY Translation Speed0–800 mm/s
Repeat Accuracy±0.02 mm
Solder Wire DiameterØ0.3–1.0 mm
Temperature Tolerance±2 °C
Temperature Range50–500 °C
Max. Load10 kg
Program StorageMax. 999 programs
Soldering Time1.2–2 seconds
Power SupplyAC 220V 50/60Hz (customizable)
Optional ConfigurationsSafety Guard Cover, Safety Light Curtain, Tooling Fixture, Fume Extraction and Purification Unit
Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
