Electronic Component Wire Soldering Machine

  • Model：KS-W24 Series
  • Net. Weight：
  • Dimension：
Online Inquiry

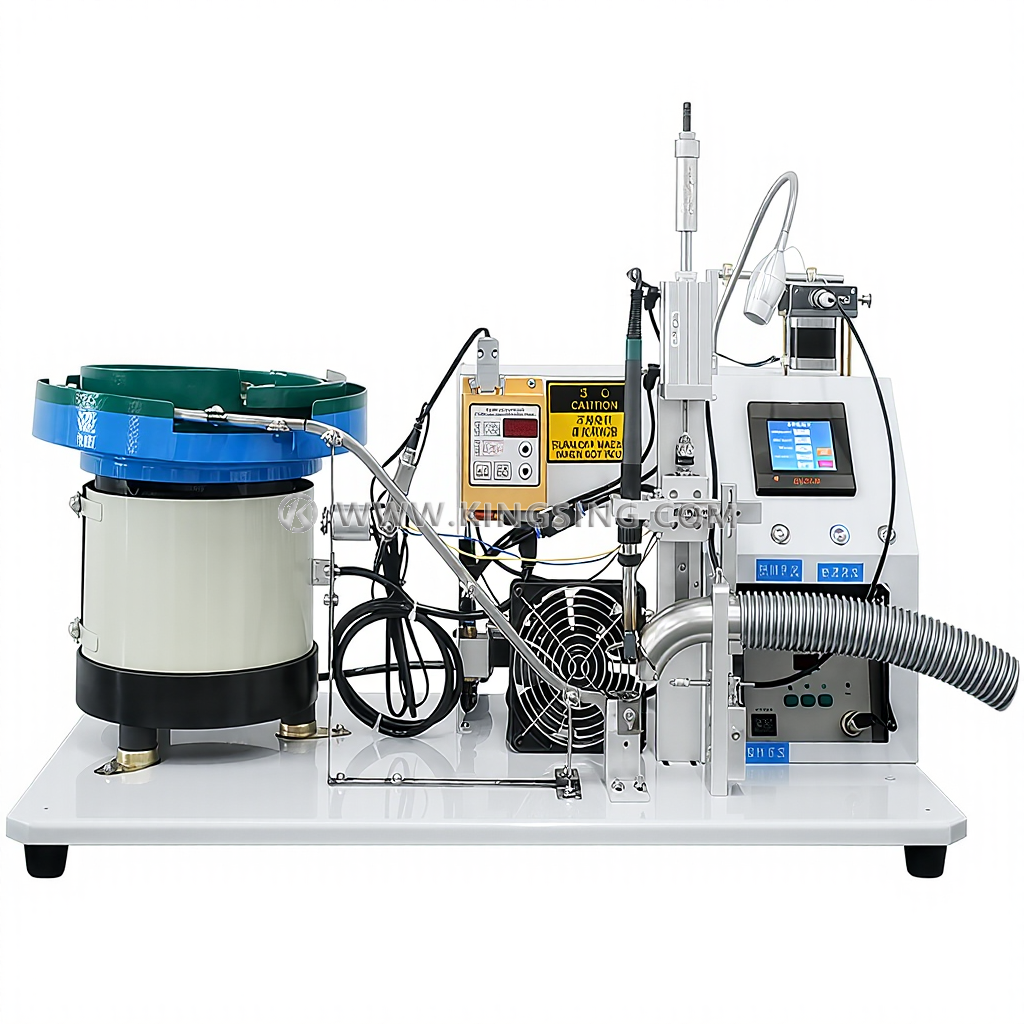

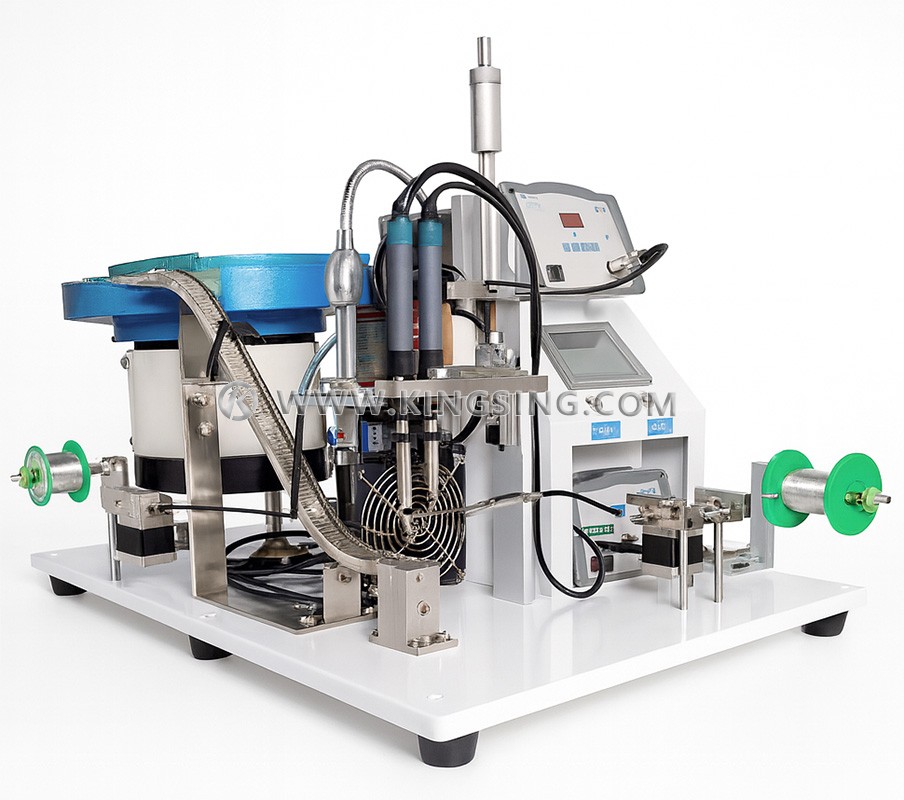

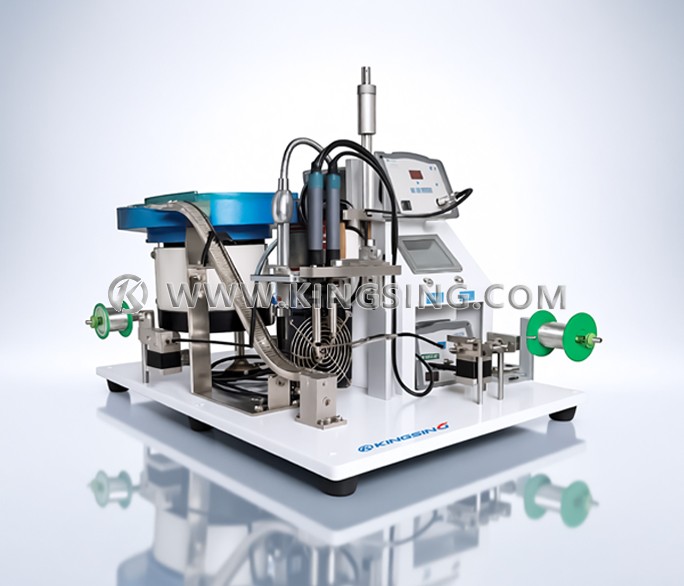

This semi-automatic soldering machine is specifically designed for precise wire-to-electronic component soldering applications. The equipment features an integrated vibration bowl feeding system that automatically supplies electronic components, while operators simply handle the wire positioning, allowing the machine to complete the remaining soldering process.

The machine automatically feeds solder wire and executes the soldering process with exceptional precision and consistency. This automation significantly reduces manual labor requirements and enhances production efficiency in electronics manufacturing environments.

Each vibration bowl is custom-engineered according to specific product requirements, with machines typically optimized for soldering one particular type of component. This specialization ensures optimal performance and reliability tailored to specific production demands.

Ideally suited for electronic assembly lines, wire harness manufacturing, and small component soldering applications where consistent quality and high throughput are critical requirements.

ModelKS-W24SKS-W24D
Soldering Guns12
Applicable ObjectsSmall pad spacingLarge pad spacing
Temperature Range0-550℃
Temperature Accuracy±5℃
Solder Wire DeliveryStepper Motor
Control InterfaceColor Touchscreen
Welding ModesFlat Welding / Overlay Welding
Soldering Iron Power150W (customizable)
Operating VoltageAC 110/220V 50/60Hz (customizable)
Net Weight36 kg
Dimensions800 × 400 × 440 mm
Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
