Automotive Blind Plug Insertion Machine

  • Model:KS-T527A
  • Net. Weight:
  • Dimension:

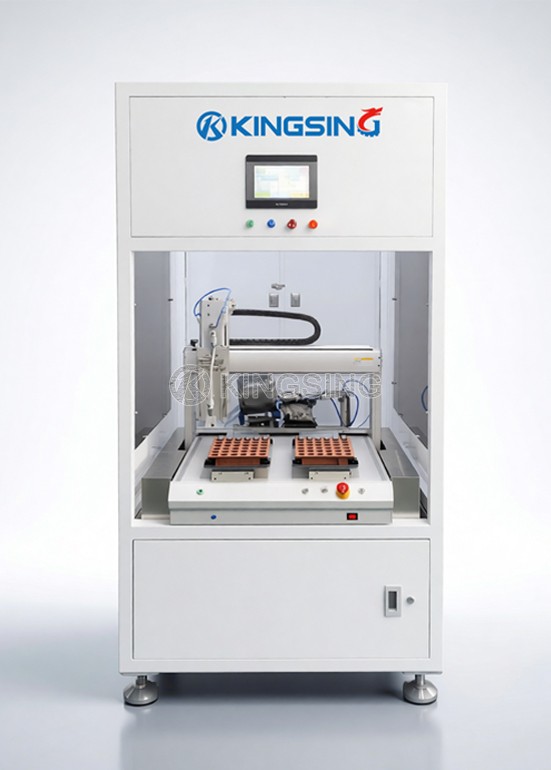

This fully automated blind plug insertion machine is engineered for high-precision installation of sealing plugs in automotive wire harness connectors. Designed to meet the stringent demands of modern automotive manufacturing, this advanced system ensures consistent, error-free plug insertion across a wide range of connector types, materials, and configurations.

The machine features exceptional product adaptability, supporting multiple blind plug types with different specifications, shapes, and materials to accommodate diverse production scenarios. While it processes one blind plug type at a time, quick fixture replacement enables fast changeovers between different product models, minimizing downtime and maximizing production flexibility for multi-model production lines.

The innovative dual-station sliding rail design significantly enhances operational efficiency by allowing two workstations to operate simultaneously. While one station performs the plug insertion process, the other handles loading of new connectors and unloading of finished units. This alternating workflow reduces idle time and enables continuous operation, delivering impressive throughput rates.

For superior quality assurance, the machine supports an optional CCD vision detection system that automatically verifies the presence, correct positioning, and complete insertion of each blind plug. This real-time inspection capability ensures zero defective units, enhances process traceability, and complies with strict automotive quality standards.

Built with robust safety protection devices including emergency stop functions, light curtains, and protective enclosures, the machine ensures operator safety during high-speed operation. Combined with a vibration-resistant frame and stable pneumatic actuation system, it delivers reliable performance in demanding industrial environments with minimal maintenance requirements.

Blind Plug Types1 type (different plugs require fixture replacement)
Working StationsDual station (sliding rail type)
Insertion Depth Tolerance±0.2 mm
Detection SystemBlind plug presence and positioning detection
Optional ConfigurationCCD vision detection system
Air Pressure0.5~0.8 MPa
Power SupplyAC 220V 50Hz (customizable)
Net Weight150 kg
Dimensions1000 × 1000 × 1600 mm
