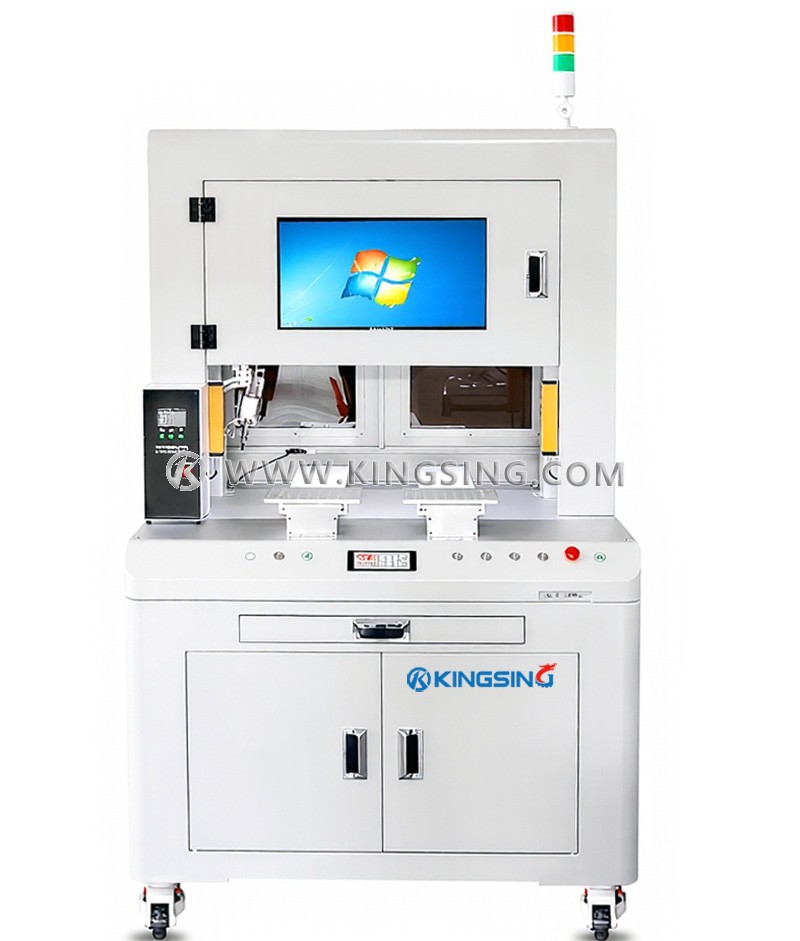

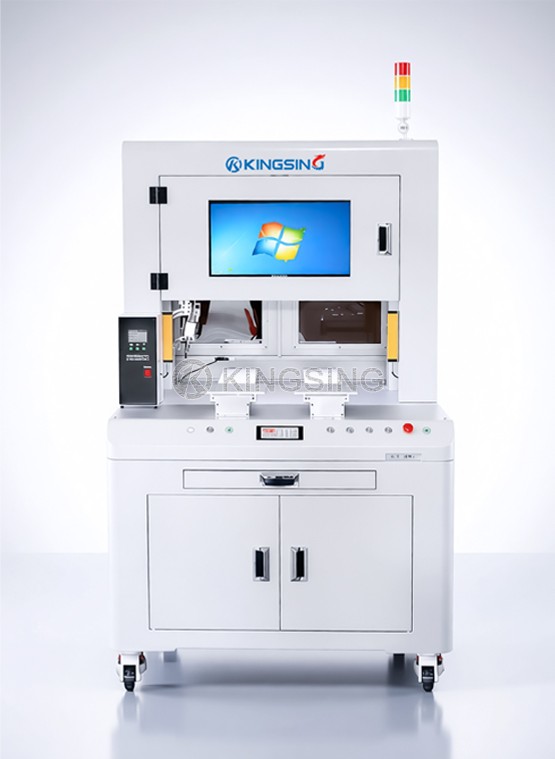

Automatic CCD Vision Soldering Robot

This automatic visual soldering machine is a high-precision automated soldering solution designed for modern electronics manufacturing. Equipped with XYZR multi-axis motion control, it integrates advanced visual positioning and inspection capabilities to ensure accuracy, consistency, and superior soldering quality.

The system is ideal for handling a wide variety of electronic components and assemblies, including PCBs, LCD modules, connectors, pins, plugs, switches, and other precision electronic devices. With its advanced vision alignment system, the machine can detect positioning deviations and automatically correct soldering paths, eliminating human error and ensuring consistent quality even for delicate or densely populated boards.

It is particularly well-suited for post-SMT soldering, rework, and applications where traditional reflow or wave soldering methods are insufficient. The equipment supports both point soldering and drag soldering processes, making it versatile across different production needs.

The soldering system adopts imported heating elements, providing rapid heating, stable thermal recovery, and precise temperature control. High-frequency heating and efficient thermal conduction guarantee uniform solder joints with minimal defects. Combined with intelligent software control, the machine delivers enhanced visual accuracy and higher process reliability, meeting stringent industrial standards.

Designed with flexibility and productivity in mind, the system supports program storage and features a user-friendly interface with handheld programming unit. This makes it easy for operators to set parameters, optimize soldering paths, and adapt to new applications with minimal downtime.
