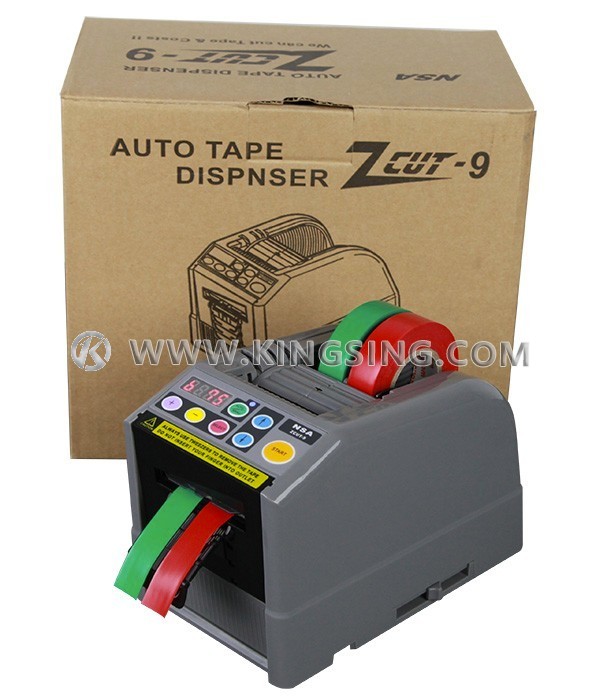

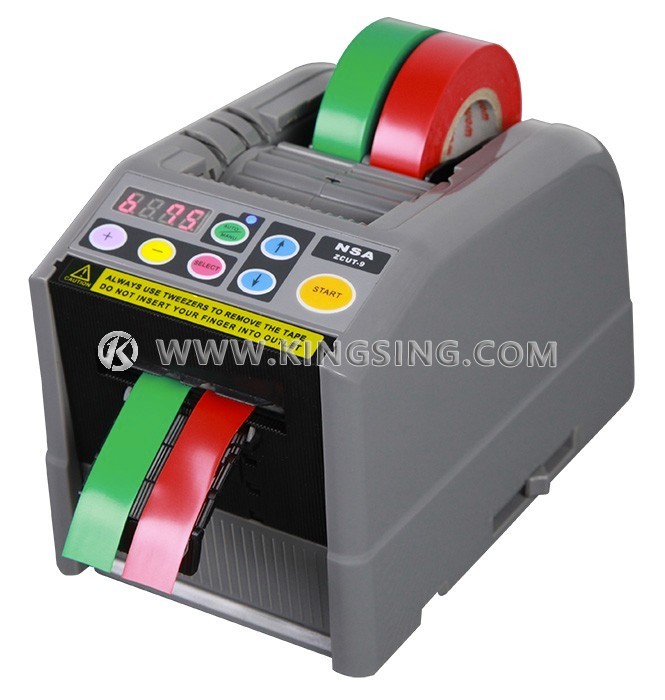

Automatic Adhesive Tape Dispenser

  • Model：ZCUT-9
  • Max. Width：
  • Blade Type：
  • Net. Weight：
  • Dimension：
Online Inquiry

This is a fully programmable tape dispenser equipped with a precise photoelectric cut-off blade controlled by two individual photocells. It does not require any tape's core support or shaft and enables to easily process two tapes simultaneously.

Applicable Material: insulating tape, transparent tape, PVC tape, double sticky tape, etc.
Cutting Length: 5 - 999mm
Tape Width: 6 - 60mm
Max. Tape OD: 300mm
Feeding Speed: 200mm/s
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 25W
Net. Weight: 2.5Kg
Dimension: 116(W) × 140(H) × 213(L) mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
