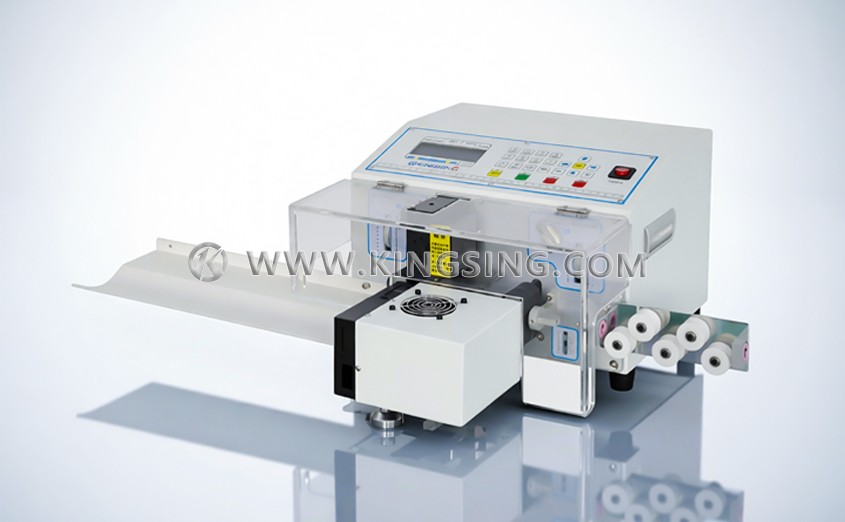

Multi-core Flat Cable Stripping and Twisting Machine

  • Model:KS-W610 Series
  • Wire Size:
  • Net. Weight:
  • Dimension:
  1. This machine is specially designed for processing flat sheathed wire. It integrates the functions of stripping the outer sheath, stripping the core wire and twisting the wire. The copper wires can be twisted together after the core wires have been stripped. The twisting function can be turned on and off freely in the program, and it can also be used as an ordinary wire stripping machine when the twisting function is turned off. This series of models includes 2 sub-models, see technical parameters for details.

  2. The program is powerful, supporting functions such as full stripping, half stripping, and middle stripping. It has a program memory function, which can save the processing parameters of different wires in different program numbers. When switching wires, the corresponding processing parameters can be called out with one key.

  3. The program interface is intuitive and easy to understand. Parameters such as cutting length, stripping length, twisting strength, cutting depth, retracting, and output can be freely set in the program. The functions can be switched at will, and one machine supports many different processing methods, which is very versatile.

Download: (1)
twisting functionOne end twisted, the other end strippedDouble-ended stripped twisted wire
Applicable core area0.1 ~ 2.5mm²(AWG28 ~ AWG13)
Outer sheath stripping lengthWire head:0~100mm,wire tail:0~35mm
Core wire stripping length0~15mm
Cutting length0~100m


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
