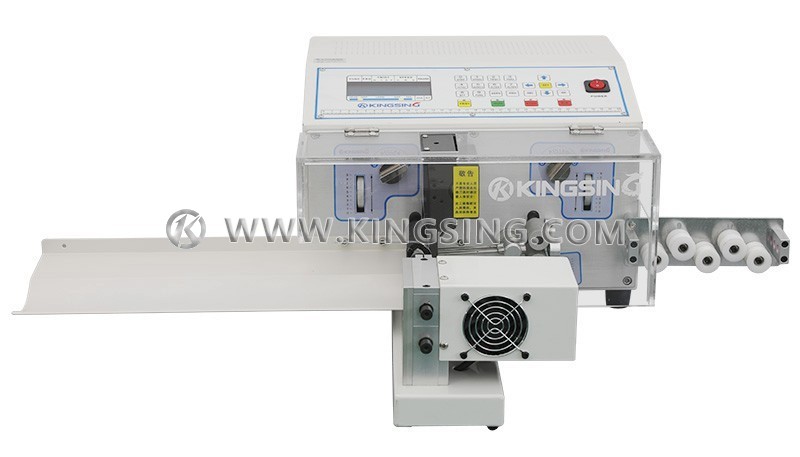

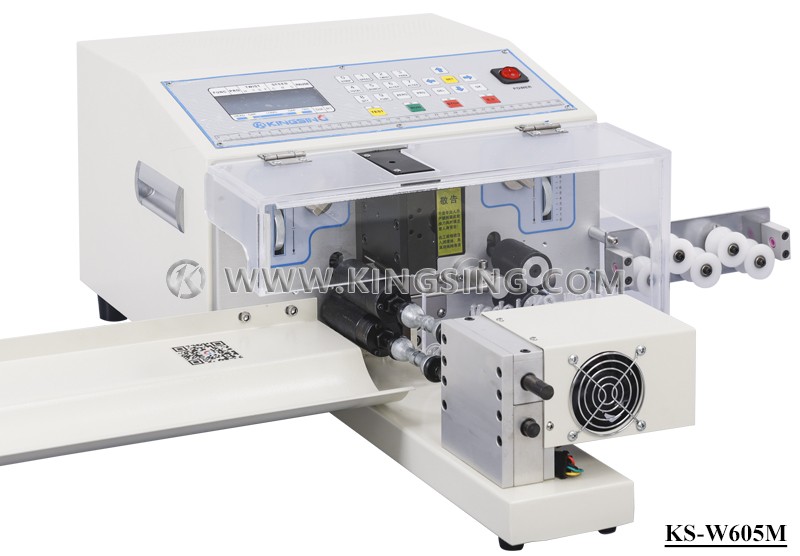

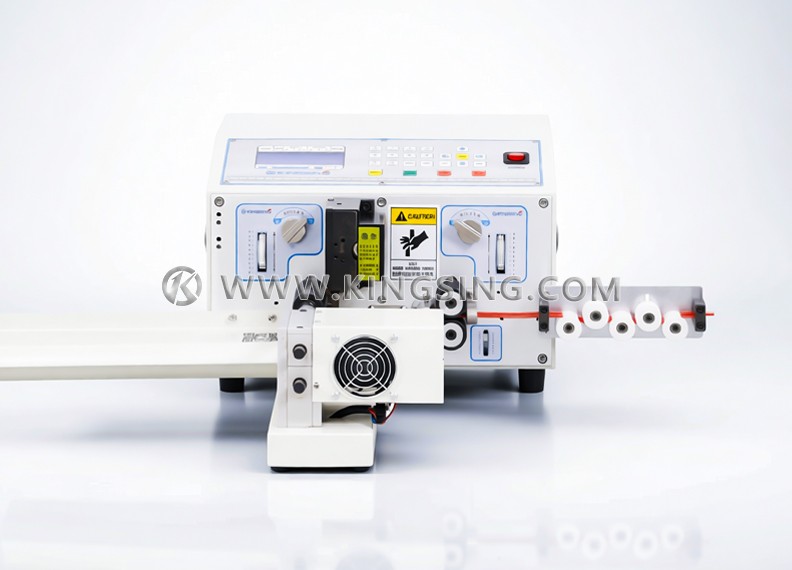

Short Wire Stripping and Twisting Machine

  • Model:KS-W605
  • Wire Size:
  • Net. Weight:
  • Dimension:
  1. KS-W605 is designed for ultra-short wires, support 22mm length wire both ends 3mm stripping & twisting. Except ultra-short wire processing function, this machine also can be used as normal stripping machines to cut, strip and twist long wires.

  2. Conduit jumping function allow longer wire end stripping. KS-W605 adopts stepping motor to control conduit movement, the angle of conduit can be adjusted in the program.

  3. The two sides of blade unit both installed waste wire blowing pipe which can keep the blades clean.

  4. Extraordinary strong program memory function, it is able to store different processing parameters in different program.

Available Wire Size: 0.1 ~ 4.0mm²(AWG30 ~ AWG11)
Max. Conduit Diameter: Φ4.0mm
Cutting Length: 0.1 ~ 100000mm
Stripping Length: Head 0~12mm, End 0~12mm
Max. Middle Stripping Section: 15 places
Memory Function: Max. 100 group of programs
Stripping Accuracy:± (0.002mm× Stripping Length)
Cutting Accuracy:± (0.002mm× Cutting Length)
Speed: 5000~8000pcs/hour
Drive Mode: 4-wheel drive
Display: LCD display with English menu
Blade Material: Hard tungsten steel
Power Rating: 430W
Power Supply: 220V/50Hz 110V/60Hz
Net Weight: 25Kg
Machine Dimension: 400 x 410 x280mm
Twisting Mode Dimension: 190 x 350 x 160mm
