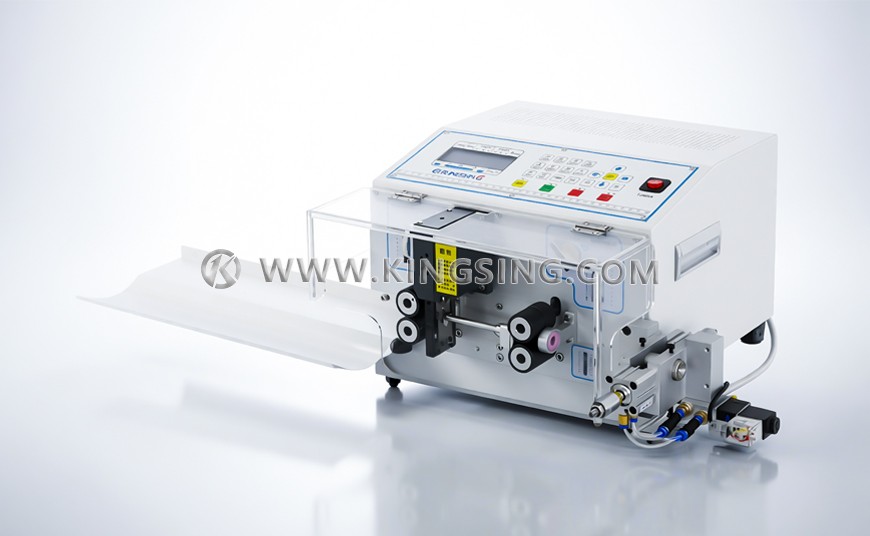

Wire Stripping Machine for Middle Window Stripping

  • Model:KS-W608 Series
  • Wire Size:
  • Net. Weight:
  • Dimension:
  1. This is a wire stripping machine with a middle window. In addition to the 2-head stripping, it can also strip the wire at any position in the middle. The window position and stripping length can be set freely in the program. Wires with different wire diameters need to order corresponding window opening molds. This machine can also close the window opening function, and it can be used as an ordinary wire stripping machine.

  2. The program is powerful, supporting functions such as full stripping, half stripping, and middle stripping. It has a program memory function, which can save the processing parameters of different wires in different program numbers. When switching wires, the corresponding processing parameters can be called out with one key.

  3. The program interface is intuitive and easy to understand. Parameters such as cutting wire length, stripping length, feed depth, retraction, and output can be freely set in the program. Functions such as long wire program, ultra-short wire program, middle wire stripping program, and sheath wire program can be switched at will, and one machine supports many different processing methods, which is very versatile.

  4. Support non-standard customization, our company has strong research and development capabilities, and can customize corresponding functions according to customer needs. For example, blades and conduits can be customized to process special wires such as flat sheathed wires and double wires; a safety shield can also be selected, and the machine will automatically alarm and stop after opening the safety shield;

Download: (1)

Core area

0.1 ~ 4.0mm²


0.1 ~ 10.0mm²


1 ~ 16.0mm²


Full stripping length

wire head:0~35mm

wire tail:0~35mm

Cutting length0~100m
Minimum glue length35mm


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
