Economical Multi-core Wire Stripping and Crimping Machine

  • Model:KS-T5184
  • Net. Weight:
  • Dimension:

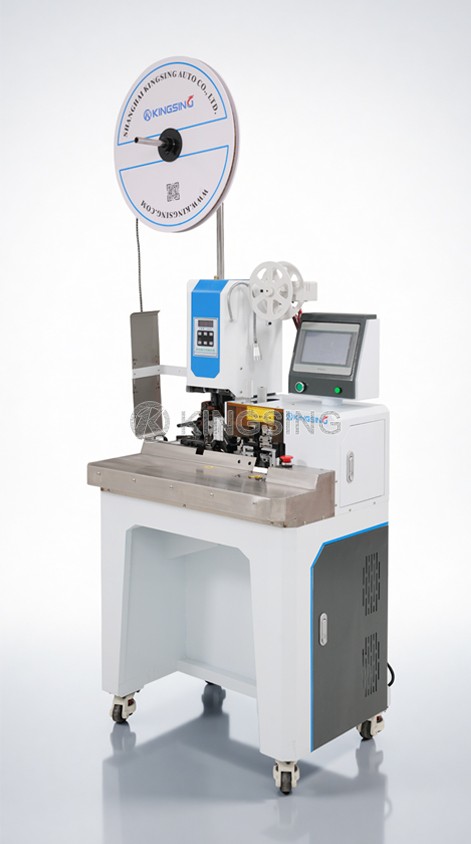

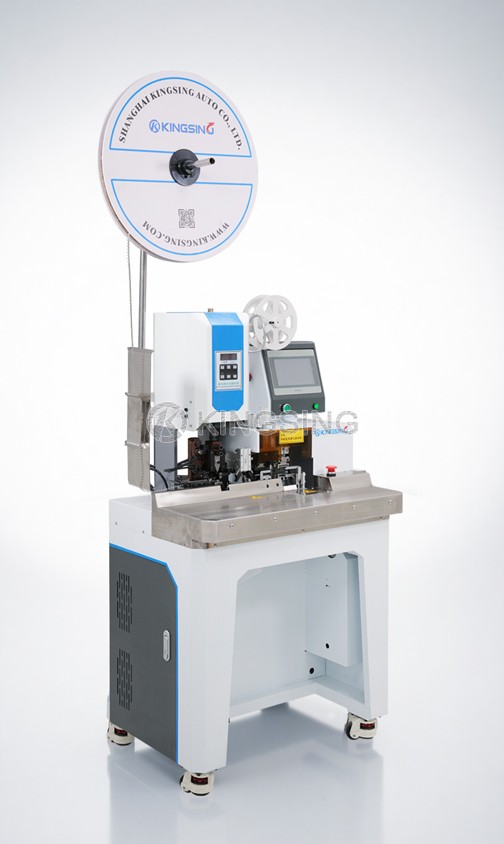

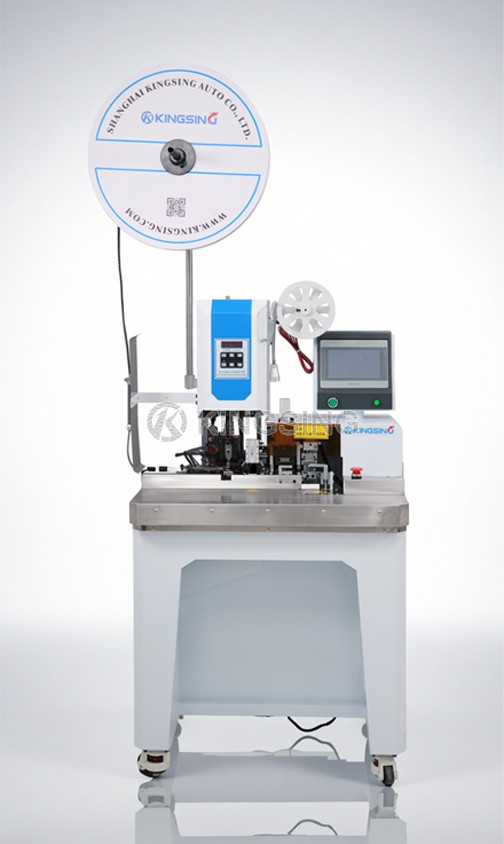

  1. This is an economical sheath wire core wire stripping and crimping machine, which is specially designed for processing the core wires of multi-core sheathed wires. The operator only needs to manually put the wire head into the jig, and the machine can automatically complete the core wire leveling, trimming, stripping, and crimping, which greatly improves the production efficiency of crimping the multi-core wire. The specially designed core wire leveling mechanism can automatically straighten the core wires, and the terminals are on the same straight line after crimping, which is convenient for later insertion into housing.

  2. One machine can process a variety of different products, just replace the corresponding crimping applicator and positioning fixture. The crimping applicator adopts a standard OTP clamping applicator, which supports quick applicator replacement. The color touch screen operation interface, the program memory function can save the processing parameters of different products in the database, and the corresponding processing parameters can be called out with one key when switching products. The machine is also equipped with an automatic paper winder, terminal strip cutting and waste suction device, which can keep the working environment clean.

Download: (1)

Applicable wire: multi-core sheathed wire

Wire diameter: AWG28~18 (0.1~1.0mm2)

Number of core wires: up to 12 cores (more than 12 cores can be processed in multiple times)

Core wire outer diameter: Φ0.6~3.3mm

Outer sheath stripping length: ≥35mm

Core wire stripping length: ≤10mm

Applicable terminal type: cross-feed terminal or straight-feed terminal

Terminal machine output: 2T

Crimp stroke: 30mm

Operation interface: 7-inch color touch screen

Air pressure: 0.5~0.7Mpa

Power supply: 220V 50/60Hz

Net weight: 100kg

Dimensions: 800*600*1350mm


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
