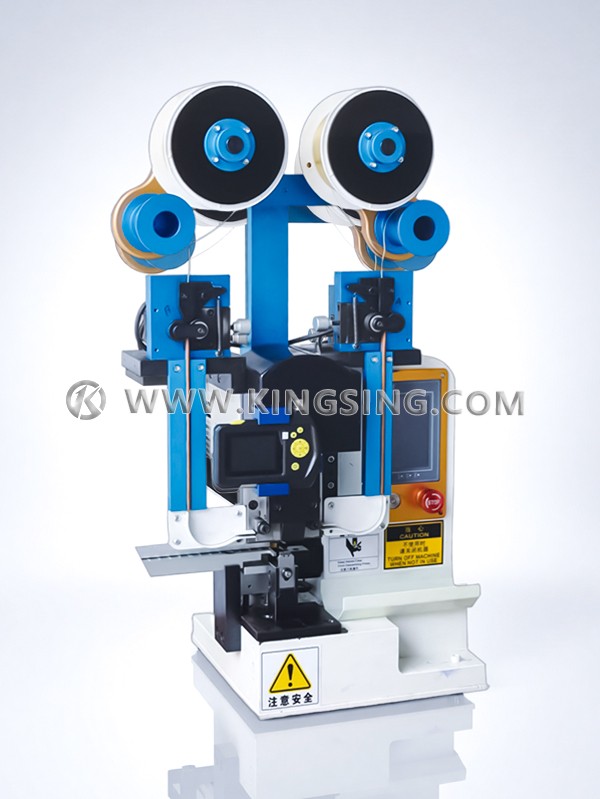

Automatic Feeding Double-wire Copper Tape Splicing Machine

  • Model:KS-C106D
  • Net. Weight:
  • Dimension:
  1. This is a Double-wire copper tape machine, which is often used to connect capacitor pins or other electronic component pins to two wires at the same time. This machine can splice two copper tapes at one time, which greatly improves production efficiency. The vibrating plate automatic feeding system can be selected to realize the automatic feeding of electronic components to the crimping position. The operator only needs to put the two wires into the crimping position at the same time and step on the foot switch, and the machine can complete the riveting of two copper tapes at one time.

  2. The crimping mechanism is driven by a high-precision servo motor, which is specially designed for processing high-end precision wires. One machine can crimp a variety of products of different sizes, and only need to replace the corresponding crimping die. The width of the copper tape is available in various specifications, commonly used are 1mm, 2mm, 4mm, 6mm, etc.

  3. Color touch screen operation interface, feeding length, crimping height and other parameters can be set in the program, to adjust the pressure only need to modify the corresponding parameters, no need to manually adjust the screw. With the program memory function, the corresponding parameters can be called out with one key after changing the mold or switching products, saving debugging time.

KINGSINGKINGSINGKINGSING


Applicable wire diameter: AWG22~14 (0.3~2mm2)

Maximum pressure: 2T (3T models can be customized)

Crimping time: ≈3 seconds

Crimping accuracy: ±0.05mm

Copper tape width: 1~6mm

Copper tape length: ≤30mm

Operation interface: color touch screen

Optional configuration: vibrating plate automatic feeding system

Motor power: 750W

Voltage: 220V 50/60Hz (110V can be customized)

Net weight: 72kg

Dimensions: 570*380*760mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
