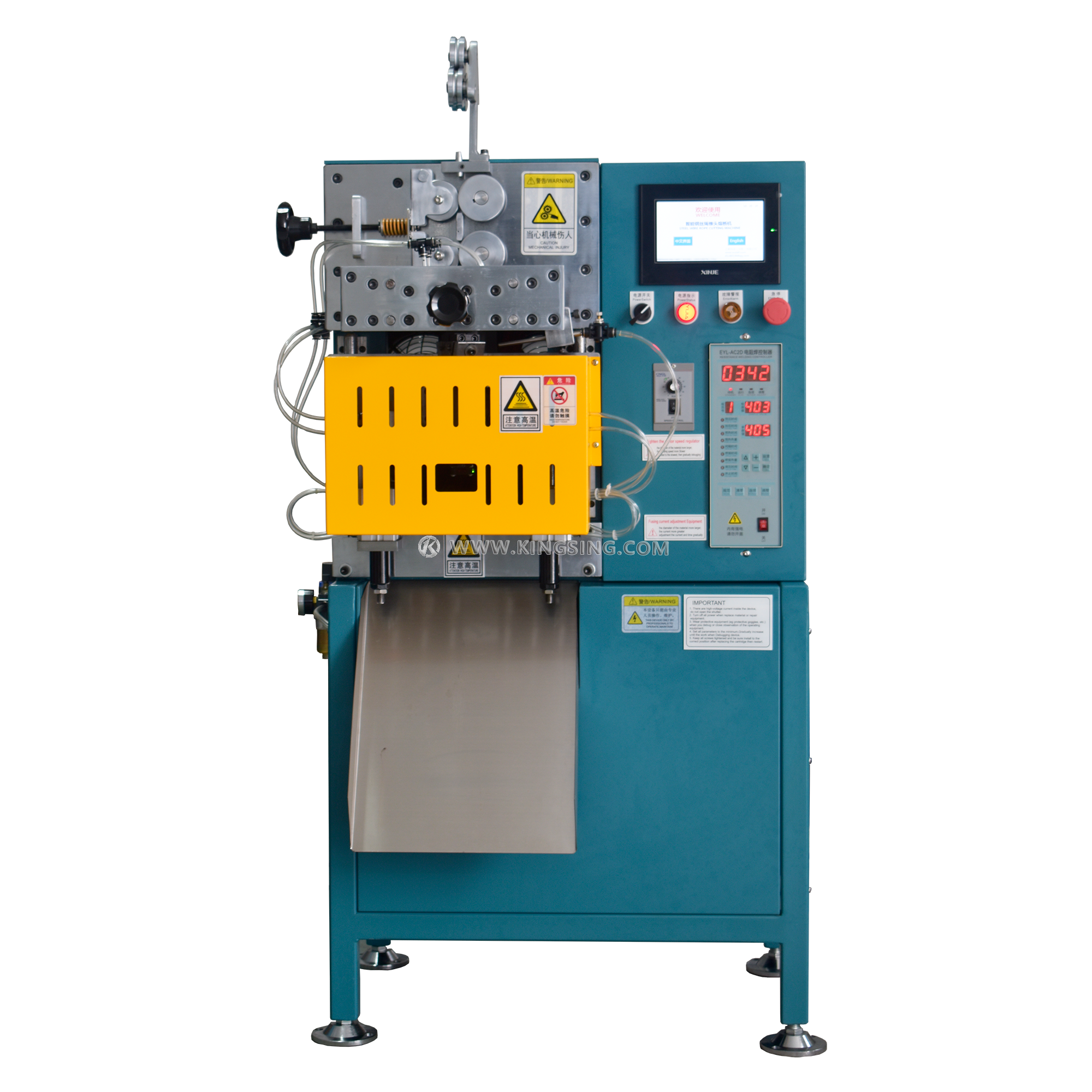

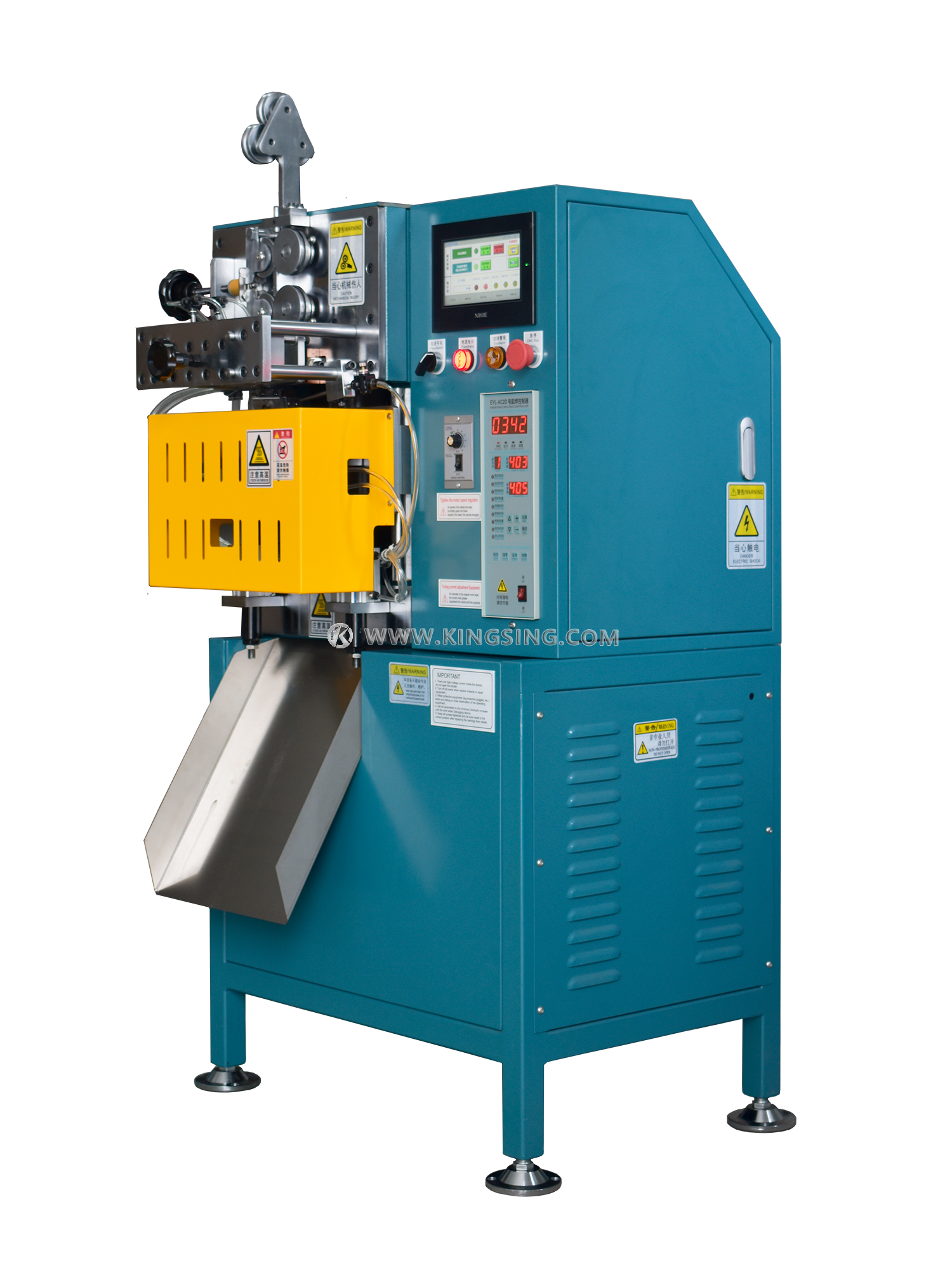

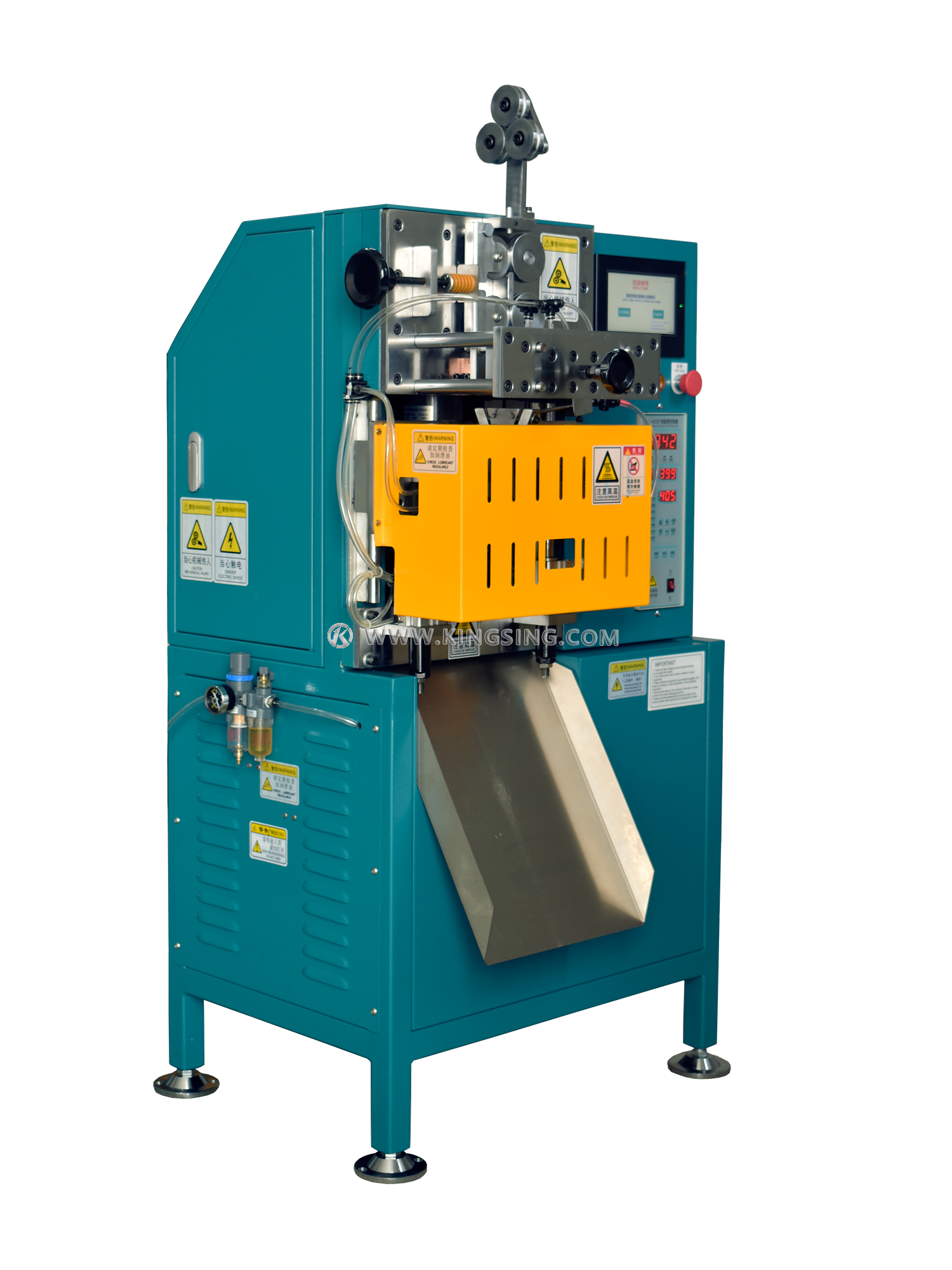

This is a fully automatic wire rope hot melt cutting machine which is suitable for cutting wire ropes with OD 1-5mm. The cutting edge is fused into a cone shape, so the steel wire will not spread out, and the maximum diameter of the cone is smaller than the outer diameter of the wire rope.
Color touch screen operation interface, the length of the cone head and the cutting length of the pointed head can be adjusted simply. One person can handle serval machines at the same time.
The wire rope hot melt cutting machine is mainly used to process various lead-sealed wire ropes, lock wire ropes, and sealing strip wire ropes. It can automatically cut to length and fuse both ends into a cone shape, which can save multiple processes, reduce production costs and increase production capacity. It is widely used in medical equipment, auto parts, construction safety, office furniture, bicycles, sports equipment and other industries.
| Model | KS-R15H-1 | KS-R15H-2 |
| Availabel Wire Size | Φ1~3mm | Φ2~5mm |
| Min. Cutting Length | 150mm | |
| Max. Cutting Length | 30 meters | |
| Cut Speed | 100pcs/hour (Length=300mm, OD=2mm) | |
| Length Tolerance | ±(0.2+L×2‰) L=Cutting Length | |
| Air Source | 0.4~0.6MPa | |
| Power Supply | 380V 50/60Hz | |
| Net. Weight | 300Kg | |
| Dimension | 800×700×1500mm | |
 | ||
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
