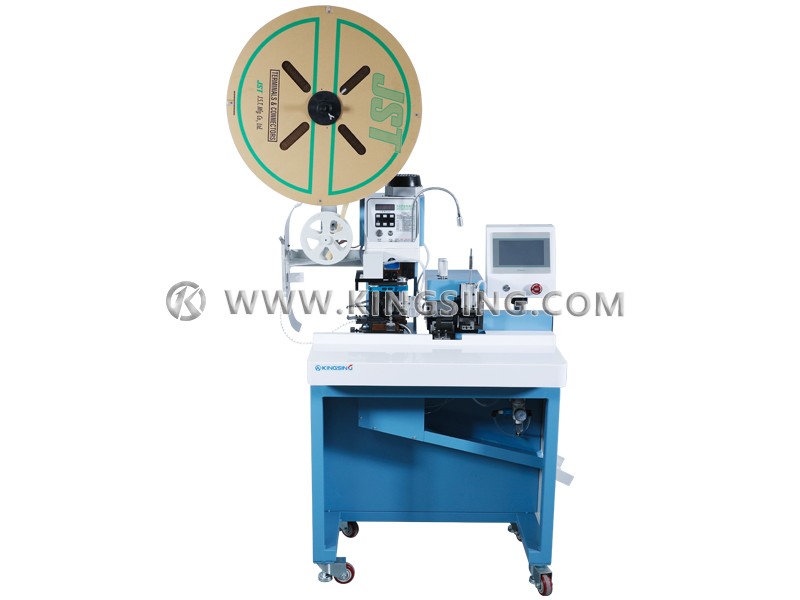

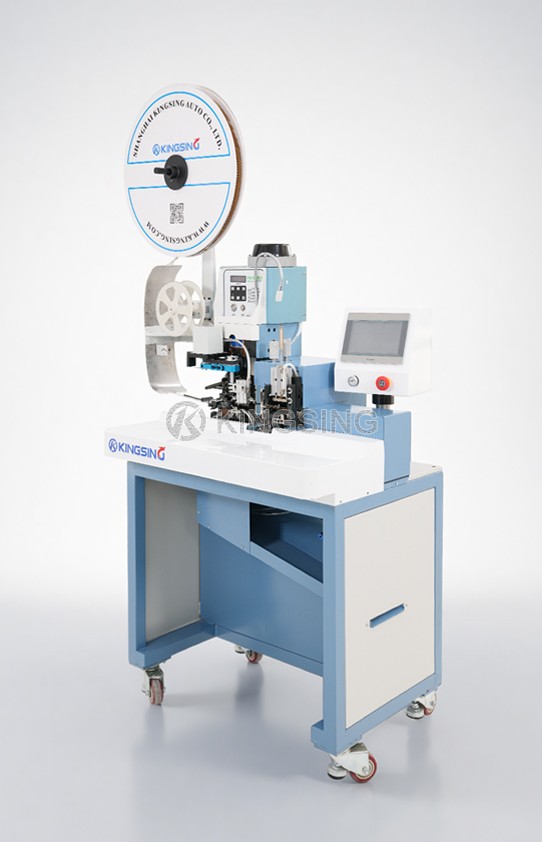

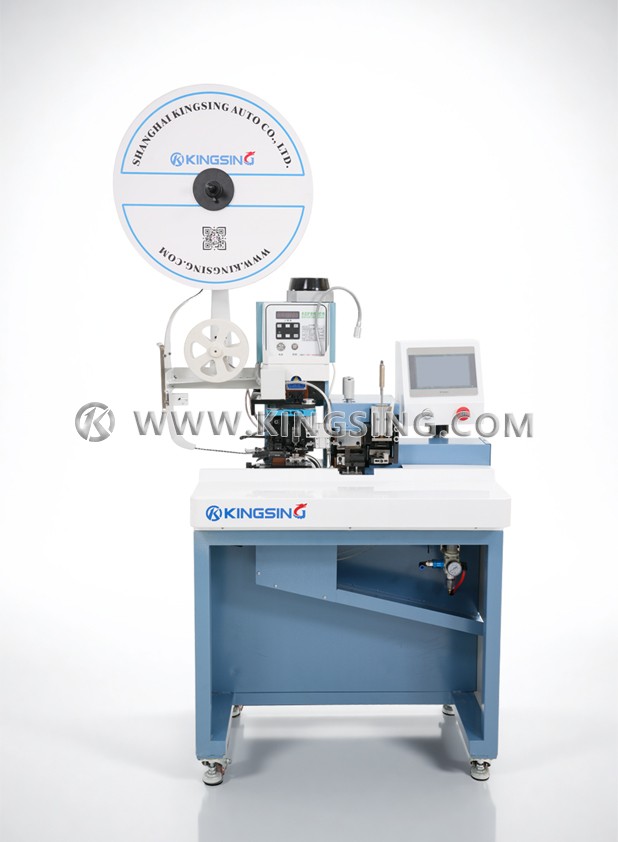

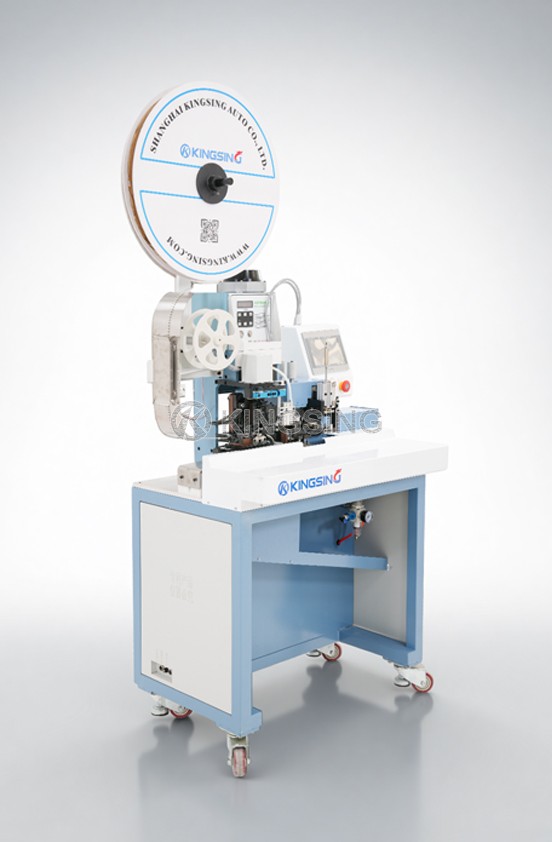

Multi-core Wire Automatic Stripping and Crimping Machine

  • Model:KS-T5183
  • Net. Weight:
  • Dimension:
  1. This machine is specially designed for processing the core wire of multi-core sheathed wire. The sheathed wire only needs to strip the outer sheath in advance, and the core wire does not need to be stripped. The operator only needs to put the wire ends into the jig, and the machine can automatically complete the actions of core wire leveling, trimming, stripping, and crimping terminals. The specially designed core wire leveling mechanism can automatically arrange the core wires. After crimping, the terminals are on the same straight line, which is convenient for later insertion of the housing. This machine is also suitable for processing cables, which can process up to 20Pin cables. The cables need to be divided in advance before being put into the machine for stripping and crimping terminals.

  2. One machine can process a variety of different products, just replace the corresponding crimping die and positioning fixture. The crimping die adopts a standard OTP clamping die, which supports quick die replacement. The color touch screen operation interface, the program memory function can save the processing parameters of different products in the database, and the corresponding processing parameters can be called out with one key when switching products. The machine is also equipped with an automatic paper winder, terminal strip cutting and waste suction device, which can keep the working environment clean.


Download: (1) (2)

Applicable wire: sheath wire, flat wire, double wire

Applicable wire diameter: AWG28~18 (0.1~1.0mm2)

Number of core wires: up to 12 cores (more than 12 cores can be processed in multiple times)

The maximum number of pins in the cable: 20Pin

Core wire outer diameter: Φ0.6~3.3mm

Outer sheath stripping length: ≥25mm

Wire length: ≥25mm

Core wire stripping length: ≤20mm

Applicable terminal type: horizontal feed terminal or straight feed terminal

Terminal machine output: 2T

Crimp stroke: 30mm

Control system: PLC

Operation interface: 7-inch color touch screen

Air pressure: 0.5~0.7Mpa

Working voltage: 220V 50/60Hz

Net weight: 118kg

Dimensions: 800*600*1350mm


Different numbers of core wires have different requirements for the stripping length of the outer sheath. For each additional core wire, the stripping length of the outer sheath needs to be increased by about 2.5mm. The larger the outer diameter of the core wire, the longer the stripping length of the outer sheath needs to be increased accordingly. The following is a comparison table of the shortest stripping length of the outer sheath corresponding to the number of different core wires (for reference only, special requirements can be customized, for example, ultra-short wire models can be customized, and 10mm crimping terminals with core wire retention glue are supported):

Core wire quantityCore diameter (example)Minimum stripping length of outer sheath
≤3 coresΦ1.3mm≥22mm
4 coresΦ1.3mm≥25mm
5 coresΦ1.3mm≥27.5mm
6 coresΦ1.3mm≥30mm
7 coresΦ1.3mm≥32.5mm
8 coresΦ1.3mm≥35mm
10 coresΦ1.3mm≥40mm
20 coresΦ1.3mm≥65mm

Note:

  • In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
