USB2.0 Connector Soldering Machine

  • Model:KS-W22A
  • Net. Weight:130kg
  • Dimension:1000×650×1200mm

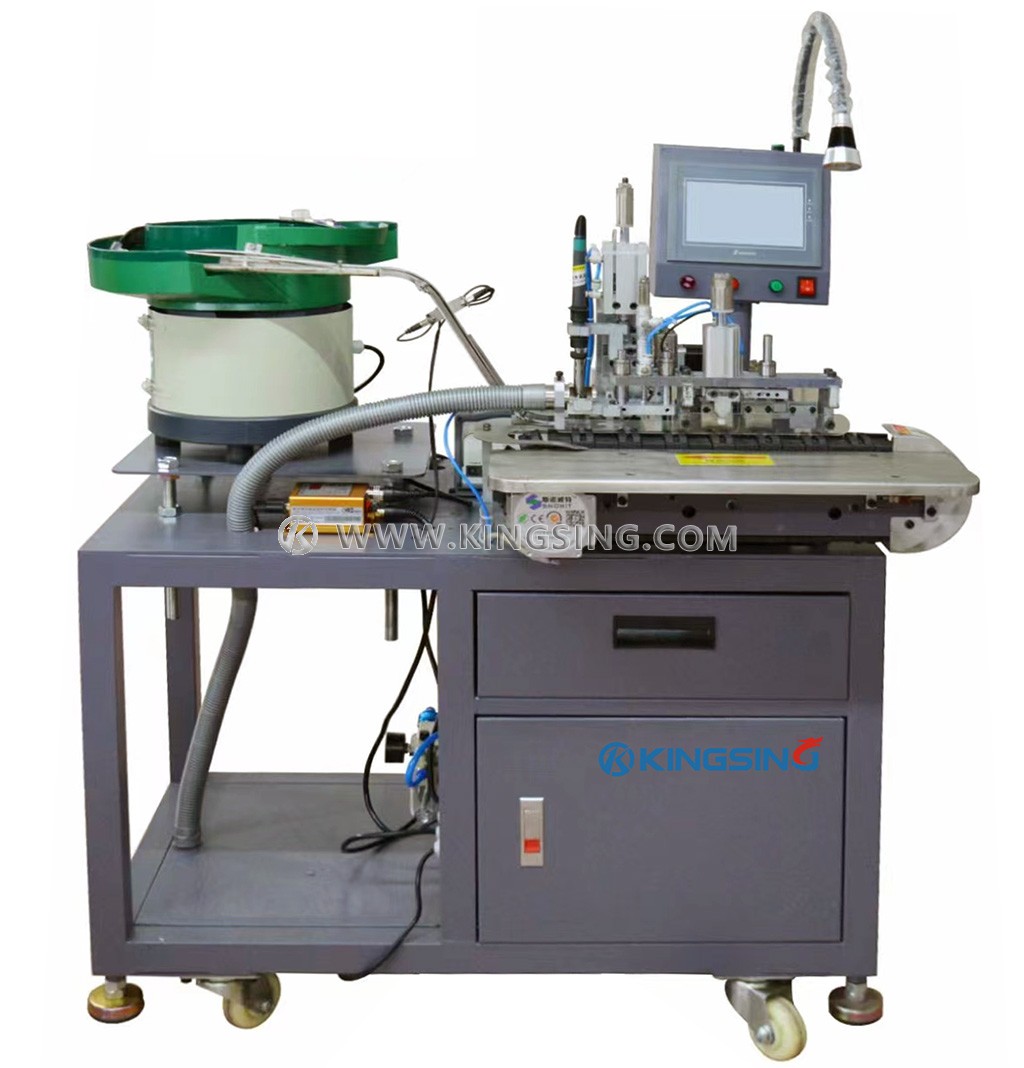

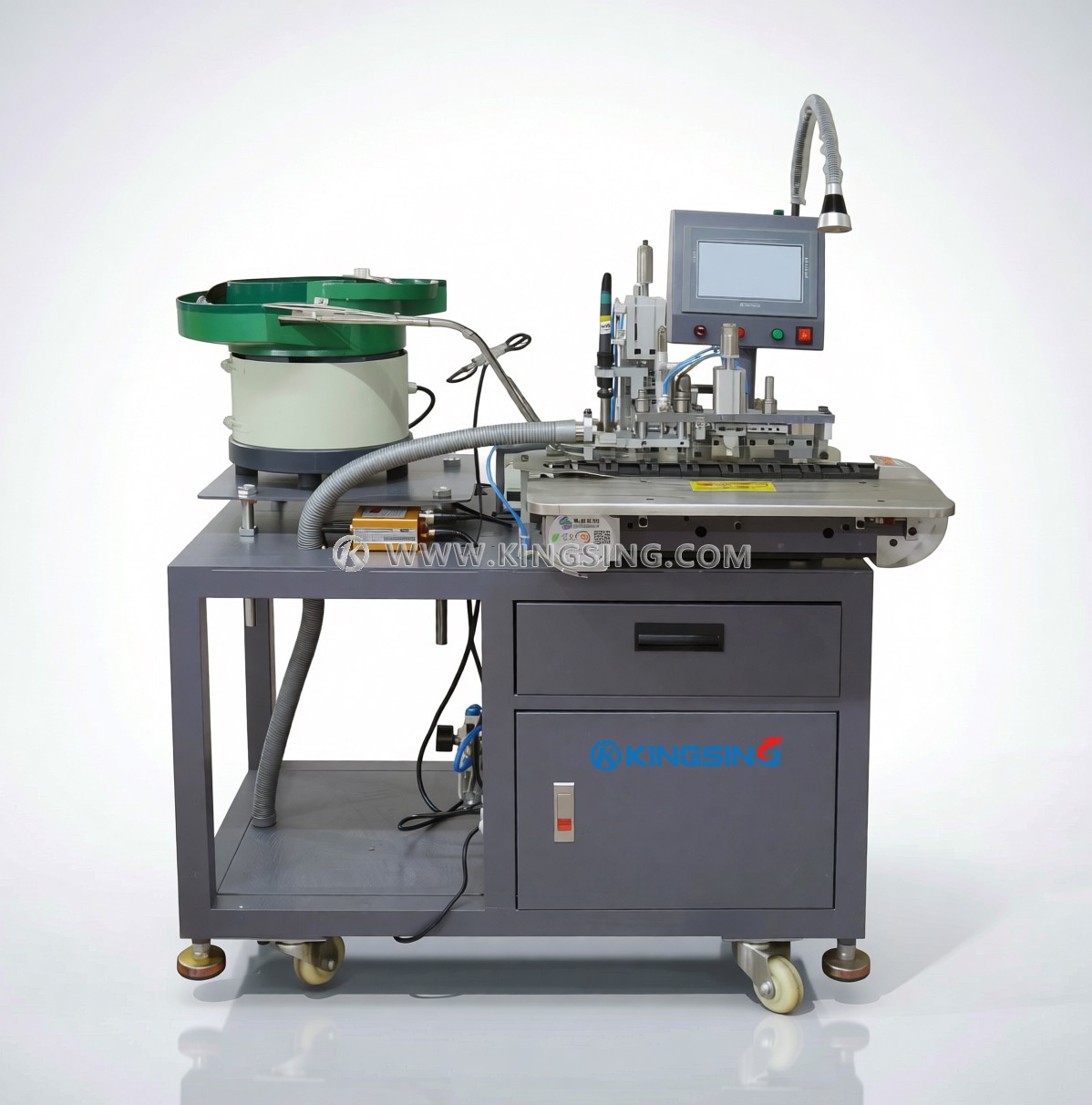

The USB connector soldering machine adopts a vibration plate to feed the loose usb connectors automatically, the operator only need to simply place the cable head into certain working area, then the machine can automatically strip the core wires and solder it to the USB connector. This machine is suitable for all the following types of USB connectors: USB2.0 A/M, USB2.0 A/F, USB2.0 B/M, USB2.0 B/F, USB Mini B, USB Micro B, USB Type-C 2.0, Apple iPhone, etc.

This machine needs to be customized according to the samples, one machine can only process one product.


Download: (1)

Availabel Wire Size: Φ2.6~6.0mm

Stripping Length: 1~3mm

Soldering Length: <5mm (Can be customized)

Capacity: 900~1500pcs/hour

Air Source: 0.4~0.6Mpa

Power Supply: 220V 50/60Hz

Net. Weight: 130kg

Dimension: 1000×650×1200mm
