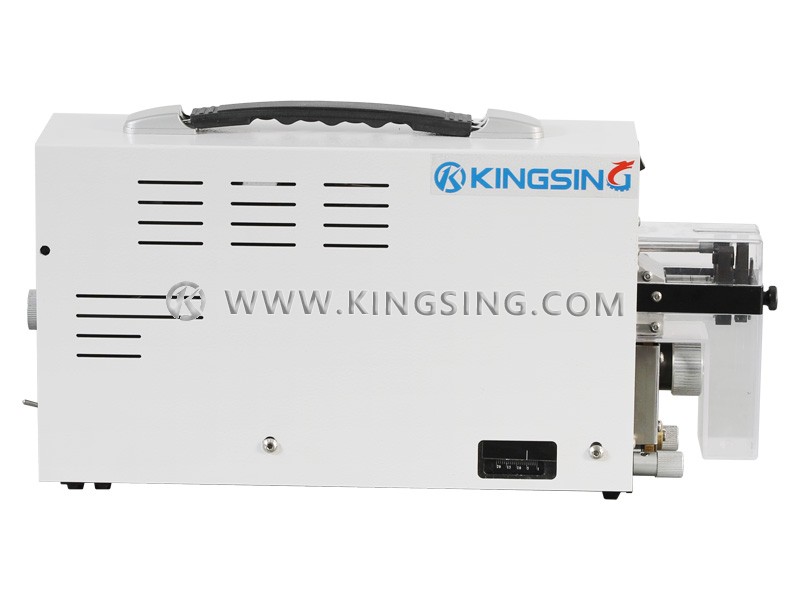

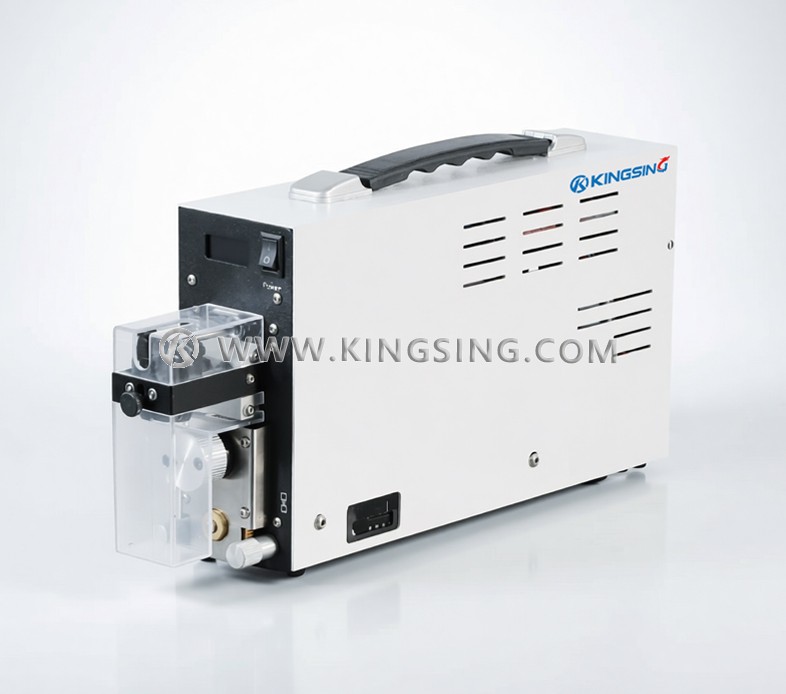

Semi-automatic Wire Stripping Machine

  • Model:KS-W3361
  • Wire Size:
  • Net. Weight:
  • Dimension:
  • Light and portable;

  • Small size, save space;

  • Excellent price/performance ratio;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Easy operation and low technical requirements for operators;

  • Pure electric control, no need to connect to air, not affected by air pressure, easy operation, higrstripping precision;

  • Wide range of applications, it can process various types of wires, such as loose wire, single corewire, multi strand copper wire, rubber wire, PUR PVC Teflon wire, etc.

Download: (1) (2)

Available Wire Size: 0.03~4mm2(32~12AWG)

Max.Wire Diameter: 4.2mm(0.17in)

Max. Stripping Length: 20mm(0.78in)

Wire Stripping Accuracy: full-stripping ±0.5mm(0.019in), half-stripping ±0.6mm(0.023in)

Environment Humidity: 30%~80%RH(no condensation at 40℃)

Diameter Setting Accuracy: 0.01mm(0.00003in)

Processing Time: 0.5s

Power Supply: AC 220V/50HZ or 110V/60HZ

Operation Temperature: 0~40℃

Safety Cover: Optional

Power Rate: 120W

Net Weight: 4.5Kg(9.921lbs)

Dimension: 380*85*188mm(14.96×3.35×7.40in)


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
