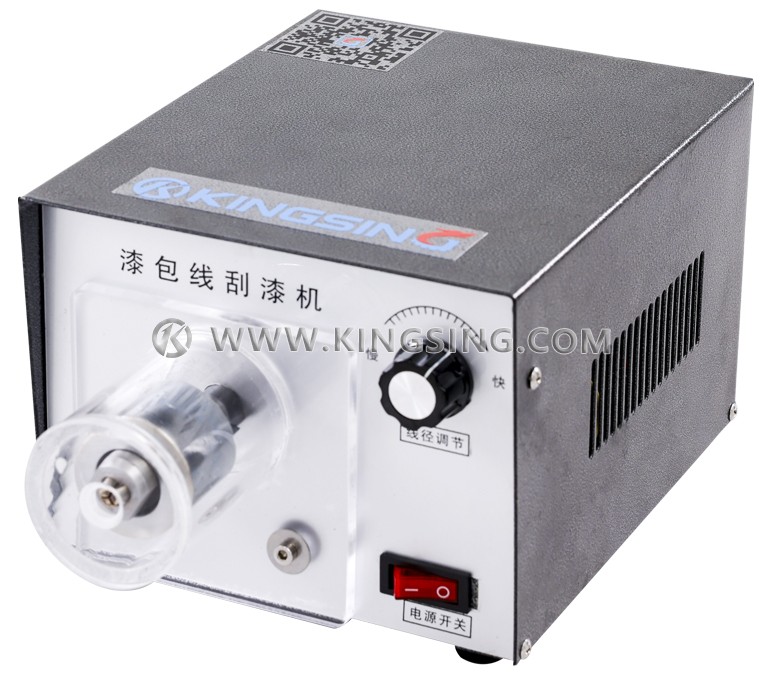

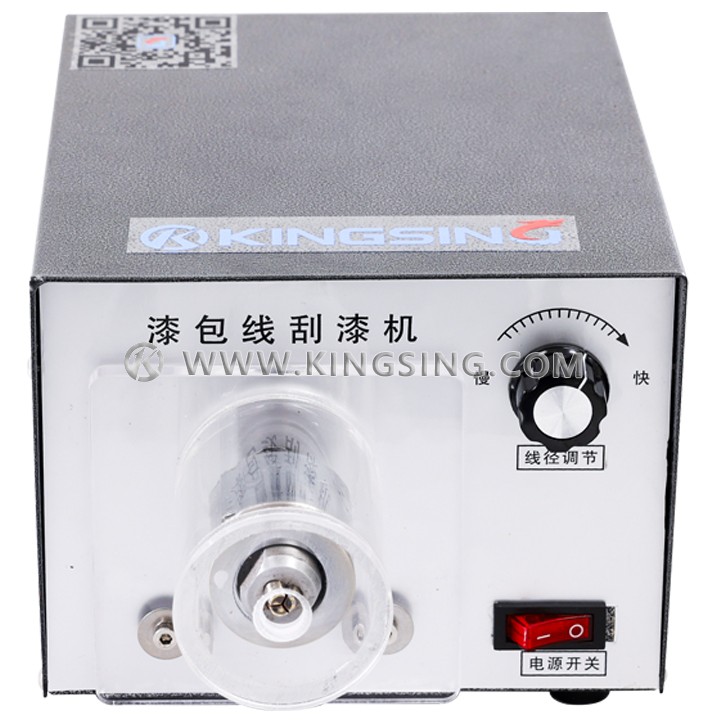

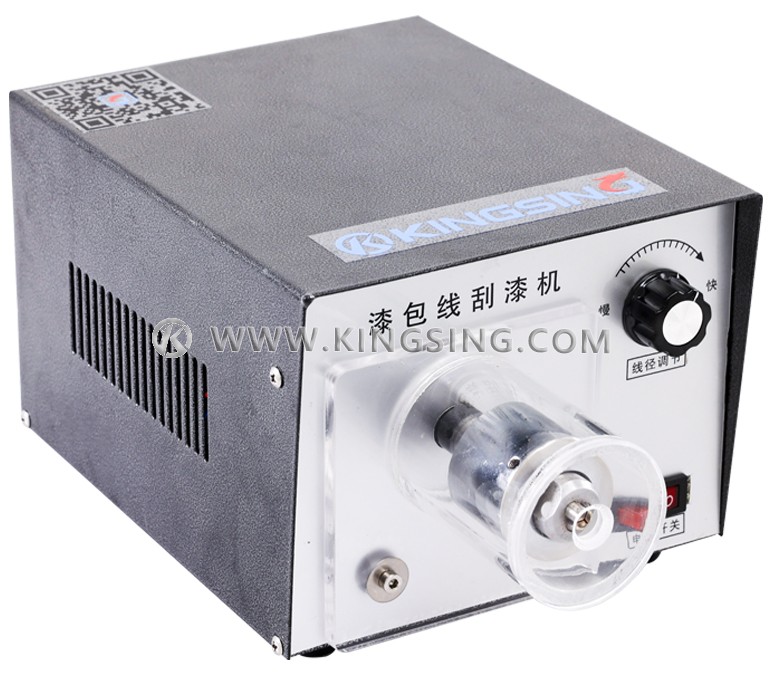

Enamel Covered Wire Stripper

  • Model：KS-E508
  • Wire Size：
  • Net. Weight：
  • Dimension：
Online Inquiry

The enamel covered wire stripper uses a high speed rotary stripping blade which is precisely adjustable to match the diameter of the bare conductor, surface insulation is easily removed, for entire range of wire sizes without any blade change.

Download: (1)

Wire Size: 0.5 - 3.0mm (can use one blade if the wire size fits)
Stripping Length: 3 - 30mm
Speed Adjustment: stepless speed regulation
Power Supply: 220V / 50Hz
Power Rating: 100W
Net Weight: 6.0kg
Dimension: 270 × 170 × 130mm


Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.



Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
