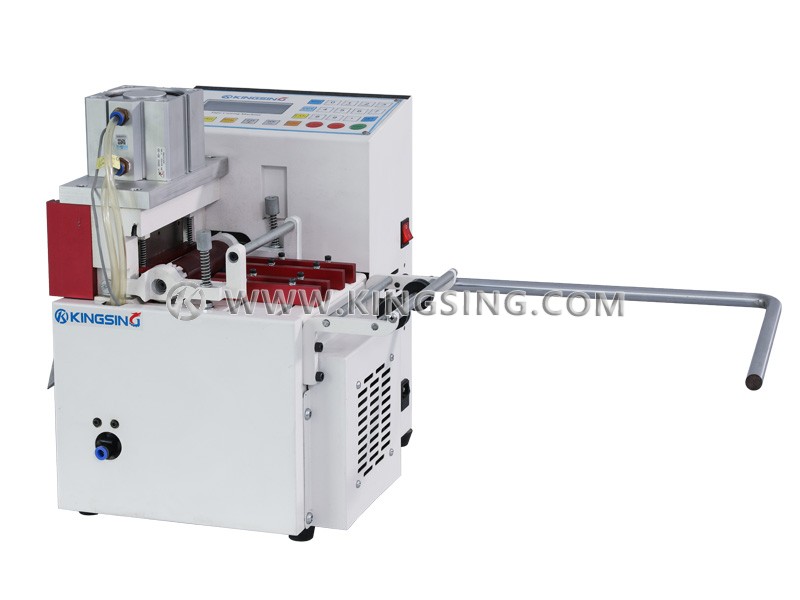

Heavy-duty Cold Knife Tape Cutting Machine

  • Model：KS-B100CQ
  • Max. Width：100mm
  • Blade Type：Cold Knife
  • Net. Weight：34kg
  • Dimension：415×380×410mm
Online Inquiry

  • Light and portable;

  • Small size, save space;

  • Excellent price/performance ratio;

  • Easy to operate;

  • Designed by human structural mechanics to reduce fatigue strength;

  • Digital adjustment for the length of belt length, cutting length and cutting times;

  • A wide variety of belts can be used in this series of machine;

  • With a color display control panel, so convenient and comfortable is the operation or the production;

  • This machine is equipped with imported high-quality tungsten blade;

  • Material feeding is driven by stepping motor which has high reliability and long lifespan of usage;

  • Parameters have set in system can be saved automatically and permanently.

Download: (1) (2)

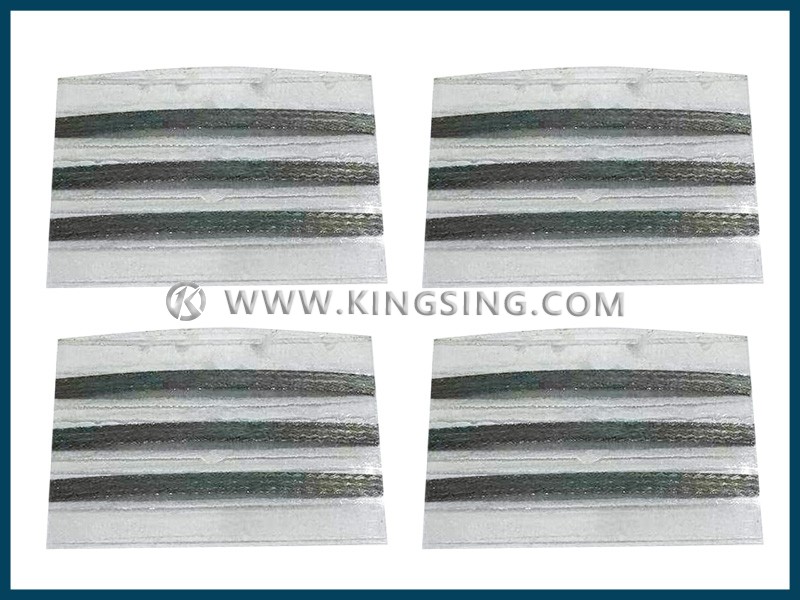

Applicable Material:flat ribbon cable, copper sheet, flexible tubes, braided copper wire, etc.

Cutting Speed:1800~4800 pcs/h(changed according to the cutting length)

Cutter Type:cold knife

Cutting Length:0.1~9999.99mm

Cutting Width:Max. 100mm

Power Supply:AC 220V 50HZ

Air Pressure:0.5~0.7Mpa

Power Rating:180W

Weight:35Kg

Dimension(L*W*H):780*380*460mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
