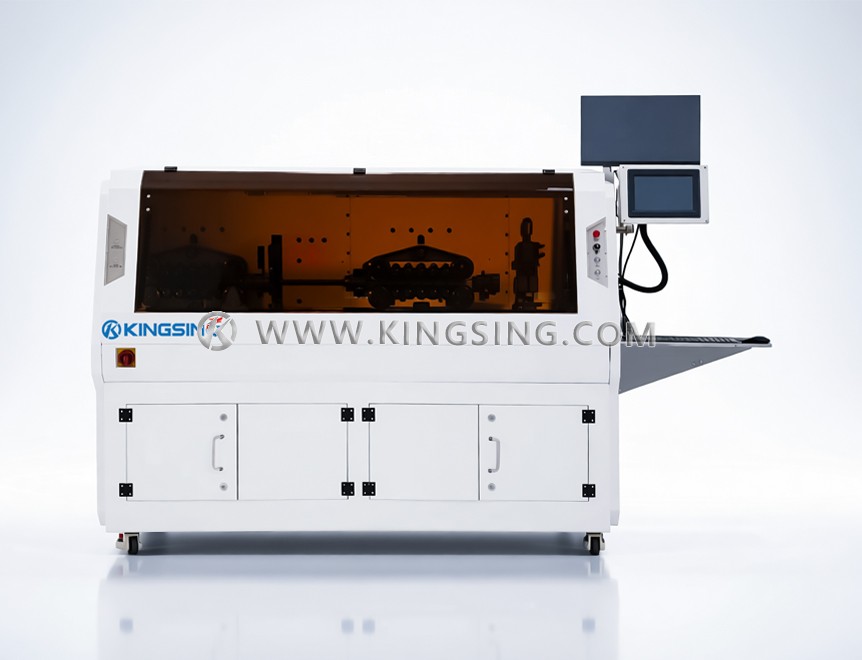

Automatic Large Cable Cutting and Stripping Machine

  • Model:KS-W6211 Series
  • Wire Size:
  • Net. Weight:
  • Dimension:
  1. This series of wire stripping machines is a high-end full-servo model. All motors use high-precision servo motors, which are specially designed for processing large cables. There are multiple sub-models to choose from (see technical parameters for details). The wire feeding mechanism uses an extended pulley to feed material, which greatly increases the contact area between the wire and the wire feeding wheel. It can ensure no slippage when processing large cables, provide sufficient power for stripping wires, and at the same time reduce pressure and reduce damage to wire sheaths, and there is no indentation on the surface of wire insulation.

  2. The knife holder adopts a double-blade structure, and 2 sets of blades are installed on the blade holder. The program can specify which set of blades to use to perform the current process, so different blades can be used for cutting and peeling. For example, use a V-shaped blade to cut, and use a round-shaped blade to strip the wire, which will not affect the cutting life of the blade and ensure the stripping effect.

  3. The upper and lower sets of wire feeding wheels are driven by positive and negative screw rods, which can be opened and closed at the same time, when processing wires of different thicknesses. The position of the center line of the wire can always be kept unchanged, and the wire is always aligned with the center of the knife edge, which can effectively prevent the inclination of the stripping edge. The pressure of the wire feeding wheel can be set directly in the program, no need to manually adjust the screw, it is very convenient to switch between different wire diameters.

  4. This machine also has the function of automatic lifting wheel and jump guide. The automatic lifting wheel means that the outlet wheel can automatically open for avoidance when stripping the wire head, and the jump guide function means that when the tail of the wire is stripped, the wire inlet guide is automatically lifted for avoidance, which greatly increases the stripping length range.

  5. The program memory function can store the processing parameters of different wires into different program numbers, and the corresponding program can be called out with one key when processing the wire again. One machine can complete the processing of various wires, which is very versatile.

  6. Support non-standard customization, we have strong research and development capabilities, and can customize special functions according to customer needs. Common optional features include:

  • Customized blades and conduits with special shapes are used to process flat sheathed wires, double wires, flat wires and other wires. The flat sheathed wires can be stripped from the inner and outer layers.

  • Add a rotary blade to strip the wire, first use the rotary blade to cut the wire sheath 360 degrees, and then pull the wire sheath off, to deal with occasions with strict stripping requirements.

  • A scribing jig can be added. For wires with a long stripping length and a tight sheath, the scribing jig can be used to split the wire sheath on both sides to reduce the stripping resistance.

  • Add inkjet printers, wire number hot stamping machines and other equipment to realize coding while stripping wires.

  • Install the wire-taking manipulator and conveyor belt to ensure that the wire is put into the receiving tray straight and neatly when processing long wires.

  • With the addition of an automatic winding machine, the processed wire can be automatically wound into rolls for easy collection.

  • Optional computer industrial control system (Windows operation interface), supports MES system and document import, remote order dispatch, automatic coding, etc.

Download: (1) (2)
ModelApplicable core areaFeatures

KS-W6211A

10 ~ 300mm²

300mm² standard model

KS-W6211B

10 ~ 300mm²

With rotary blade stripping function

KS-W6211S

10 ~ 300mm²

With piercing and scribing function

KS-W6211R

10 ~ 300mm²

With automatic winding and retracting wire function

KS-W6211D
10 ~ 400mm²400mm2 enlarged type

Maximum cutting length: 1000 meters

Cutting accuracy: 0.002*L (L=cutting length)

Maximum stripping length: wire head 1000mm, wire tail 300mm

The largest diameter of the catheter: Φ42mm

Motor type: all use servo motor

Operation interface: 10-inch color touch screen

Program saving: up to 100 groups of programs can be stored

Winding and retracting the wire: the winding machine is optional, and the standard machine does not include the looping function

Optional configuration: computer industrial control system supporting MES

Net weight: 750kg

Dimensions: 1720*700*1290mm

Note:

  • In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.

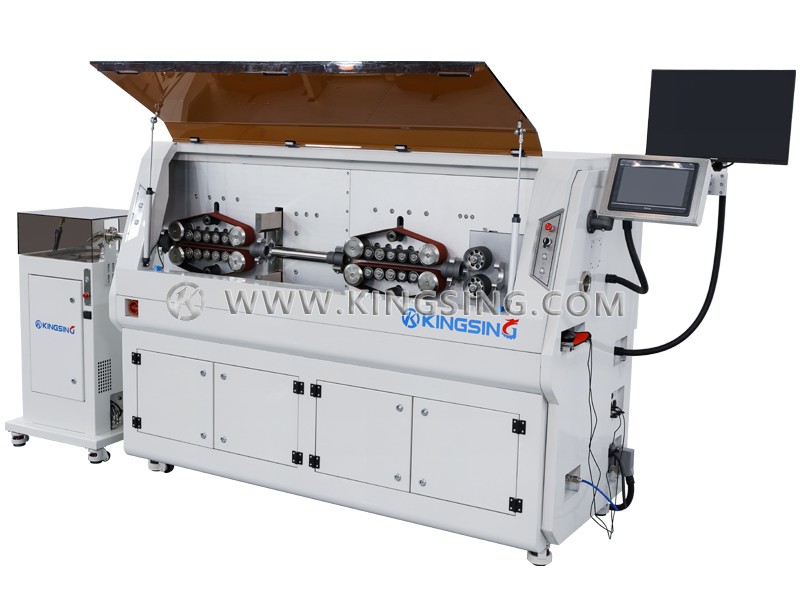

The looping wire collection function is shown in the figure below, the leftmost one is the looping wire collection machine:收线打圈机
