This machine is specially designed for cutting steel wire ropes, it adopts belt feeding which is beneficial to increase the contact area between the feeding wheel and the wire rope to prevent slippage during feeding.

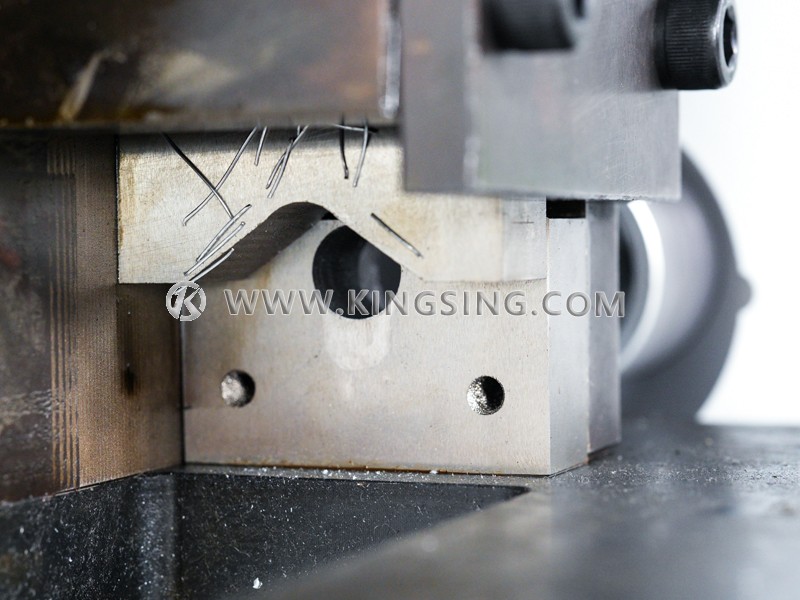

The cutting unit adopts pneumatic & hydraulic driven, it has strong power and can cut steel wire rope with an outer diameter of 20mm at most.
The color touch screen operation interface is intuitive and easy to understand. Even inexperienced can operate quickly.
Tube Diameter：Max.Φ20mm
Cutter Driven Mode：Pneumatic and hydraulic
Cutting Length：0.1~999999mm
Cutting Accuracy:±L×0.1mm(L=cutting length）
Speed：700 pcs/hour (Depends on cutting length)
Power Supply：220V50Hz
Power Rating：750W
Air Pressure：0.5-0.7MPa (Must be clean, dry and stable compressed air)
Net Weight：68Kg (Main machine)；72Kg (Hydraulic cutting machine)
Dimensions (L x W x H)：700*450*420mm(Main machine)；300*260*1050mm(Hydraulic cutting machine）
Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.
Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.
Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
