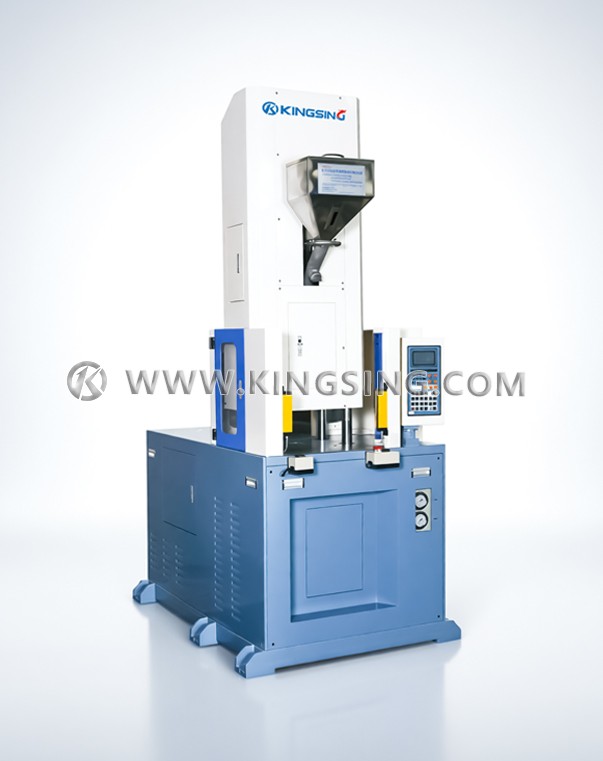

Plug Vertical Injection Moulding Machine

  • Model:KS-J60T
  • Net. Weight:2600kg
  • Dimension:1800×1400×3000mm

This is a power cord plug injection molding machine, suitable for injection molding of power plugs, data cables, USB, audio cables, chargers, connectors and other products. The injection mold needs to be customized according to the product, and the quantity that can be injected at a time depends on the size of the product.

It is suitable for various thermoplastics: PVC, TPR, TPE, PE, PBT, PC, PS, PP, PU, PA, POM, PMMA, PET, PPO, PPS, ABS, LCP, acrylic, melamine, nylon , polypropylene, polystyrene, etc.


Download: (1)
Screw DiameterΦ28mmΦ32mmΦ36mm
Injection Pressure212Mpa (2170kgf/cm2)162Mpa (1661kgf/cm2)128Mpa (1312kgf/cm2)
Theoretical Shot Volume80cm3104cm3132cm3
Max. Shot Weight74.4g (2.6oz)96.7g (3.4oz)
122.9g (4.3oz)
Injection Rate73cm3/s95cm3/s121cm3/s
Injection Speed118mm/s

Screw Ration Speed: 0~240rpm

Nozzle Out From Platens: ≥45mm

Clamping Force: 60ton (588KN)

Clamping Stroke: 200mm

Min. Mould Thickness: 180mm

Max. Opening: 380mm

Distance Between Columns: 460*330mm

Max. Mould Size: 440*400mm

Ejector Distance: 40mm

Ejector Force: 2.7Ton (26.5KN)

System Pressure: 13.7Mpa (140kgf/cm)

Oil Tank Capacity: 230L

Motor Power: 11KW (15HP)

Net. Weight: 2600kg

Dimension: 1800×1400×3000mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
