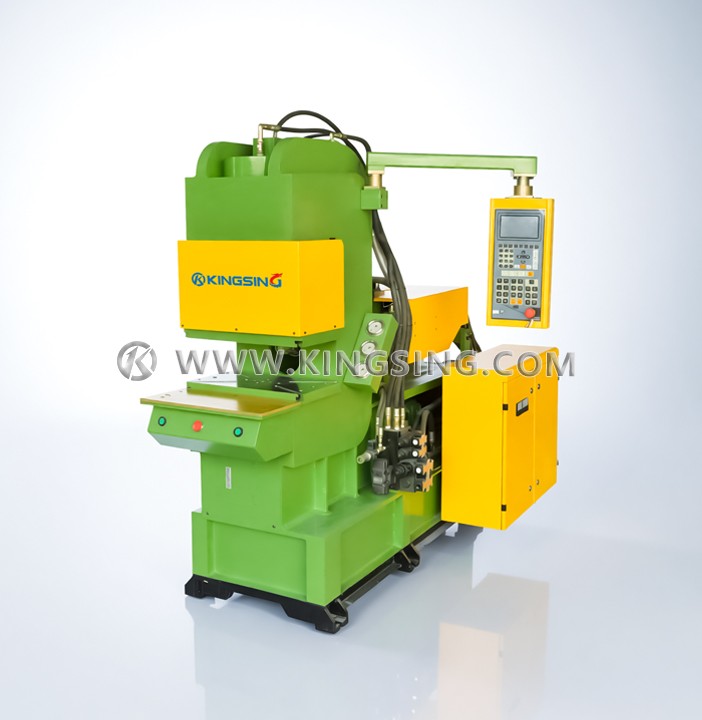

Cable Plug C-Type Injection Moulding Machine

  • Model:KS-J55C
  • Net. Weight:2800kg
  • Dimension:2500×1100×2000mm

This is a power plug injection molding machine, suitable for injection molding of power plugs, data cables, USB, audio cables, chargers, connectors and other products. The injection mold needs to be customized according to the product, and the quantity that can be injected at a time depends on the size of the product.

It is suitable for various thermoplastics: PVC, TPR, TPE, PE, PBT, PC, PS, PP, PU, PA, POM, PMMA, PET, PPO, PPS, ABS, LCP, acrylic, melamine, nylon , polypropylene, polystyrene, etc.


Download: (1)
Screw DiameterΦ30mmΦ38mmΦ45mm
Injection Pressure242Mpa (2468kgf/cm2)151Mpa (1545kgf/cm2)108Mpa (1102kgf/cm2)
Theoretical Injection Volume106cm3170cm3238cm3
Max. Injection Weight98g (3.5oz)158g (5.5oz)
221g (7.7oz)
Injection Rate70cm3/s112cm3/s158cm3/s
Injection Speed93mm/s

Screw Ration Speed: 0~240rpm

Clamping Force: 55ton (539KN)

Clamping Stroke: 200mm

Min. Mould Thickness: 175mm

Max. Opening: 375mm

Max. Mould Size: 450*200mm

Ejector Distance: 90mm

Ejector Force: 2.7Ton (26.5KN)

System Pressure: 13.7Mpa (140kgf/cm)

Oil Tank Capacity: 200L

Motor Power: 7.5KW (10HP)

Heater Power: 6.7KW

Net. Weight: 2800kg

Dimension: 2500×1100×2000mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
