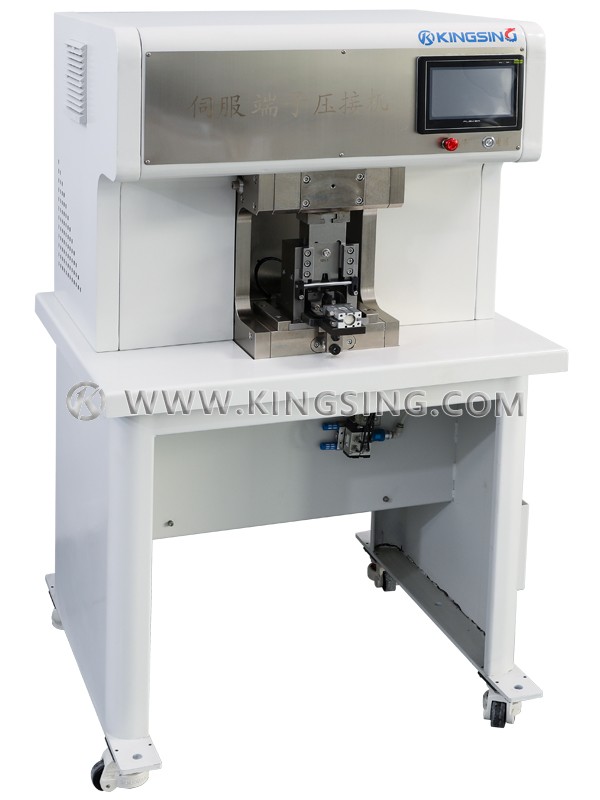

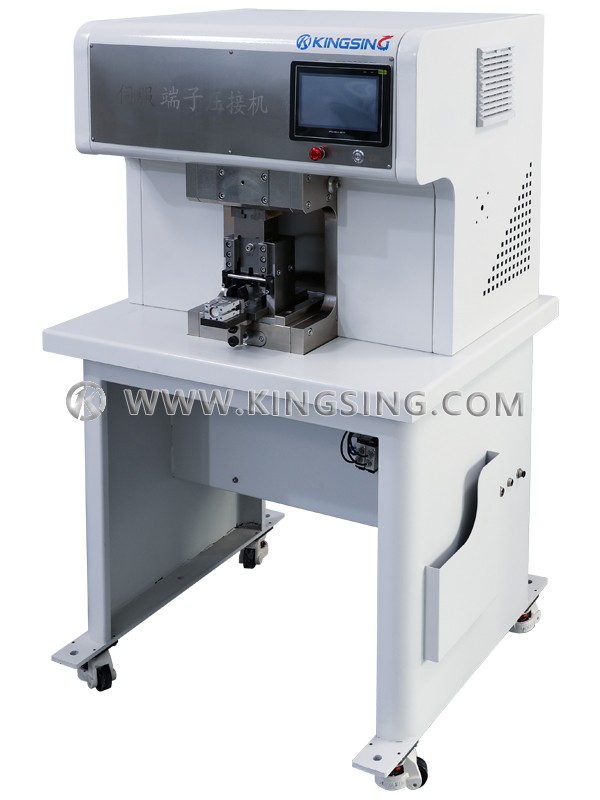

30T Servo Type Terminal Crimping Machine

  • Model:KS-T300H
  • Net. Weight:
  • Dimension:
  1. This is a large-tonnage servo-type terminal crimping machine, which can crimp wires up to 120mm2. It is often used for crimping new energy, electric vehicles, and charging pile wiring harnesses. Support a variety of crimping applicators, such as hexagonal crimping applicators, quadrilateral crimping applicators, four-point crimping applicators, B-shaped crimping applicators, etc.

  2. Color touch screen operation interface, the crimping stroke can be set directly in the program, no need to manually adjust the screw. It supports circular crimping of terminals of different heights, and can easily deal with occasions where the same terminal corresponds to multiple wire diameters. The program memory function can save the splicing parameters of different wires into the database. When changing products, the corresponding crimping parameters can be called out with one key, saving debugging time.

KINGSING

Maximum pressure: 30T

Applicable wire diameter: 10~120mm2

Crimp stroke: 40mm

Operation interface: 7-inch color touch screen

Program memory: save up to 120 groups of programs

Motor power: 2300W

Net weight: 400kg

Dimensions: 830*780*1400mm

Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
