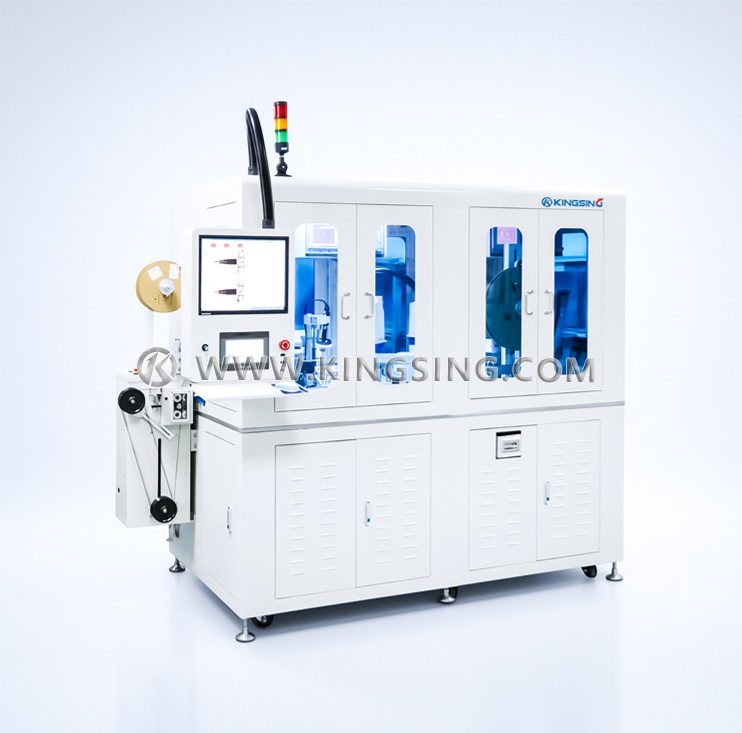

Automatic Coaxial Double Head Crimping Machine (short wire type)

  • Model：
  • Net. Weight：
  • Dimension：
Online Inquiry

At present, there is a development trend of "short", "thin" and "small" electronic products. This model is developed for the industry's maximum and shorter processing requirements for coaxial jumpers. It has been widely used in small electronic products, especially wearable devices. application, the shortest processing size is 25mm.

Download: (1)

Cutting capacity: 25mm-240mm

Processing diameter: 0.81-1.78mm

Cutting depth setting unit: 0.01mm

Working power supply: AC220V±10V

Dimensions: 2300*1600*2200mm

Power: About 3.5KW

Weight: about 1400kg

Production efficiency: 850-1050PCS/H (depending on the stripping length)

Note：

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
