Automatic Coaxial Cutting and Stripping Machine

  • Model:KS-W884
  • Net. Weight:
  • Dimension:

1、This is a fully automatic coaxial cable cutting and stripping machine specially designed for processing short wires. It is a model specially improved for processing short wires based on the W88 series. It is suitable for processing a total length of 15~200mm flexible coaxial cable. This machine uses a wire-drawing manipulator to replace the outlet wheel, and the manipulator can move to the position close to the blade, so it supports the shortest cutting length of 15mm.

2、There are 3 sets of cutters built in this machine: the rotary blade is used to cut through the sheath at the stripping position, and the cutting accuracy can reach 0.01mm. It can cut the sheath 360 degrees according to the cutting depth set in the program, so it can be precisely cut through each layer without hurting the next layer; the flat blade is used to cut off the wire, and its advantage is that the wire can be kept straight and not bent after cutting; the V-shaped blade is used to pull off the wire sheath of each layer, and both sides of the blade are even Equipped with an automatic air blowing device, which can blow away the waste wire sheath in time. Wire sheath ring cutting, wire cutting, and wire stripping are completed by 3 sets of independent cutters, and each process is carefully crafted, so it can achieve excellent stripping effect.

3、Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program can be stripped in up to 6 layers, cutting length, cutting depth of each layer and stripping length can be set in the program. The program memory function can store up to 40 sets of processing programs, and the processing parameters of different wire materials can be saved in different program numbers. When switching wire materials, the corresponding processing parameters can be called out with one key.

4、The wire feeding by the pulley greatly increases the contact area between the wire and the feeding wheel. The pressure of the wire feeding wheel can be set in the program without any mechanical adjustment. Different values can be set separately for the wire feeding pressure and the wire stripping pressure, so the processing accuracy can be guaranteed It does not crush the wire, and there is no indentation on the surface of the wire sheath.

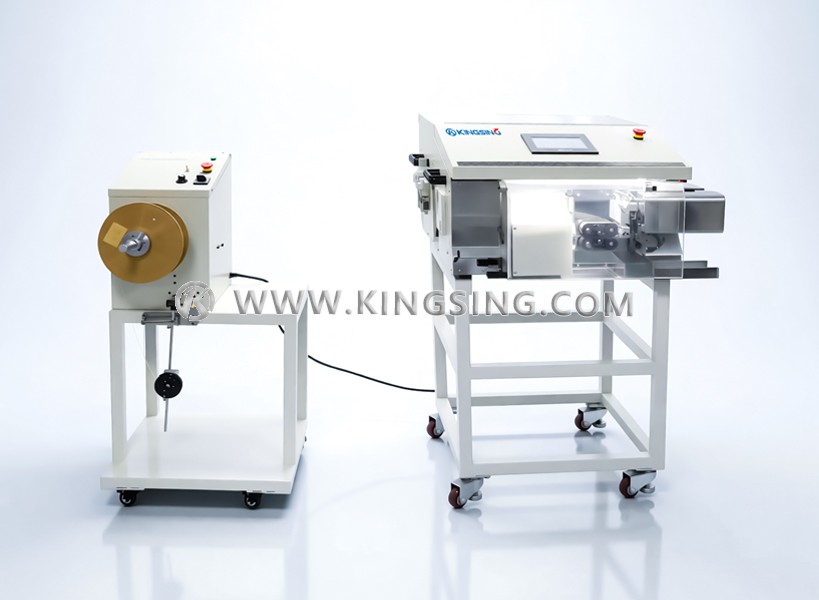

5、This machine is also equipped with an automatic wire feeding machine suitable for semi-flexible coaxial cables. It can be linked with the wire stripping machine. It automatically starts the wire feeding when the wire is needed, and automatically stops when the wire is not needed. The wire feeding machine can maintain the stability of the wire feeding tension, which is beneficial to improve the wire feeding accuracy and operation stability.

Applicable wire diameter: Φ1.0~6.0mm

Cutting length: 15~200mm

Cutting accuracy: ±L*2‰ (L=cutting length)

Maximum stripping length: thread head 50mm, thread tail 30mm

Stripping accuracy: ±0.2mm

Program accuracy unit: 0.01mm

Maximum stripping layers: 6 layers

Program memory function: up to 40 groups of programs can be saved

Production efficiency: 400~700 pieces/hour

Working voltage: AC 220V 50/60Hz

Rated power: 800W

Net weight: 110kg

Dimensions: 790*730*400mm (excluding wire feeder)


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
