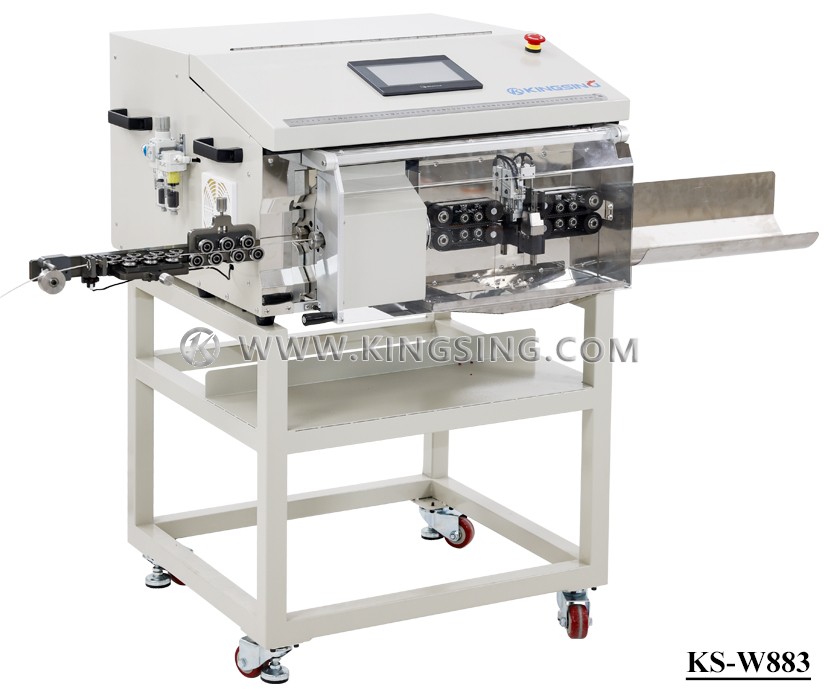

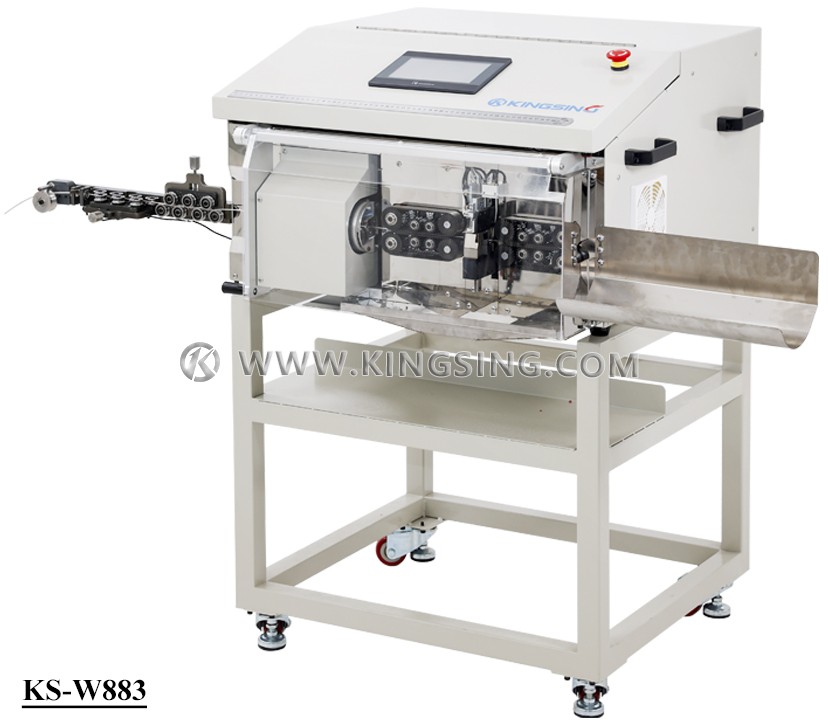

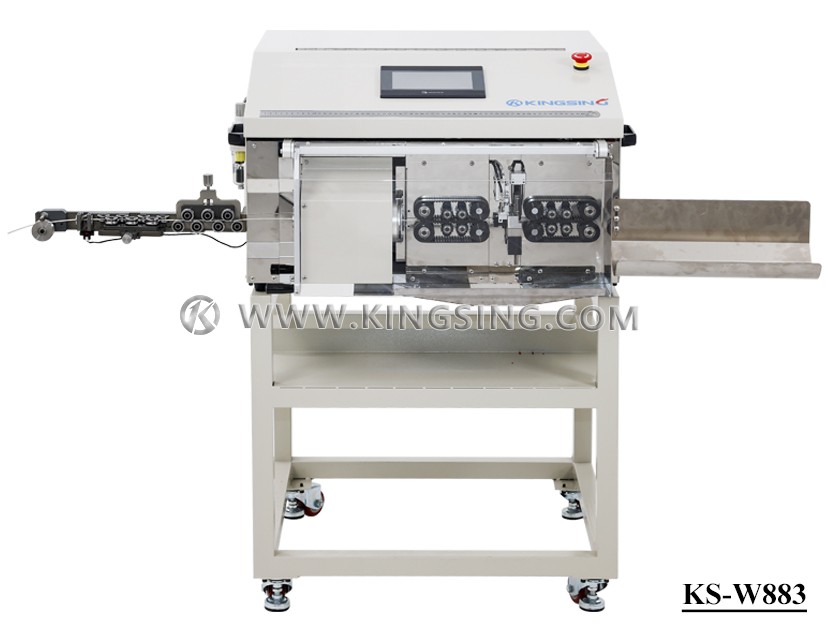

Fully Automatic Coaxial Cable Cut and Strip Machine

  • Model:KS-W88 series
  • Net. Weight:
  • Dimension:

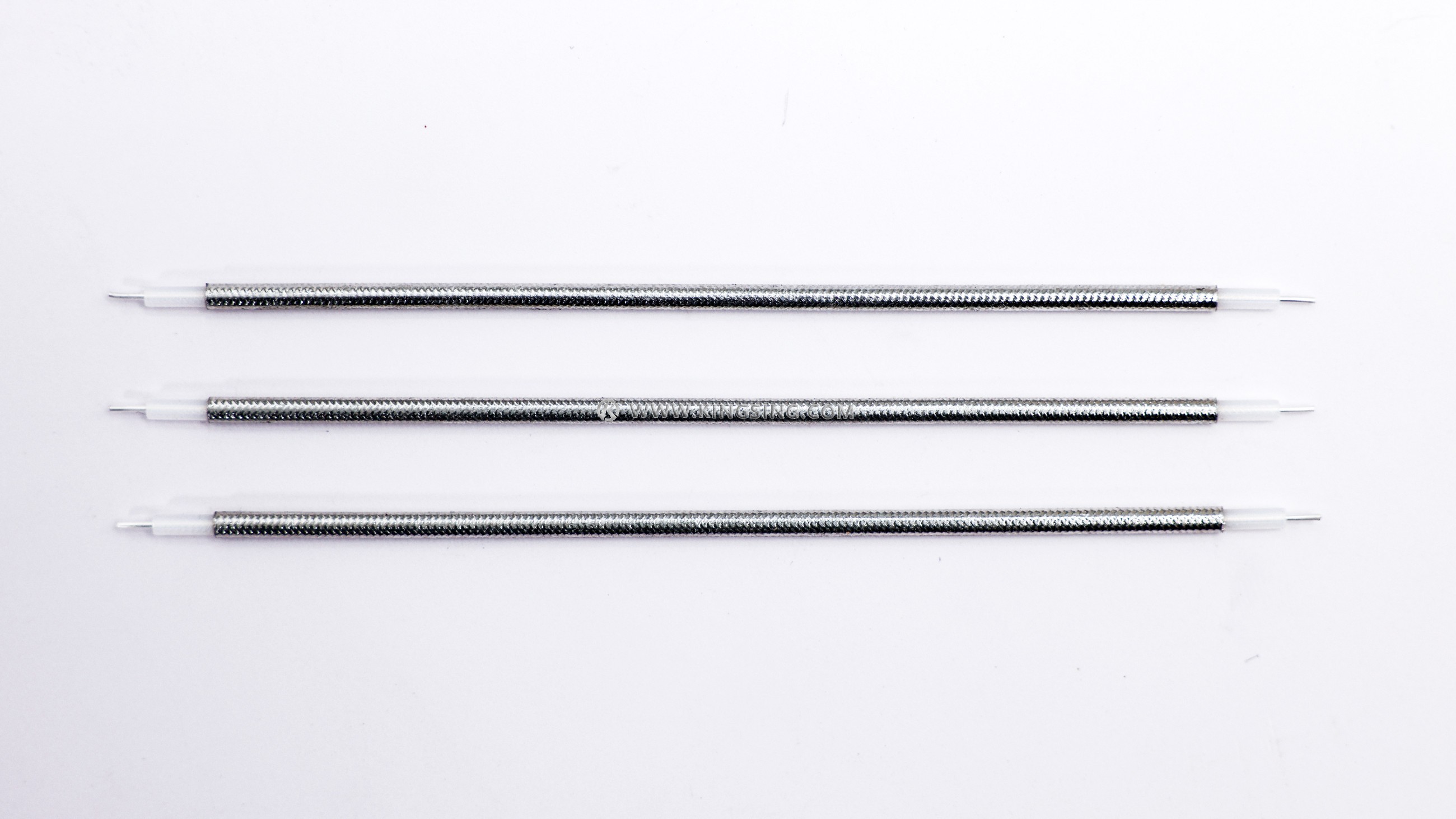

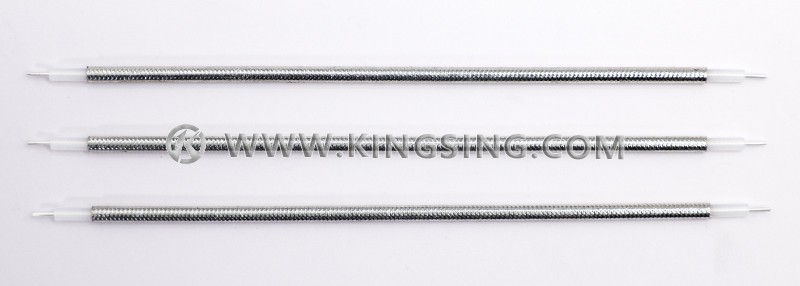

1、This is a fully automatic coaxial wire cutting and stripping machine, mainly used for processing semi-flexible coaxial cables. There are 3 sets of cutters built in this machine: the rotary blade is used to cut through the sheath at the stripping position, and the cutting accuracy can reach 0.01mm. It can cut the sheath 360 degrees according to the cutting depth set in the program, so it can be precisely cut through each layer without hurting the next layer; the flat blade is used to cut off the wire, and its advantage is that the wire can be kept straight and not bent after cutting; the V-shaped blade is used to pull off the wire sheath of each layer, and both sides of the blade are even equipped with an automatic air blowing device, which can blow away the waste wire sheath in time. Wire sheath ring cutting, wire cutting, and wire stripping are completed by 3 sets of independent cutters. Each process is carefully crafted, so it can achieve excellent wire stripping effect.

2、Color touch screen operation interface, parameter setting is intuitive and easy to understand, the program can be stripped in up to 6 layers, cutting length, cutting depth of each layer and stripping length can be set in the program. The program memory function can store up to 40 sets of processing programs, and the processing parameters of different wire materials can be saved in different program numbers. When switching wire materials, the corresponding processing parameters can be called out with one key.

3、The wire feeding by the pulley greatly increases the contact area between the wire and the feeding wheel. The pressure of the wire feeding wheel can be set in the program without any mechanical adjustment. Different values can be set separately for the wire feeding pressure and the wire stripping pressure, so the processing accuracy can be guaranteed It does not crush the wire, and there is no indentation on the surface of the wire sheath.

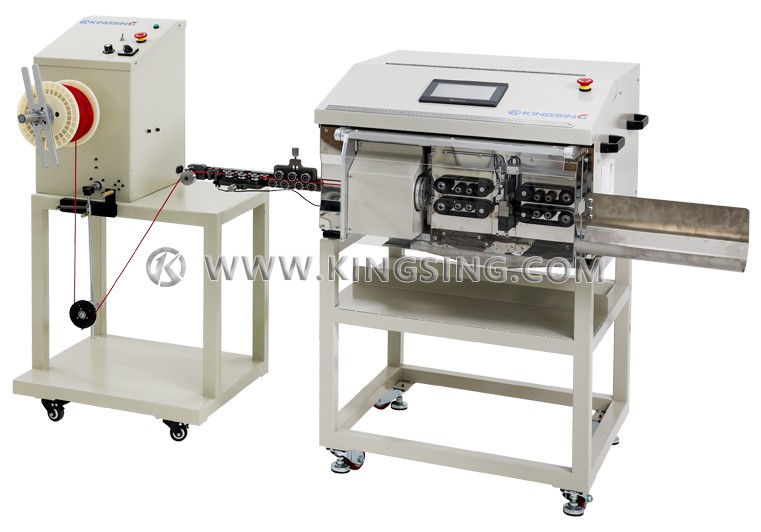

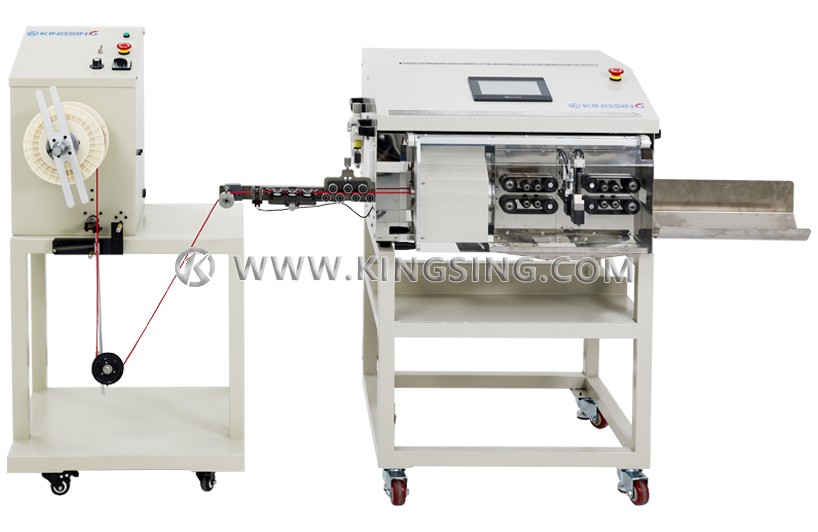

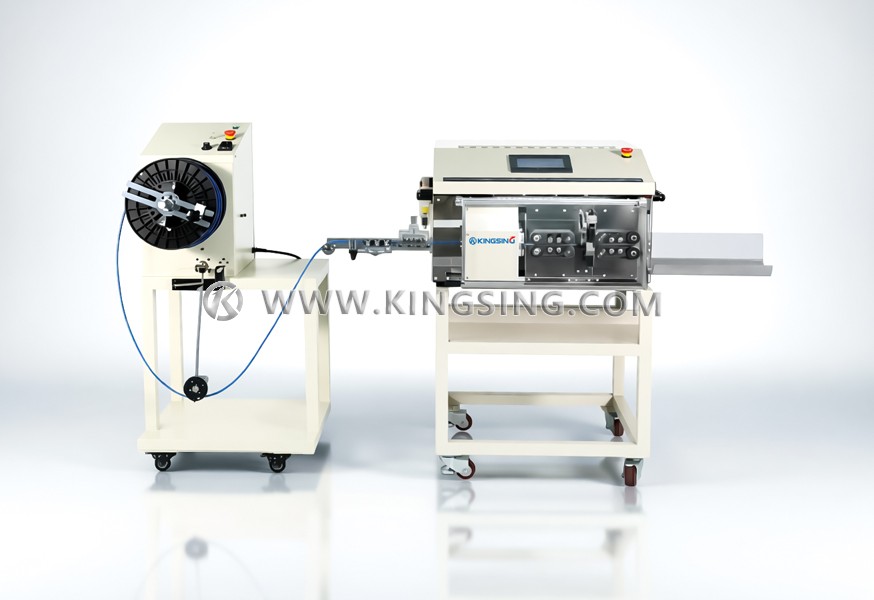

4、This machine is also equipped with an automatic wire feeding machine suitable for semi-flexible coaxial cables. It can be linked with the wire stripping machine. It automatically starts the wire feeding when the wire is needed, and automatically stops when the wire is not needed. The wire feeding machine can maintain the stability of the wire feeding tension, which is beneficial to improve the wire feeding accuracy and operation stability.

Download: (1)

Model selection: This series includes 2 sub-models, W882is an economical model with a processing accuracy of 0.15mm; W883 has higher precision, and the stripping accuracy can reach 0.1mm. The processing capabilities of these two models are basically the same, but the hardware configuration and processing accuracy are slightly different.

Stripping accuracy±0.15mm±0.1mm

Applicable wire diameter: Φ1.0~6.0mm

Max stripping length: wire head 100mm, wire tail 45mm

Cutting length: 50~9999mm

Program setting accuracy: 0.01mm

Cutting accuracy: ±L*1‰ (L=cutting length)

Max stripping layers: 6 layers

Program memory function: save up to 40 groups of programs

Production efficiency: 400~800pcs/hour

Working voltage: AC 220/110V 50/60Hz

Rated power: 800W

Net weight: 120kg

Dimensions: 790*730*400mm (excluding wire feeder)


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
