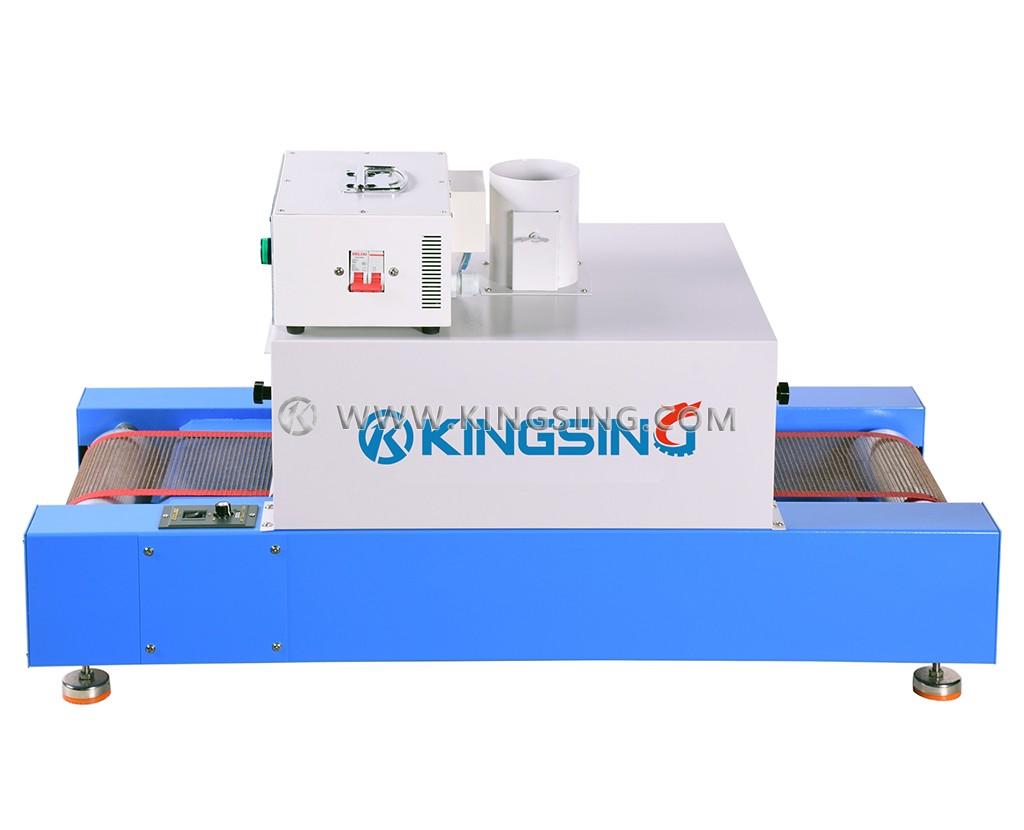

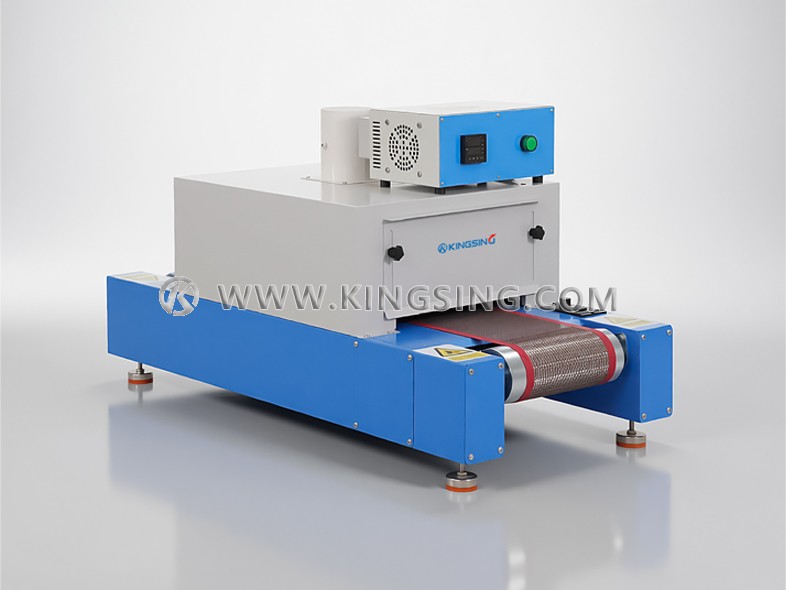

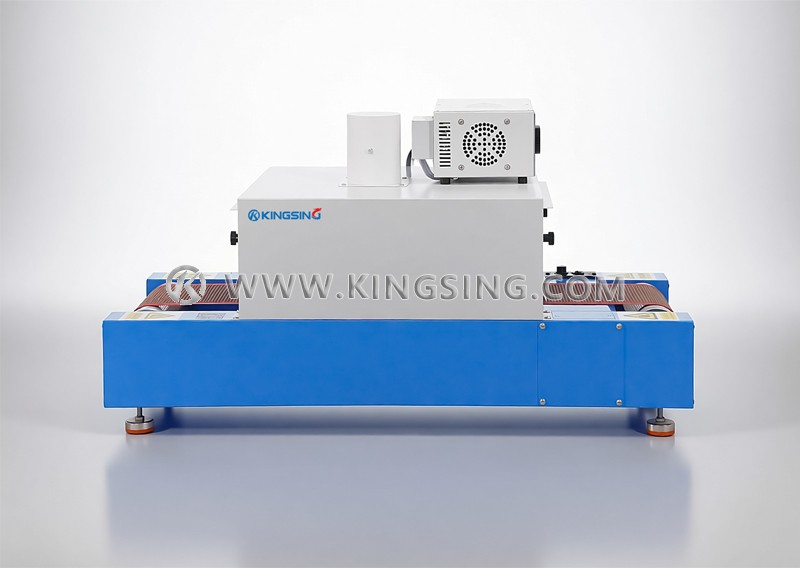

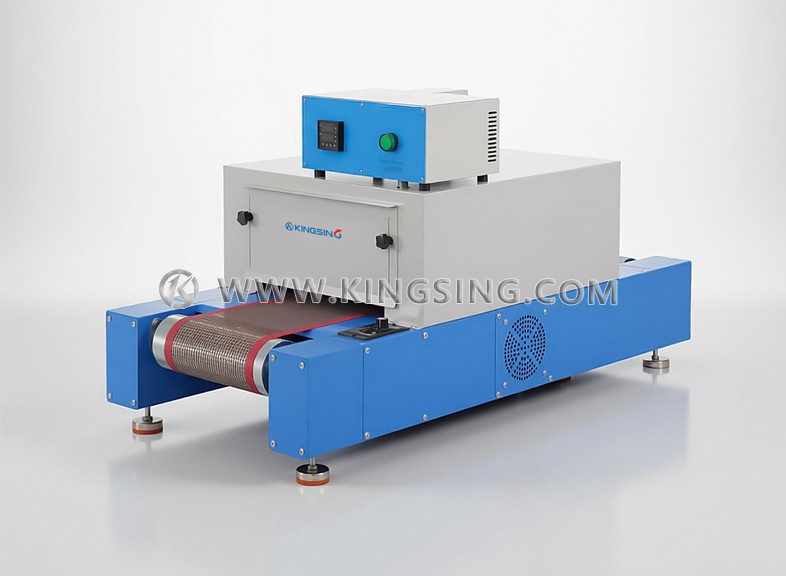

Heat Shrink Tubing Infrared Heat Tunnel

  • Model：KS-H200D
  • Net. Weight：39kg
  • Dimension：1020×470×560mm
Online Inquiry

  1. This is an economical heat shrinkable tube heat tunnel, which is widely used in the wire harness processing industry. It adopts infrared heating tube for heating, the heating temperature can be adjusted freely!

    KINGSINGKINGSING

  2. The interior of the heating zone is filled with thermal insulation materials to isolate the internal and external temperatures, and there are heat reflective materials inside, so the heat shrinkable tube is heated evenly.

  3. The machine is equipped with a conveyor belt, it allows almost unlimited length of heat shrink tubing, and the height of the inlet and outlet can be adjusted according to the size of your product. The operator only needs to throw the wires on the conveyor belt, then the wire can be sent to the heating area for heating, it helps to keep the operator away from the risk of scalding.

  4. It is suitable for heating various types of heat-shrinkable tubes, such as: PE heat-shrinkable tubes, PVC heat-shrinkable tubes, double-walled heat-shrinkable tubes with glue, POF heat-shrinkable films, etc. This machine adopts the overall heating method, and the whole product will be heated during the process.

Download: (1) (2)

Max. Temperature: 200℃

Heating Area: 520×460mm

Conveyor Belt Width: 200mm

Conveyor Belt Speed: 0.5~3m/min

Max. Tube OD: 18mm

Max. Tube Length: 200mm

Power Rating: 1860W

Power Supply: 220V 50/60Hz

Net. Weight: 39kg

Dimension: 1020×470×560mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
