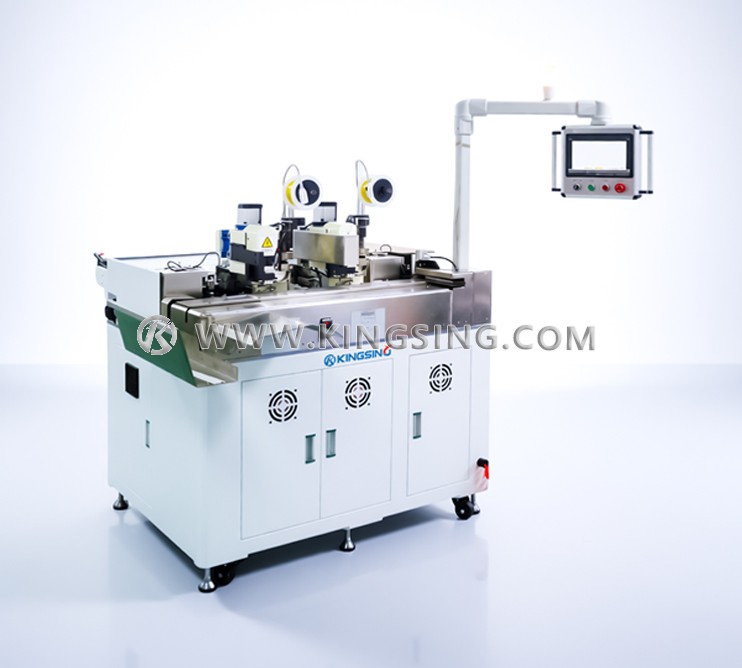

Resistance Wire Pin Double Wire Splicing Machine

  • Model:KS-C200L
  • Net. Weight:
  • Dimension:
  1. This machine is specially designed for the splicing of NTC resistor pins and wires. The pins at both ends of the resistance wire can be spliced with two wires respectively. Function in one, in addition, it can also be equipped with the function of twisting and tinning at the end of the wire.

  2. The resistance wire can be installed in a coil or in bulk. The bulk resistance wire can be automatically fed through the vibrating disc, and the resistance wire pin can be automatically cut to the required length. The pins on both sides of the NTC resistor are spliced by 2 independent copper tape machines, and the 2 sets of wires are fed from the front and back of the machine respectively. The wire diameters of the two wires can be different, and the splicing height can be set separately for the 2 copper tape machines.

  3. The copper tape splicing mechanism is driven by a high-precision servo motor, and the copper tape machine is integrally formed with ductile iron. The whole machine has strong rigidity and high crimping precision. In addition, a terminal pressure monitor can be selected to monitor the change of the pressure curve of each crimp in real time. When the pressure is abnormal, it can automatically alarm and stop to ensure product quality.

  4. Splicing wires with copper tapeps is cheaper than traditional soldering or crimping wires, economical and environmentally friendly. There is no waste in the splicing process of copper tapes. The copper tapes have been treated with special texture, and the products after splicing have strong tensile force. , The quality is stable and reliable. With its excellent performance, this machine has become a sharp weapon in the NTC resistance wire splicing industry.


Maximum pressure: 2T

Applicable wire: AWG26~22

Cutting length: ≥45mm

Stripping length: 0~16mm

Cutting accuracy: ±(0.1+L*2‰) L=cutting length

Copper tape width: 1~8mm

Copper tape thickness: 0.2~0.5mm

Crimping accuracy: ±0.05mm

Production efficiency: 700~1200 pieces/hour

Operation interface: color touch screen

Optional functions: twisted wire, dip tin, pressure monitor, safety shield, etc.

Working voltage: 220V 50/60Hz

Net weight: 800kg

Dimensions: 1650*950*1700mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
