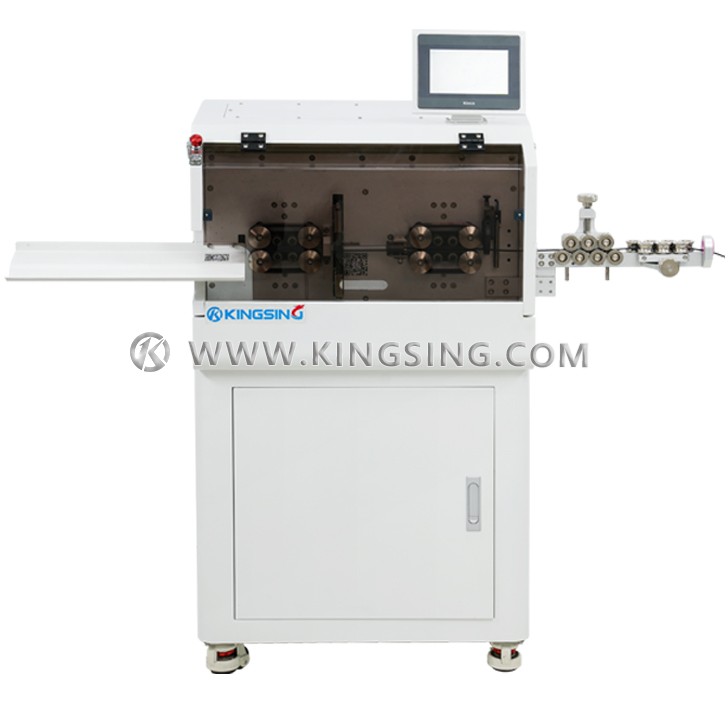

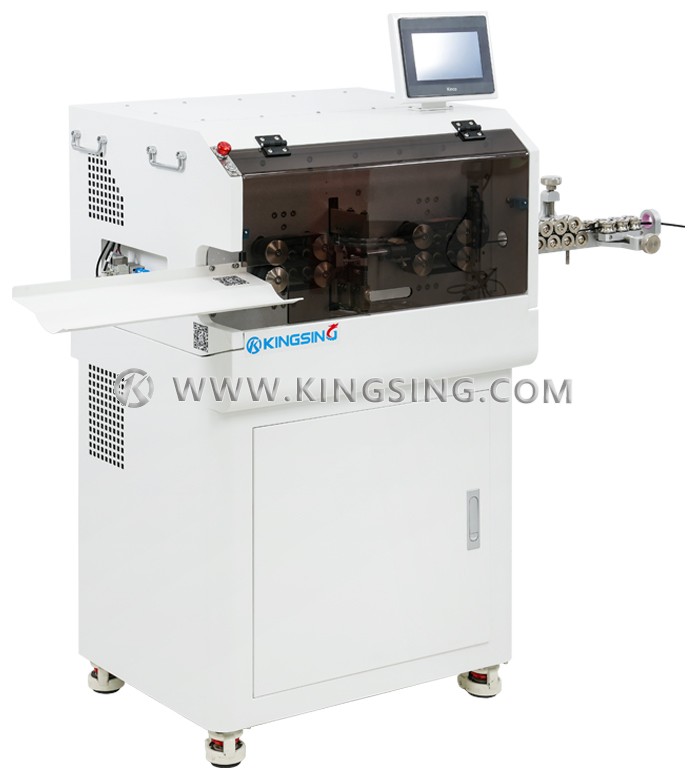

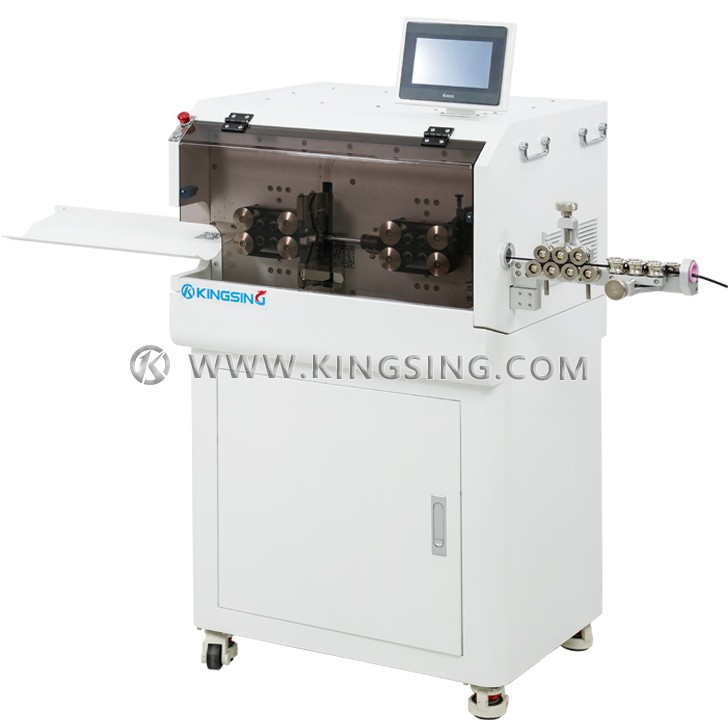

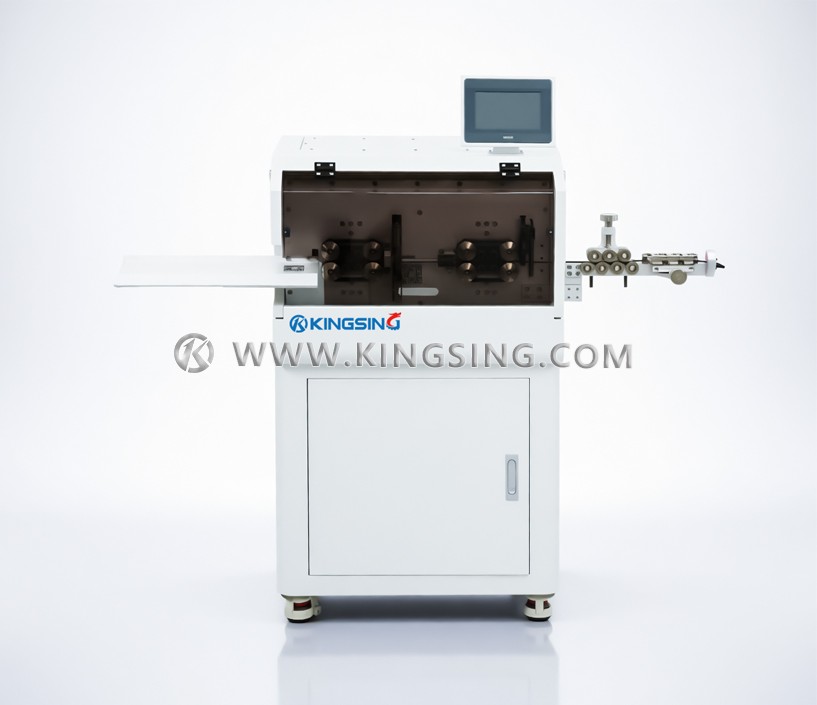

Wire Cutting and Stripping Machine

  • Model:KS-W11 Series
  • Wire Size:
  • Net. Weight:
  • Dimension:
  1. This series of wire stripping machines includes 8 sub-models (see technical parameters for details). The belt feeding is used to replace the traditional roller feeding, which greatly increases the contact area with the wire. While increasing the tension and enhancing the stripping ability, it can also reduce the pressure and reduce the damage to the surface of the wire sheath, and there is no indentation on the surface of the wire sheath. The cutter holder is driven by a high-precision servo motor with fast speed and strong power.

  2. The upper and lower sets of wire feeding wheels are driven by positive and negative screw rods, which can be opened and closed at the same time. When processing wires of different thicknesses, the centerline position of the wires can always be kept unchanged. The wire is always aligned with the center of the knife edge, which can effectively prevent the stripping edge from tilting. The pressure of the wire feeding wheel can be set directly in the program, no need to manually adjust the screw, it is very convenient to switch between different wire diameters.

  3. This machine also has the function of automatic lifting wheel and jump guide. The automatic lifting wheel means that the outlet wheel can automatically open to avoid when stripping the wire end. The jump guide function means that the wire guide guide is automatically lifted to avoid when stripping the end , greatly increasing the stripping length range.

  4. The program memory function can store the processing parameters of different wires into different program numbers, and the corresponding program can be called out with one key when processing the wire again. One machine can complete the processing of various wires, which is very versatile.

  5. Support non-standard customization, we have strong research and development capabilities, and can customize special functions according to customer needs. Common optional features include:

  • Customized blades and conduits with special shapes are used to process flat sheathed wires, double parallel wires, flat wires and other wires. Flat sheathed wires can be stripped from the inner and outer layers.

  • A splitting fixture can be added to realize automatic cutting and stripping of the cable and splitting at both ends, and supports two splitting modes: cutting and stamping;

  • A scribing jig can be added. For wires with a long stripping length and a tight sheath, the scribing jig can be used to split the wire sheath on both sides to reduce the stripping resistance.

  • Add inkjet printers, wire number hot stamping machines and other equipment to realize coding while stripping wires.

  • Install the wire-taking manipulator and conveyor belt to ensure that the wire is put into the receiving tray straight and neatly when processing long wires.

  • With the addition of an automatic winding machine, the processed wire can be automatically wound into rolls for easy collection.

  • Optional computer industrial control system (Windows operation interface), supports MES system and document import, remote order dispatch, automatic coding, etc.

Download: (1)
ModelApplicable Core AreaHardware ConfigurationFeatures

KS-W1110

(Processing two wires of 10mm² together.)

1.0 ~ 10.0mm²

AWG18~7

Cutter holder servo

It can strip two 10mm² wires at the same time, and the speed is fast

KS-W1116

(16 mm2 high-speed model)

1.0 ~ 16.0mm²

AWG18~5

Cutter holder servo

Single wire high-speed type, fast

KS-W1130

(30 mm2 thick wire model)

1.0 ~ 30.0mm²

AWG18~2

Cutter holder servo

Standard thick wire type, the maximum can be processed 30mm² wire

KS-W1130S

(30 mm2 high-end model )

1.0 ~ 30.0mm²

AWG18~2

Cutter holder servo

Feed servo

Cutter motor and feeding wheel motor both adopt servo motor

KS-W1130A

(The manipulator takes the wire model)

1.0 ~ 30.0mm²

AWG18~2

Cutter holder servoBuilt-in take-up manipulator, easy to increase the receiving conveyor belt

KS-W1130M

(Middle stripping model )

1.0 ~ 30.0mm²

AWG18~2

Cutter holder servo

Equipped with middle stripping and scribing device, supporting middle window stripping

KS-W1150M

(50mm² middle stripping model)

1.0~50mm²

AWG18~1/0

Cutter holder servoHigh-power medium stripping and scribing, supporting middle window stripping

KS-W1150B

(50mm² enlarged model)

1.0~50mm²

AWG18~1/0

Cutter holder servoLarger function, can process 50mm² wire at most


Full stripping length range: thread head 0~120mm, thread tail 0~80mm

Maximum half-stripped length: wire head 1000mm, wire tail 350mm (according to wire material)

Maximum cutting length: 100m (longer can be customized)

Operation interface: 7-inch color touch screen

Program saving: up to 100 groups of programs can be stored

Cutting accuracy: 0.002*L (L refers to the cutting length)

Working voltage: 220V 50Hz

Rated power: 1000W


Note:

  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
