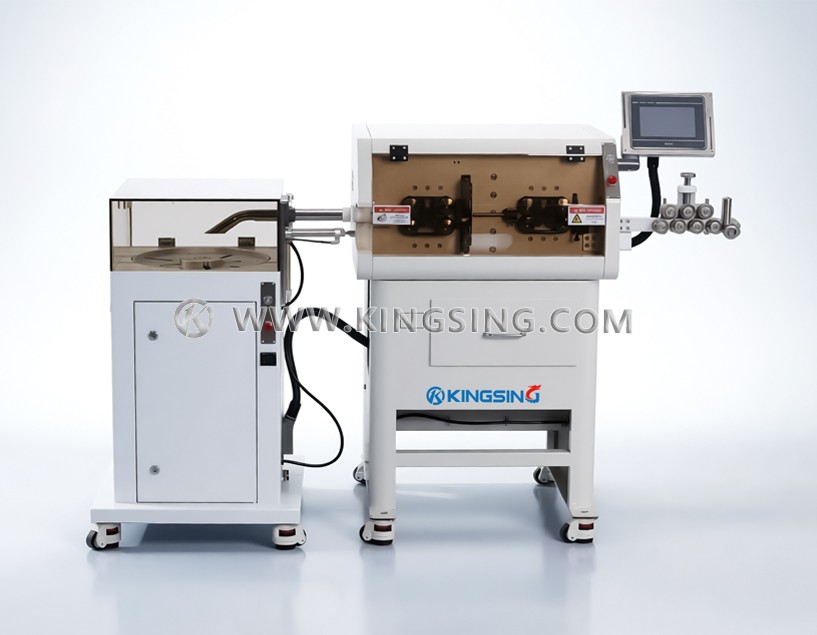

Automatic Wire Cutting Stripping and Winding Machine

  • Model:KS-W1020R
  • Wire Size:
  • Net. Weight:
  • Dimension:
  1. This is a wire stripping machine with automatic winding function, which can automatically wind the processed wire into a circle, usually used for processing multi-core sheathed wire. The belt feeding is used to replace the traditional roller feeding, which greatly increases the contact area with the wire. While increasing the tension and enhancing the stripping ability, it can also reduce the pressure and reduce the damage to the surface of the wire sheath, and there is no indentation on the surface of the wire sheath. The blade holder is driven by a high-precision servo motor, which is fast and powerful.

  2. The upper and lower sets of wire feeding wheels are driven by positive and negative screw rods, which can be opened and closed at the same time. When processing wires of different thicknesses, the position of the center line of the wires can always be kept unchanged, and the wires are always aligned with the center of the blade opening, which can effectively prevent the stripping opening from tilting. The pressure of the wire feeding wheel can be set directly in the program, no need to manually adjust the screw, it is very convenient to switch between different wire diameters.

  3. This machine also has the function of automatic lifting wheel and jump guide. The automatic lifting wheel means that the outlet wheel can be automatically opened for avoidance when stripping the wire head, and the jump guide function means that the wire inlet conduit is automatically lifted for avoidance when stripping the tail of the wire, which greatly increases the stripping length range.

  4. The program memory function can store the processing parameters of different wire materials in different program numbers, and can save up to 100 groups of programs. When the wire is processed again, the corresponding program can be called out with one key, and one machine can complete the processing of various types of wire, which is very versatile.

  5. Support non-standard customization, we have strong research and development capabilities, and can customize special functions according to customer needs. Common optional features include:

  • Install a safety shield, and automatically alarm and stop after opening the shield.

  • A scribing jig can be added. For wires with a long stripping length and a tight sheath, the scribing jig can be used to split the wire sheath on both sides to reduce the stripping resistance.

  • Add inkjet printers, wire number hot stamping machines and other equipment to realize coding while stripping wires.

  • Optional computer industrial control system (Windows operation interface), supports MES system and document import, remote order dispatch, automatic coding, etc.

Download: (1)

Applicable wire core area: 1~30mm2 (AWG18~2)

Full stripping length range: wire head 0~120mm, wire tail 0~80mm

Maximum half-stripping length: wire head 1000mm, wire tail 350mm

Maximum cutting length: 100m (longer can be customized)

Operation interface: 7-inch color touch screen

Program saving: up to 100 groups of programs can be stored

Machine Appearance: Various styles are available

Cutting accuracy: 0.002*L (L refers to the length of the cutting)

Working voltage: 220V 50Hz

Rated power: 1000W

Optional functions: stripping and scribing wires, inkjet printer, computer industrial control system, etc.


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
