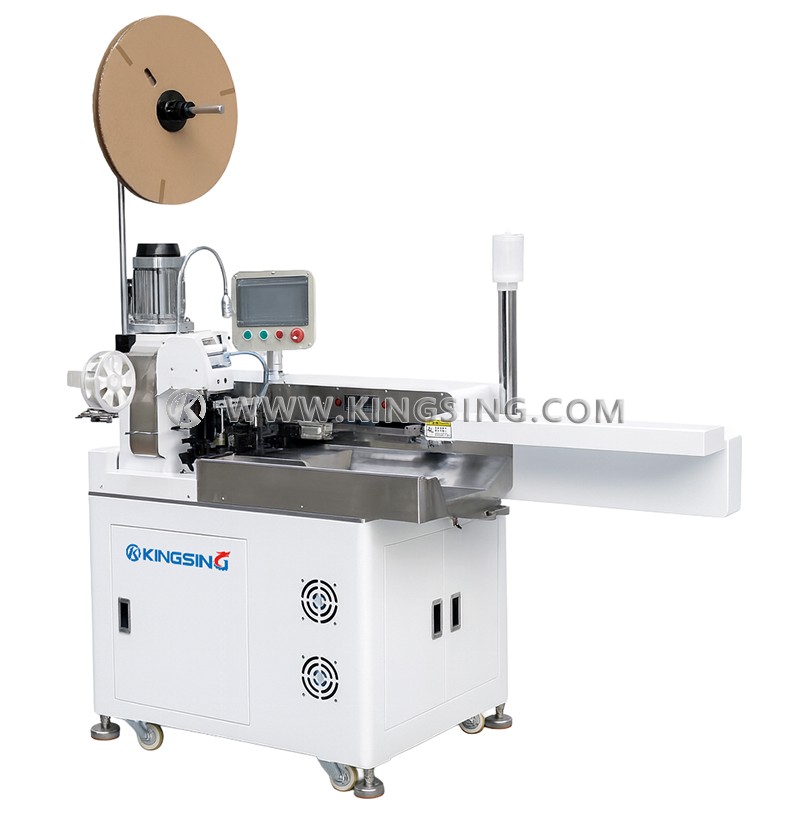

This multifunctional dual-end tinning and crimping machine is an economical model that offers outstanding cost-performance while maintaining stable and reliable operation. By integrating the functions of two separate systems into one compact unit, it supports both dual-end wire tinning and hybrid processing with one-end tinning and the other-end crimping, giving manufacturers the flexibility to adapt to diverse production needs without changing equipment.

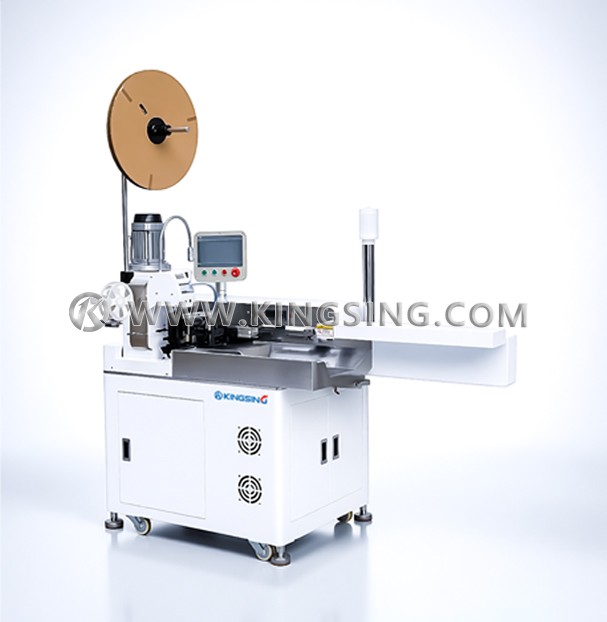

The product line includes two models to meet different requirements: one for single wires, capable of processing up to 5 wires at the same time to greatly improve efficiency, and another for ribbon cables, equipped with an integrated separation mold that enables precise automatic two-end splitting before tinning and crimping operations.
Compared with conventional setups that require two separate machines, this all-in-one solution saves floor space, reduces investment, and delivers exceptional cost-effectiveness. Its modular structure, easy operation, and high reliability make it an ideal choice for industries such as automotive, electronics, and power cable production lines.
Designed with versatility, efficiency, and durability in mind, this compact yet powerful machine helps manufacturers maximize output while maintaining consistent quality in both tinning and crimping processes.
| Model | Processing Effect | Description |
|---|---|---|
| KS-T1069S |  | Crimping + Tinning |
 | Both Ends Tinning | |
| KS-T1069P |  | Crimping + Tinning |
 | Both Ends Tinning |
| Model | KS-T1069S | KS-T1069P |
| Applicable Wire | Electronic single wire | Flat ribbon cable (2-20 pin) |
| Number of Input Wires | 1 - 8 | 1-4 |
| The specific number of input wires is customized based on wire diameter and other factors. | ||
| Splitting Length | -- | 27~35mm |
| Production Efficiency | 4000~5000 pcs/hour | 800-1000pcs/hour |
| Main Functions | (1) Double-ended stripping twisting and tinning (2) One-end crimping, other-end twisting and tinning | |
| Applicable Wire Size | AWG28~AWG18 | |
| Cutting Length | 60~1000mm (customizable) | |
| Cutting Accuracy | ±(0.5+L*2‰) mm L=cutting length | |
| Stripping Length | ≤10mm (can be customized) | |
| Tinning Length | ≤10mm | |
| Maximum Pressure | 2T (customizable) | |
| Crimp Stroke | 30mm (40mm can be customized) | |
| Wire Feeding Method | Pull wire clip | |
| Drive Method | Built-in 3 sets of servo motors and 4 sets of step motors | |
| Operation Interface | Color touch screen | |
| Air Pressure Requirement | 0.5~0.7Mpa | |
| Working Voltage | 220V 50/60Hz (customizable) | |
| Net Weight | 450kg | |
| Dimensions | 1900*800*1500mm | |
