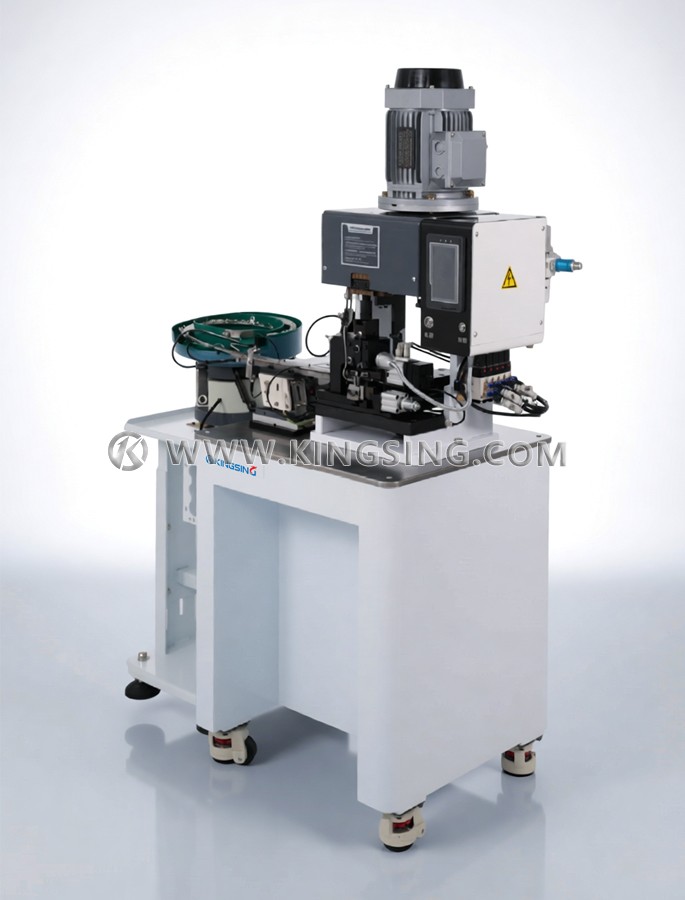

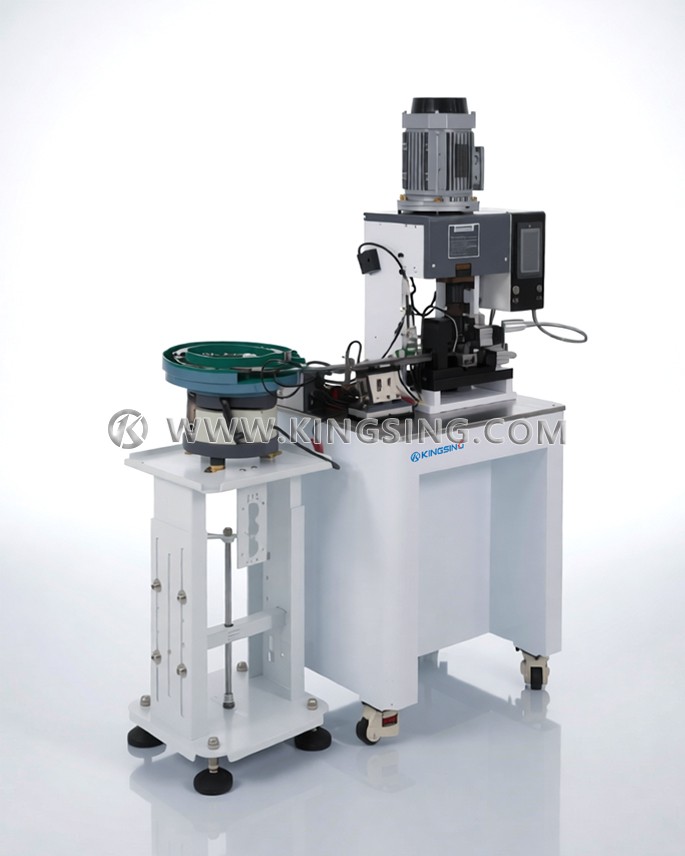

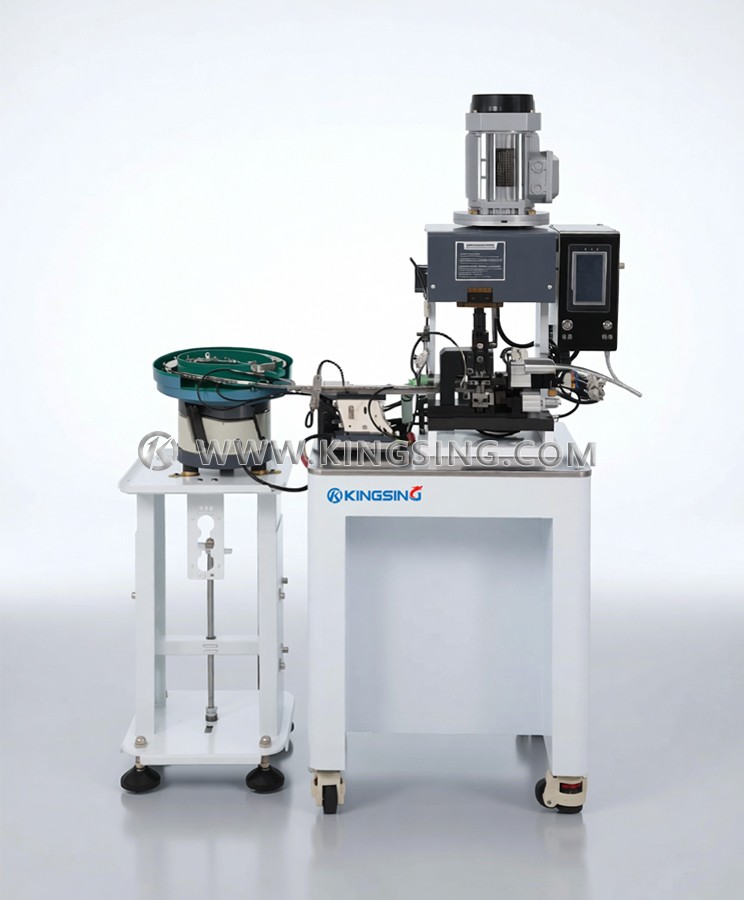

Semi-Automatic Wire Stripping & Crimping Machine

  • Model：KS-T903SV
  • Net. Weight：
  • Dimension：
Online Inquiry

This semi-automatic wire stripping and crimping machine is specifically designed for processing bulk terminals with automatic vibration disc feeding system. The machine eliminates the need for pre-stripping wires, as operators simply position the wire end into the crimping position, and the machine automatically strips the wire before crimping the terminal.

By combining stripping and crimping processes into a single operation, this machine effectively reduces labor costs while improving product consistency and manufacturing efficiency. The integrated workflow ensures precise terminal attachment with minimal operator intervention.

Equipped with a frequency conversion motor for precise control, the machine delivers low noise operation, reduced power consumption, high-speed processing, and exceptional accuracy. The pneumatic-driven stripping action allows for accurate cutting depth adjustment, ensuring precise stripping length and crimping positioning.

Download: (1)
Applicable Wire SizeAWG 12–30 (customizable)
Stripping Length1–10 mm
Error Range0.05–0.1 mm
Crimping Force3.0 T (customizable)
Mold Stroke35 mm
Applicable TerminalsBulk terminals
Production Efficiency1000–2000 pieces/hour
Air Pressure0.4–0.6 Mpa
Working Voltage200–240 V 50/60 Hz (customizable)
Rated Power1500 W
Optional Configurationterminal crimp force monitor, servo crimping station (programmable crimping height), full safety enclosure (optional door-mounted emergency stop), customized solutions available upon request
Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
