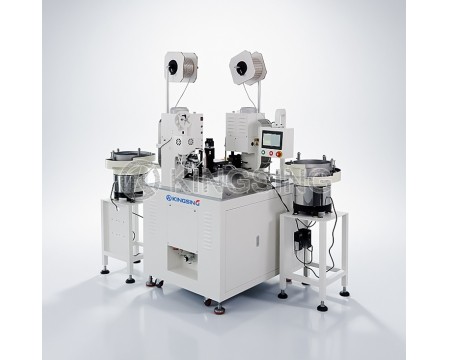

  1. Automatic Wire Crimping & Tube-Marking Inserting Machine
  2. Fully Automatic Wire Processing and Marking Machine
  3. Automatic 2-sided Number Tube Insertion Machine
  4. Automatic Wire Crimping and Pair Twisting Machine
  5. High-precision Automatic Wire Crimping Machine
  6. Fully Automated IDC Connector Assembly Machine
  7. Wire Harness Heat Shrink Tube Inserting and Heating Machine
  8. Heat Shrink Tubing Processing Equipment
  9. Heat Shrink Tube Processing Machine
  10. Double Station Heat Shrink Tube Processing Equipment
  1. Home page
  2. Products
  3. Crimping Applicators
  4. Chinese 30mm Stroke

Pneumatic End Feed Terminal Crimp Applicator

  • Model：KS-CP30R
  • Net. Weight：
  • Dimension：
Online Inquiry

The terminal crimp applicator with pneumatic feed system has been developed especially for processing terminals linked "end to end" rolled over a reel. It is designed with an indexed rotary head for reproducible, independent crimp height adjustment of both the wire and insulation.

Terminal Type: rear feed reeled terminals
Terminal Pitch: Max. 40mm
Terminal Thickness: 1.2mm
Feed Type: pneumatic feed
Wire Cross Section: 10mm2 (AWG 8)
Press Stroke: 30mm
Crimping Height (Shut Height): 119.7mm
Crimp Height Adjustment: 0.01mm resolution, 2.7mm range
Net. Weight: 4.5Kg
Dimension: 225×85×165mm

Important Notes:

  1. Product Updates: Images and videos displayed may differ from current products due to ongoing design improvements and updates. The actual delivered product shall prevail in case of any discrepancy.

  2. Optional Accessories: Some accessories and components shown in product photos/videos are optional configurations and not included in the standard package. Please order these items separately if required.

  3. Technical Parameters: Specifications are for reference only. Equipment suitability depends on actual working conditions, not just parameter comparison. Please consult us to confirm compatibility for your specific application.
