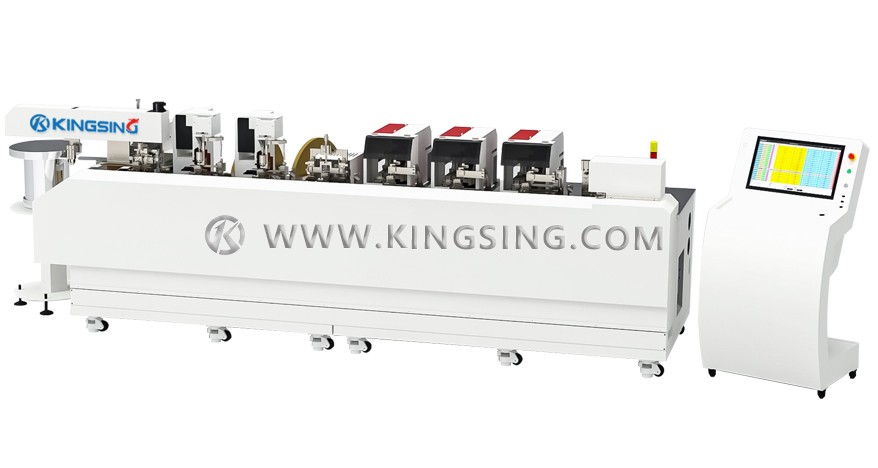

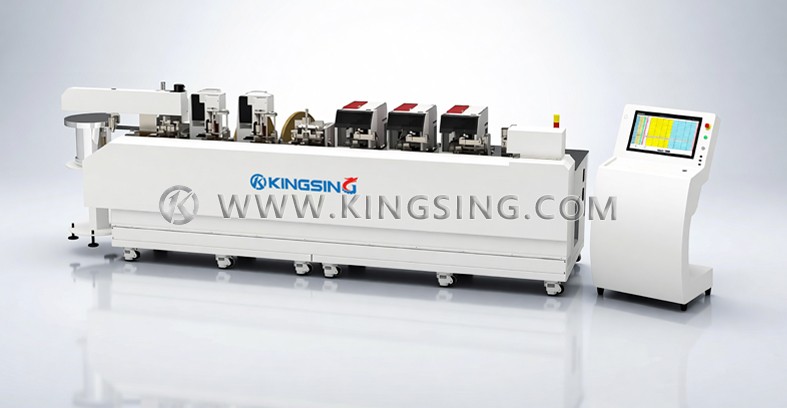

Multi-core Sheathed Wires Automatic Tube Insertion, Terminal Crimping, and Housing Insertion Machine

  • Model:
  • Net. Weight:
  • Dimension:
  • The sheathed wires are manually laid out according to the wire color, using a vertical annular circulating chain;

  • The housing is automatically loaded by a vibrating plate, and the porous terminals are inserted at one time;

  • Multiple sets of single-tube coding machines are equipped according to the number of core wires, and all core wires are inserted into the number tube simultaneously. Automatically print, cut and insert number tubes, and different wire colors can automatically insert different number tubes accordingly;

  • The terminal crimping uses a servo crimping machine, all crimping parameters are automatically switched, and the crimping quality is monitored in real time;

  • The supporting data conversion software is seamlessly connected to the production work orders generated by third-party automatic wiring software. Work orders can be dispatched remotely through the internal network and automatically and quickly converted into production instructions.

  • The MES interface is reserved to capture equipment operation and production data in real time (such as total production volume, operating efficiency, defective rate, material usage, downtime, etc.).

Power supply: AC220V 50HZ single phase

Processing range: 0.75mm2, 1.0mm2, 1.5mm2, 2.0mm2 multi-core sheathed wire

Production efficiency: ≥8 sets per minute (based on 3-core sheathed wire)

Terminal type: Chain with open terminal (special terminals can be customized)

Wire length: The raw material is stripped sheathed wire, the stripped length is ≥75mm

Stripping length: 1~8mm

Number tube length: 10-38mm, more than 38mm needs to be customized

Number management identification: realize conventional half-width identification within 36 characters

Housing loading: three-axis robotic arm + direct vibration

Take-up wire: Circular conveyor belt take-up

Air pressure: about 0.5-07Mpa

Dimensions: 5500 X4000 X1600mm

Others: Optional terminal pressure management device and terminal visual inspection system

Detection device: Detection of wire presence, number tube presence detection, ribbon presence detection, ribbon breakage detection, terminal crimp detection


  • The above specifications are for reference only. In the case of extremely hard, tough wires, processing may not be possible even within the cross section range. In case of doubt, KINGSING will be happy to provide processing samples of your wires.

  • Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
